Tractor · 1914Unverified

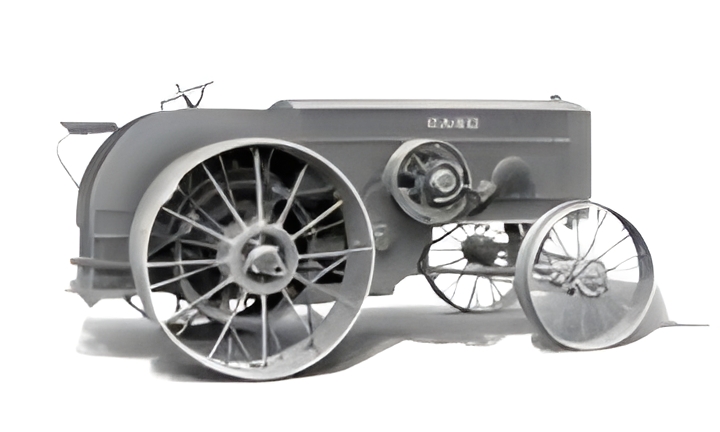

J.I. Case 12-25

J.I. Case 12-25 — Standard-tread tractor · 12 hp. Reference specifications; pending source verification.

The J.I. Case 12-25 is a tractor model rated at 12 hp — making it one of the more compact options in its class. The 12-25 was manufactured from 1914 to 1918. Under the hood is a 2-cylinder engine, driving through two-wheel drive with a 2-speed gearbox. Listed weight is 4082 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
12 hp
Weight
4082 kg

Catalogue coverage

Variants represented
2
Richest spec table
33 rows
Recorded power
12 hp
Recorded weight
4082 kg
Transmissions
2-speed gear
Production years
1914-1918
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerJ.I. CaseReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Total built3,351Reference
Original price was $1,425 in 1916Reference
Two-wheel driveReference
Final drivesbull gearReference
Manual steeringReference
Open operator station.Reference

Engine

J.I. Case 8.9L 2-cyl distillateReference
Fuel tank64.3 LReference
Drawbar (claimed)8.9 kWReference
Belt (claimed)18.6 kWReference
J.I. CaseReference
distillateReference
2-cylinderReference
Displacement8.9 LReference
Bore/Stroke178 x 178 mmReference
Fuel systemcarburetorReference
Rated RPM600Reference
Starter typehand crankReference
Coolant capacity56.8 LReference

Transmission

2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference

Dimensions

Weight4082 kgReference
Rear tire56x18Reference
Ag rear56x18 (steel)Reference
Length377 cmReference
Width185 cmReference
Height177 cmReference

Capacities

Diameter55 cmReference
Width19 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
