Tractor · 1966Unverified

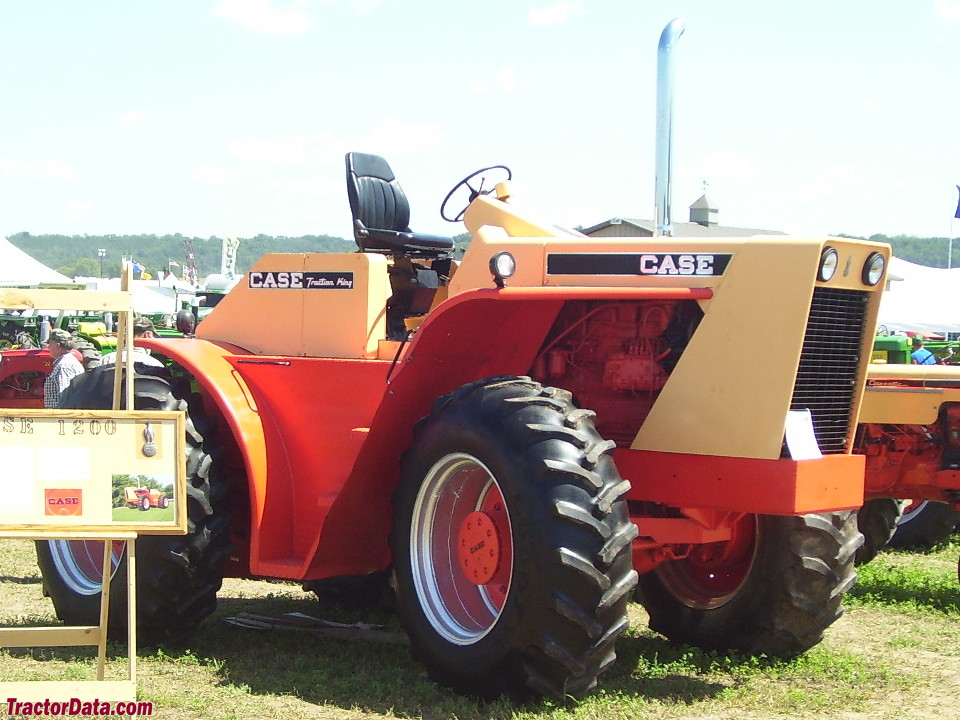

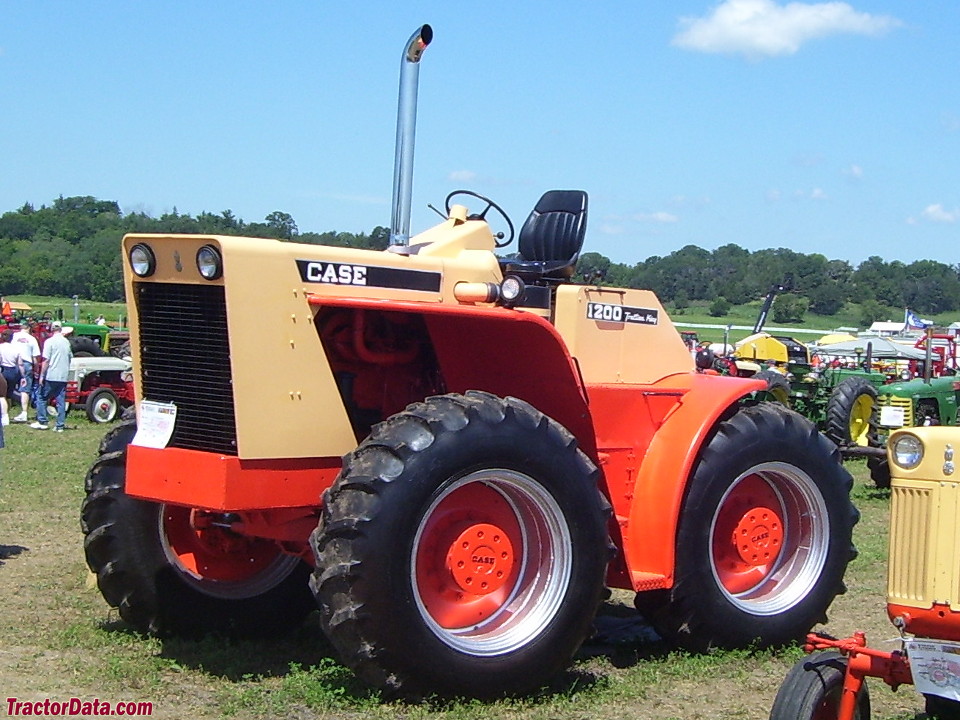

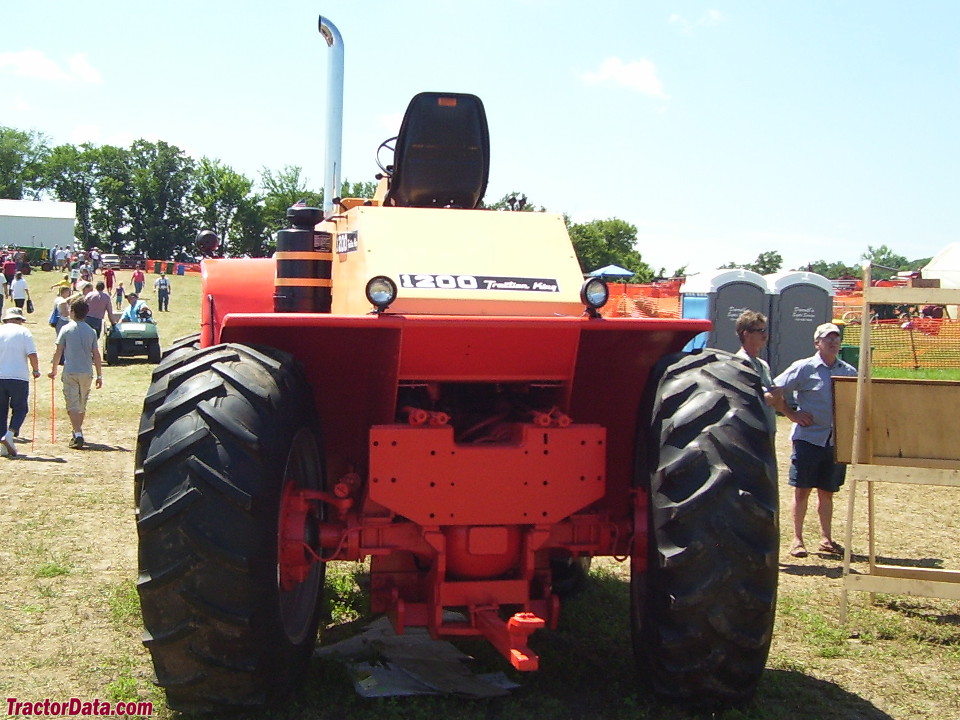

J.I. Case 1200 Traction King
J.I. Case 1200 Traction King — Four-wheel Drive (4WD) tractor · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Max power
79.2 kW
Weight
7801 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Four-wheel Drive (4WD) tractorReference
FactoriesRacine, Wisconsin, USAReference
FactoriesRockford, Illinois, USAReference
Total built1,549Reference
Original price was $20,200 in 1969Reference
Drive4x4 4WDReference
Steeringfour-wheel hydraulic powerReference
Four-wheel hydraulic shoe brakesReference
Open operator station.Reference
Engine
J.I. Case 7.4L 6-cyl dieselReference
Drawbar (claimed)79.0 kWReference
Drawbar (tested)79.2 kWReference
J.I. CaseReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke111 x 127 mmReference
Air cleaneroil bathReference
Compression15:1Reference
Rated RPM2000Reference
Starter volts24Reference
Power at rated engine speed89.4 kWReference
Max power79.2 kWReference
Transmission
6-speedReference
TransmissionClark R500Reference
Gears6 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
PTO (tested)89.4 kWReference
Pressure103.4 barReference
Valves2Reference
Total flow90.8 lpmReference
Rear TypeIIIReference
Rear PTO Type1000Reference
Dimensions
Wheelbase255 cmReference
Weight7801 kgReference
Front tire23.1-26Reference
Rear tire23.1-26Reference
Ag front23.1-26Reference
Ag rear23.1-26Reference
Test results
Diesel 6-speed 4WDOctober 14 - 23, 1964Link: Nebraska Tractor Test 868 fileReference
PTO performanceReference
Fuel use31.0 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull7194 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
