Tractor · 1976Unverified

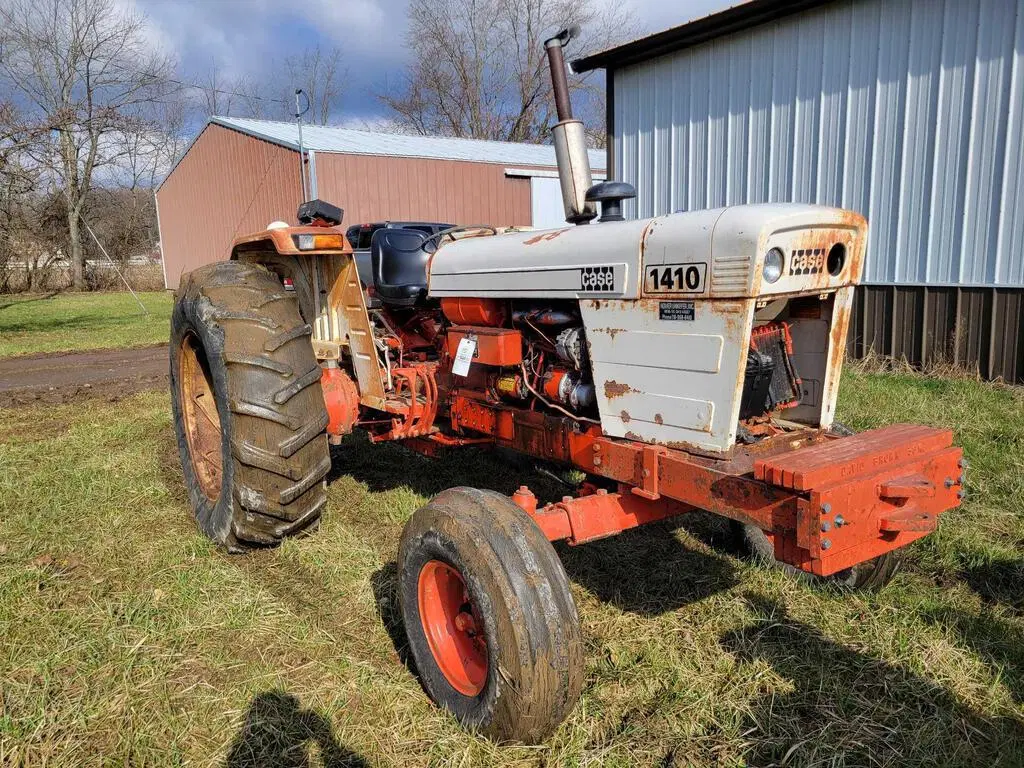

J.I. Case 1410
J.I. Case 1410 — Utility tractor · 81 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
81 hp
Weight
3220 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Meltham Mills, Huddersfield, EnglandReference
Original price$17,700 (1980)Reference
The J.I. Case 1410 was the same tractor as the David Brown 1410 (syncho) and David Brown 1412 (power shift).Reference
Two- or four-wheel driveReference
Open operator station. ROPS.Reference
Engine
David Brown 3.6L 4-cyl dieselReference
Drawbar (claimed)49.2 kWReference
David BrownReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 114 mmReference
Rated RPM2300Reference
Coolant capacity14.2 LReference
Transmission
12-speed synchromeshReference
12-speed partial power shiftReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
TransmissionHydra-ShiftReference
Typepartial power shiftReference
PTO & Hydraulics
PTO (claimed)60.4 kWReference
Hydraulic system49.2 LReference
Typeopen centerReference
Capacity49.2 LReference
Valves1Reference
Pump flow30.3 lpmReference
Rear TypeIIReference
Rear PTOindependenReference
Rear PTO Type540, 1000Reference
Capacities
Fuel83.3 LReference
Dimensions
Wheelbase228 cmReference
Weight3220 kgReference
Front tire7.50-16Reference
Rear tire18.4-34Reference
Ag front7.50-16Reference
Ag rear18.4-34Reference
Electrical
GroundnegativeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
