Tractor · 1983Unverified

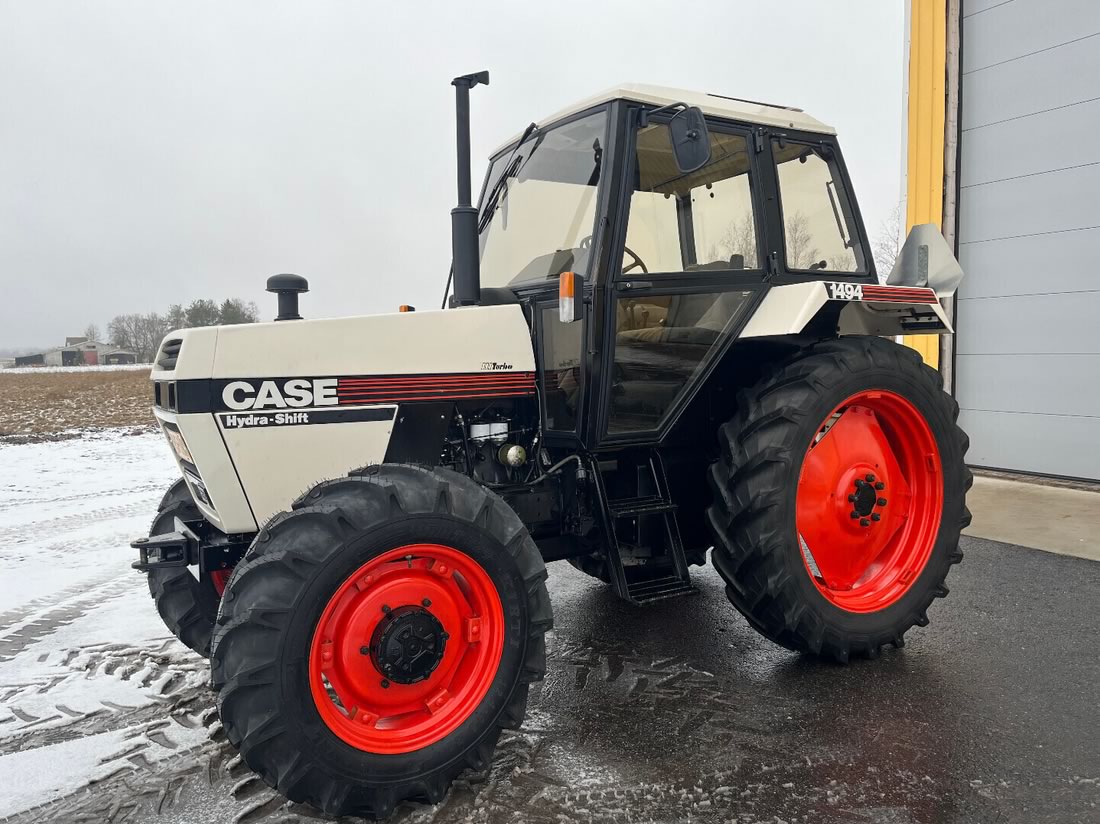

J.I. Case 1494
J.I. Case 1494 — 94 Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
7380 to 8180 pounds
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Meltham Mills, Huddersfield, EnglandReference
Original price$24,100 (1988)Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Cab optional with air-conditioning.Reference
Engine
Case 3.6L 4-cyl dieselReference
Fuel tank135.9 LReference
Engine63.4 kWReference
CaseReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 114 mmReference
Power63.4 kWReference
Compression16:1Reference
Rated RPM2200Reference
Torque296.0 NmReference
Torque RPM1600Reference
Starter volts12Reference
Oil capacity7.4 LReference
Coolant capacity14.2 LReference
Transmission
12-speed synchromeshReference
12-speed partial power shiftReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Oil capacity31.8 LReference
TransmissionHydra-ShiftReference
Typepartial power shiftReference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
Typeopen centerReference
Pressure170.7 barReference
Valves1 to 3Reference
Total flow32.2 lpmReference
Total flow57.9 lpmReference
Steering flow29.1 lpmReference
Steering press.127.6 barReference
Rear TypeIIReference
Rear lift (at ends)2434 kgReference
Rear lift (at 24"/610mm)1456 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase224 cmReference
Weight7380 to 8180 poundsReference
Front tire7.50-16Reference
Rear tire18.4-34Reference
Ag front7.50-16 (2WD)Reference
Ag front7.50-18 (2WD)Reference
Ag front11L-15 (2WD)Reference
Ag front10.00-16 (2WD)Reference
Ag front12.4-24 (4WD)Reference
Ag rear18.4-34Reference
Ag rear16.9-34Reference
Ag rear13.6-38Reference
Width190 cmReference
Height (cab)259 cmReference
Ground clearance35 cmReference
Ground clearance41 cmReference
Front tread142 to 203 cmReference
Front tread152 to 193 cmReference
Rear tread142 to 203 cmReference
3347 kgReference
3474 kgReference
3631 kgReference
3710 kgReference
Max Drawbar1360 kgReference
Max front axle3175 kgReference
Max front axle3402 kgReference
Max rear axle4762 kgReference
J.I. Case 1494 attachments
front-end loaderReference
1494 Serial Numbers
Location:Right side of main frameReference
198311192050Reference
198411192812Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Charging amps65 (heavy duty)Reference
Battery CCA420Reference
Battery CCA550 (heavy duty)Reference
Battery volts12Reference
Battery AH96Reference
Battery AH128 (heavy duty)Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
