Tractor · 1983Unverified

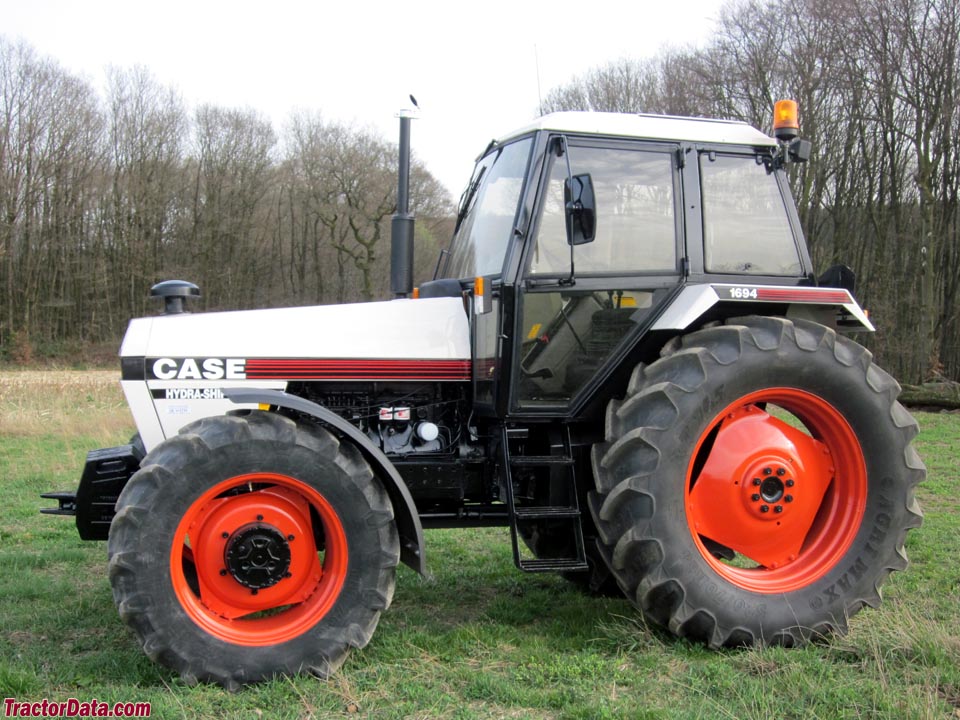

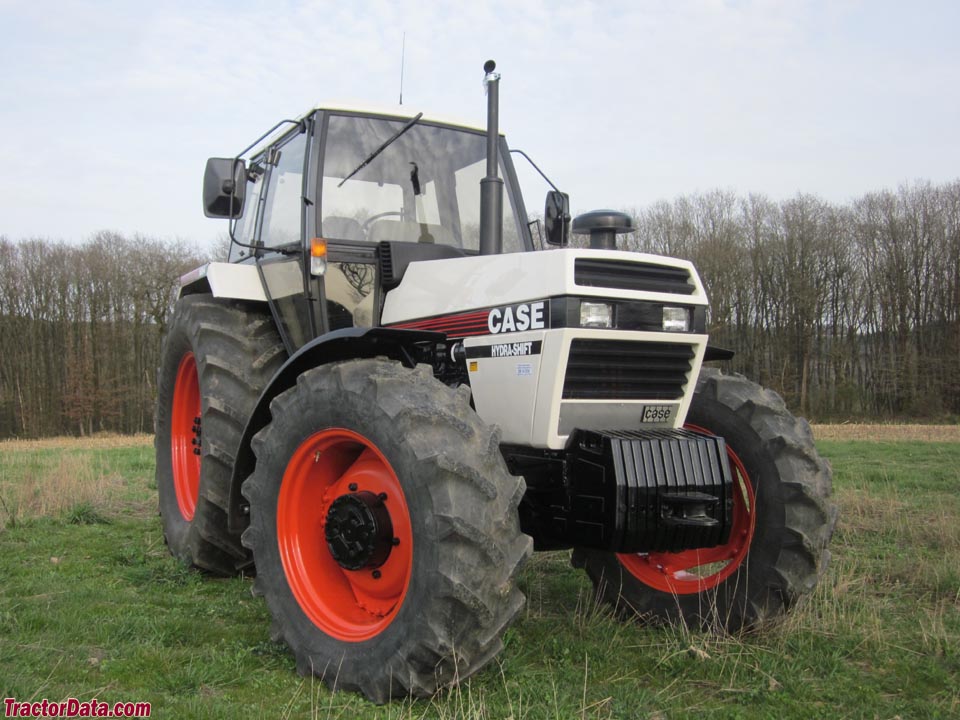

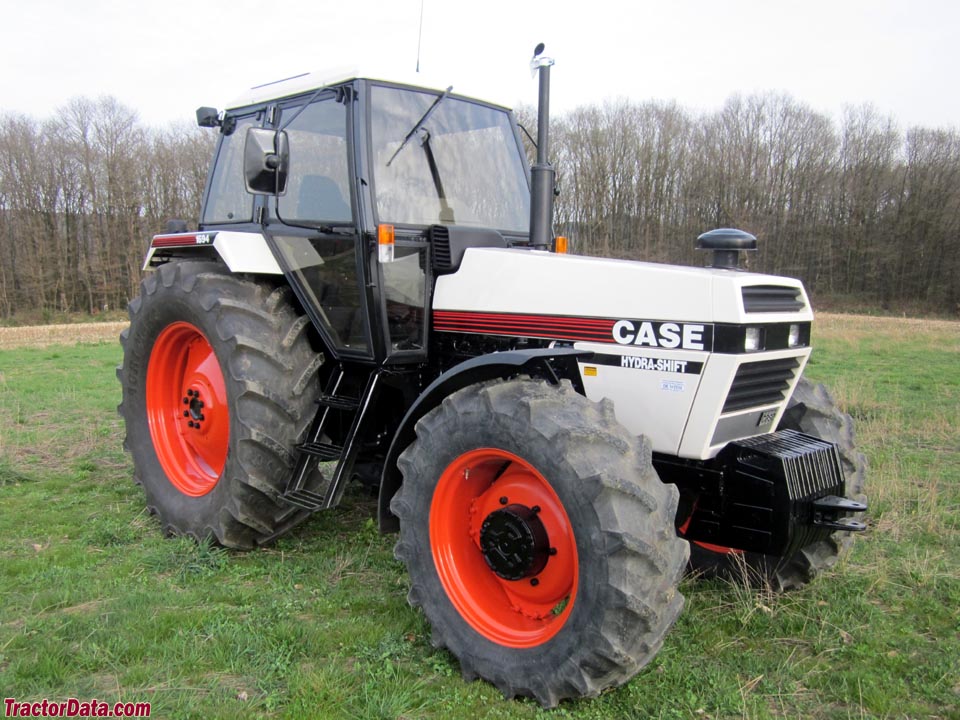

J.I. Case 1694
J.I. Case 1694 — 94 Series · 99 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
99 hp
Weight
4345 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
Case 5.4L 6-cyl dieselReference
Fuel tank135.9 LReference
Engine83.5 kWReference
CaseReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.4 LReference
Bore/Stroke100 x 114 mmReference
Power83.5 kWReference
Compression16:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.5 LReference
Coolant capacity15.3 LReference
Transmission
12-speed partial power shiftReference
TransmissionHydra-ShiftReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Oil capacity31.8 LReference
PTO & Hydraulics
PTO (claimed)73.8 kWReference
Pressure179.3 barReference
Rear valves1 to 3Reference
Total flow39.7 lpmReference
Total flow76.1 lpmReference
Steering flow29.1 lpmReference
Steering press.127.6 barReference
Rear TypeIIReference
Rear lift (at ends)3374 kgReference
Rear lift (at 24"/610mm)2853 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase254 cmReference
Weight4345 kgReference
Front tire13.6-28Reference
Rear tire16.9-38Reference
Ag front13.6-28Reference
Ag front13.6-24Reference
Ag rear16.9-38Reference
Width200 cmReference
Height (cab)274 cmReference
Ground clearance41 cmReference
Front tread152 to 193 cmReference
Rear tread142 to 213 cmReference
4345 kgReference
Max Drawbar1496 kgReference
Max front axle3628 kgReference
Max rear axle5443 kgReference
J.I. Case 1694 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Charging amps65 (heavy duty)Reference
Battery CCA420Reference
Battery CCA550 (heavy duty)Reference
Battery volts12Reference
Battery AH96Reference
Battery AH128 (heavy duty)Reference
Capacities
Max capacity6123 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
