Tractor · 1924Unverified

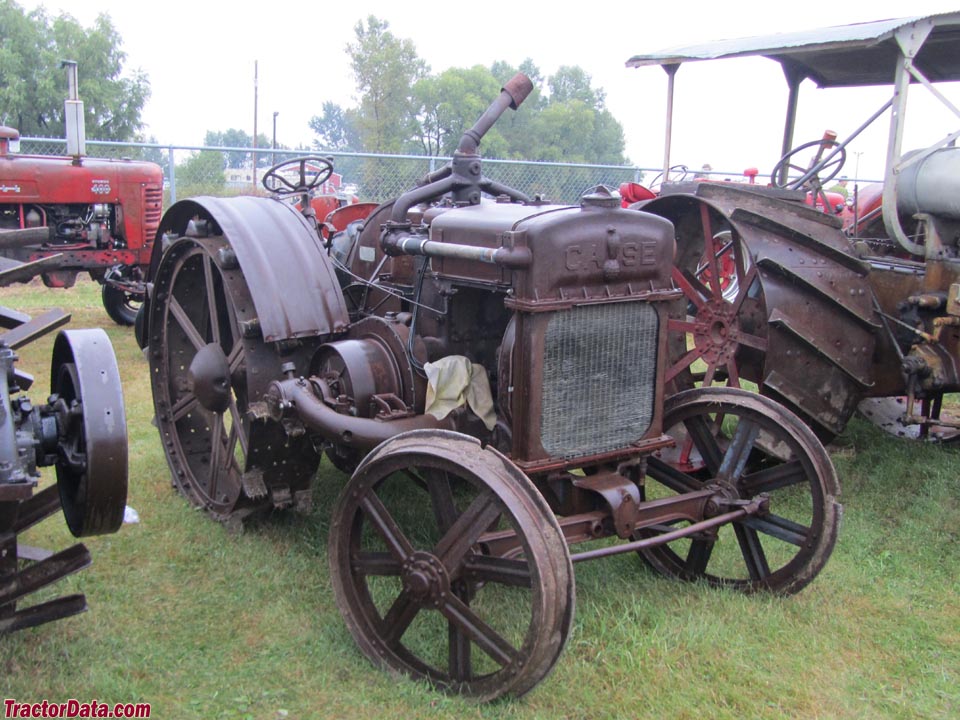

J.I. Case 18-32
J.I. Case 18-32 — Crossmotor Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Max power
18.3 kW
Weight
2948 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Two-wheel driveReference
SteeringmanualReference

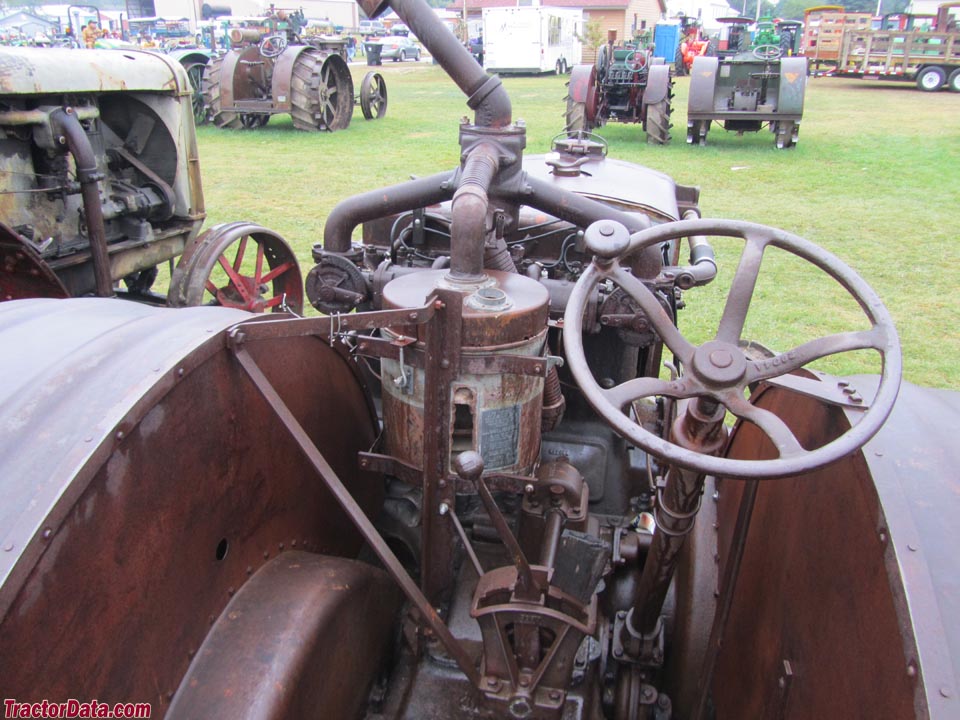

Open operator station.Reference
Engine
J.I. Case 6.3L 4-cyl keroseneReference
Drawbar (claimed)13.4 kWReference
Belt (claimed)23.9 kWReference
Plows3Reference
Drawbar (tested)18.3 kWReference
Belt (tested)27.4 kWReference
J.I. CaseReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement6.3 LReference
Bore/Stroke114 x 152 mmReference
Rated RPM1000Reference
Starter typehand-crankReference
Belt power (max)27.4 kWReference
Max power18.3 kWReference
Transmission
2-speed gearReference
TransmissionJ.I. CaseReference
TypegearReference
Gears2 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Weight2948 kgReference
Rear tire52x14Reference
Ag rear52x14 steelReference
Length322 cmReference
Width182 cmReference
Height172 cmReference
Operating weight2948 kgReference
18-32 Serial Number Location
Left rear fender.Reference
Capacities
Diameter40 cmReference
Width19 cmReference
RPM1000Reference
Speed1274.06 meters/minReference
Test results
Kerosene 2-speed 2WDOctober 27, 1924 - November 4, 1927Link: Nebraska Tractor Test 109 fileReference
Belt fuel use (max)15.1 l/hourReference
Drawbar performanceReference
Max pull1760 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
