Tractor · 1984Unverified

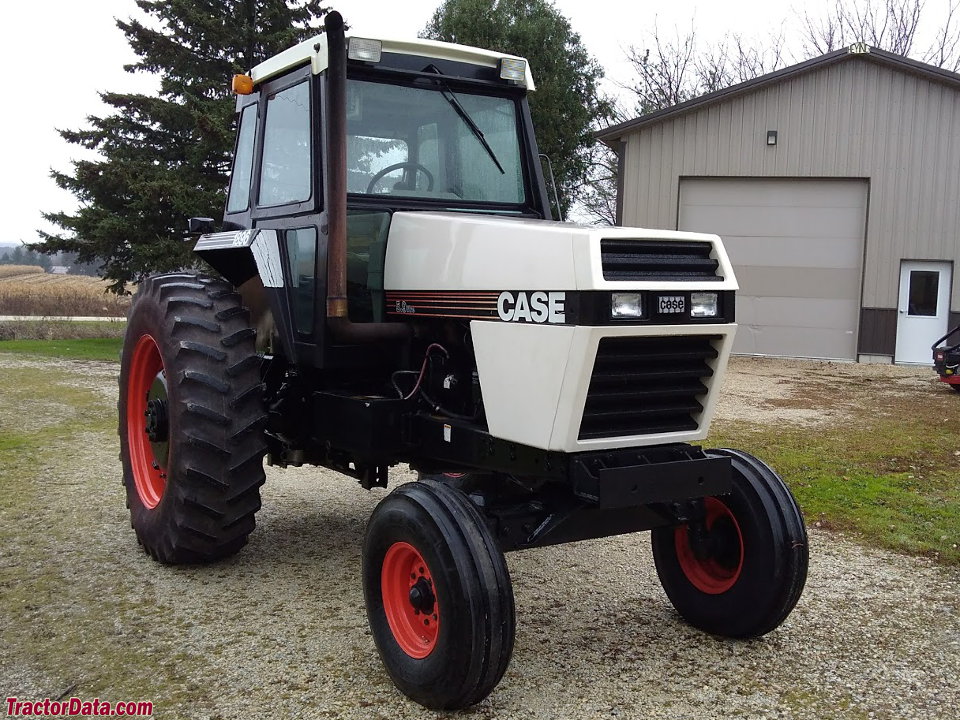

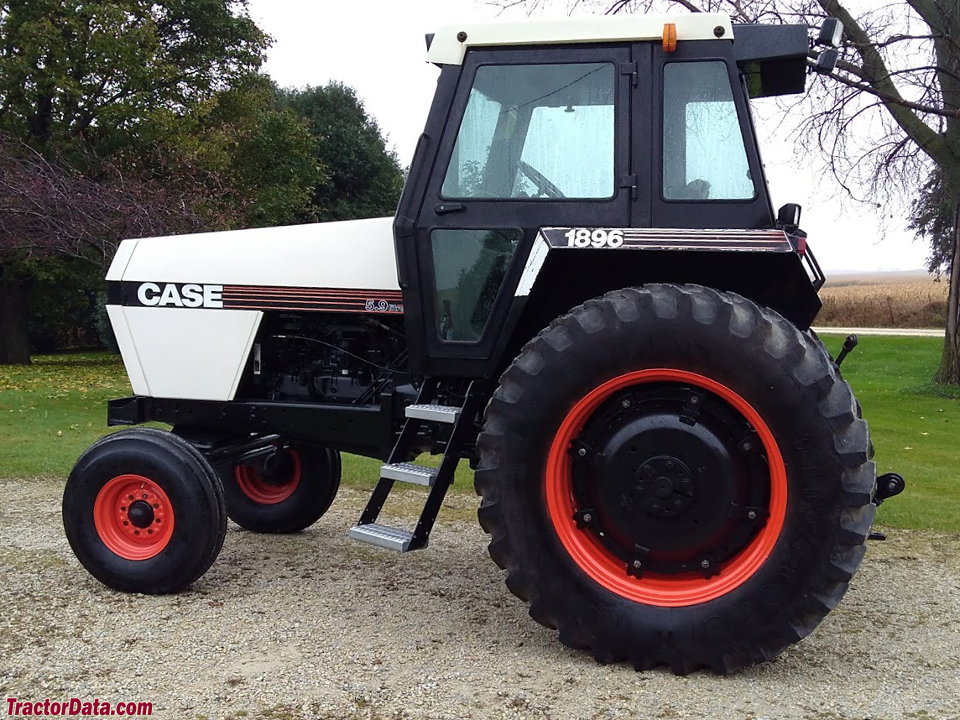

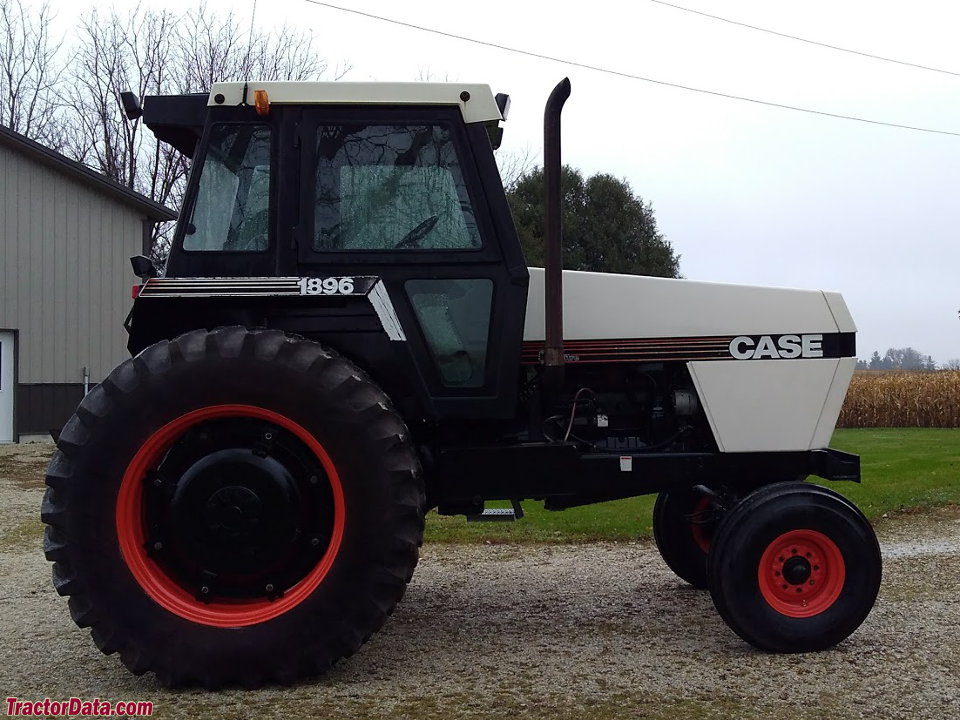

J.I. Case 1896

Name: J.I. Case 1896
Brand: J.I. Case

J.I. Case 1896 — 96 Series · 96 hp. Reference specifications; pending source verification.

The J.I. Case 1896 is a tractor with a rated output of 96 hp, placing it in the middle of its class in terms of power. It was manufactured from 1984 to 1985. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which powers four-wheel drive via a powershift transmission. Its listed weight is 6121 kg, and it is designed for use on areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

96 hp

Max power

63.0 kW

Weight

6121 kg

Catalogue coverage

Variants represented

Richest spec table

83 rows

Recorded power

96 hp

Recorded weight

6121 kg

Transmissions

12-speed three-speed power shift

Production years

1984-1985

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerJ.I. CaseReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Original price was $35,000 in 1989Reference

Two- or four-wheel driveReference

Differential lockelectric rearReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

CDC 5.9L 6-cyl dieselReference

Drawbar (tested)63.0 kWReference

CDCReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke102 x 120 mmReference

Air cleanerdual dry elementsReference

Compression17.5:1Reference

Rated RPM2100Reference

Idle RPM800-2250Reference

Starter volts12Reference

Oil capacity15.1 LReference

Coolant capacity20.8 LReference

Power at rated engine speed71.5 kWReference

Max power63.0 kWReference

Transmission

12-speed three-speed power shiftReference

Typethree-speed power shiftReference

Gears12 forward and 3 reverseReference

Oil capacity94.6 LReference

Three power shift gears, plus reverse, in four ranges. Reverse is not operable in range four.Reference

PTO & Hydraulics

PTO (claimed)70.8 kWReference

PTO (tested)71.5 kWReference

Hydraulic system94.6 LReference

Typeclosed centerReference

Capacity94.6 LReference

Pressure155.1 barReference

Valves2 to 4Reference

Pump flow87.1 lpmReference

Steering flow30.3 lpmReference

Rear TypeIII/IIReference

Rear lift2993 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Capacities

Fuel246.0 LReference

Dimensions

Wheelbase274 cmReference

Weight6121 kgReference

Front tire11.00-16Reference

2WD Rear tire18.4-38Reference

2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4-38Reference

4WD Standard tires (ag)Front: 16.9-26. Rear: 18.4-38Reference

Length434 cmReference

Operating weight6121 kgReference

Ground clearance40 cmReference

Bar rear axle88 by 2438 mmReference

Bar rear axle88 by 3048 mmReference

2WD Front tread152 to 223 cmReference

4WD Front tread152 to 226 cmReference

Rear tread152 to 279 cmReference

Rear tread152 to 335 cmReference

1896 Serial Numbers

19849931800Reference

19859938100Reference

19869941573Reference

198717895137Reference

198817895512Reference

198917895992Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps105Reference

Battery volts12Reference

J.I. Case 1896 Height

ROPS293 cmReference

Height (Folded ROPS)232 cmReference

Cab299 cmReference

Exhaust294 cmReference

Test results

Diesel 12-speed 2WDOctober 24 - November 7, 1984Link: Nebraska Tractor Test 1548 fileReference

PTO performanceReference

Fuel use21.6 l/hourReference

Drawbar performanceReference

Gear 3-2 used for power test.Reference

Max pull5605 kgReference

Gear 1-2 used for pull test.Reference

Speeds

With 18.4x38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
