Tractor · 1958Unverified

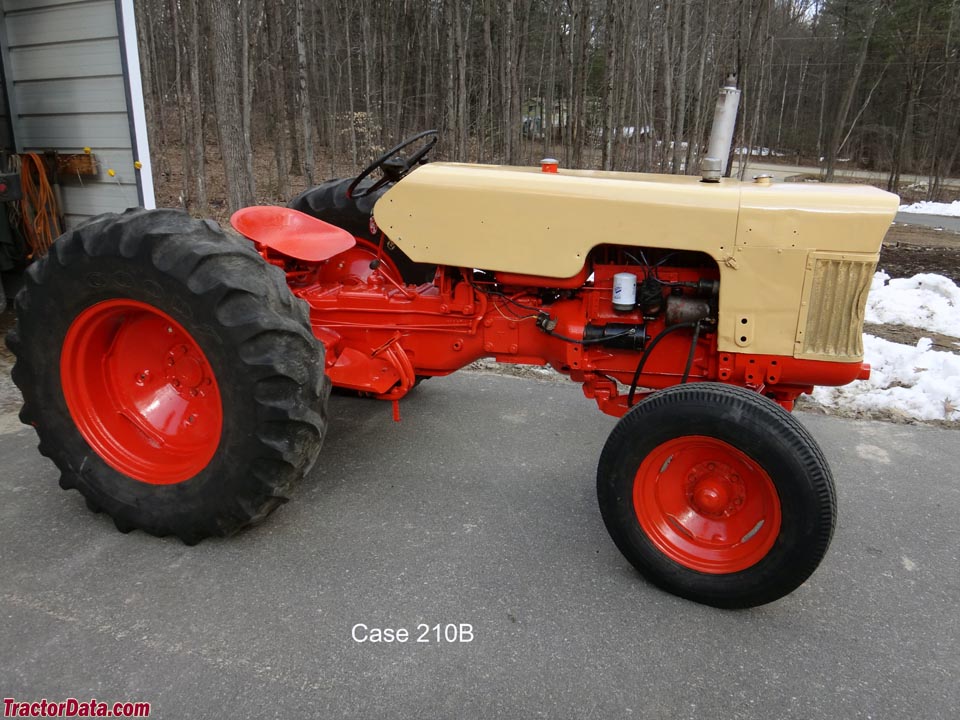

J.I. Case 210-B
J.I. Case 210-B — 200B Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1298 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Rock Island, Illinois, USAReference
Total built364Reference
Two-wheel driveReference
Open operator station.Reference
Variants
210-ButilityReference
211-Brow-cropReference
Engine
J.I. Case 2.1L 4-cyl gasolineReference
Fuel tank49.2 LReference
Drawbar (claimed)18.6 kWReference
Plows2Reference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.1 LReference
Bore/Stroke79 x 105 mmReference
Fuel systemcarburetorReference
Air cleaneroil bathReference
Compression7.5:1Reference
Rated RPM1900Reference
Idle RPM500-2050Reference
Firing order1-3-4-2Reference
Starter volts6Reference
Oil capacity4.7 LReference
Coolant capacity11.4 LReference
Sparkplug gap0.635 mmReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.356 mmReference
Transmission
4-speed gearReference
12-speed gearReference
8-speed mechanical shuttleReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutch235mm dry discReference
Oil capacity26.5 LReference
TransmissionTripl-RangeReference
Gears12 forward and 3 reverseReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Oil capacity0.0 LReference
Oil capacity1798.2 LReference
PTO & Hydraulics
PTO (claimed)22.4 kWReference
Rear PTO Type540 (1.375)Reference
Engine RPM533@1750Reference
Dimensions
Wheelbase191 cmReference
Weight1298 kgReference
Front tire5.50-16Reference
Rear tire10-24Reference
Ag front5.50-16Reference
Ag rear10-24Reference
Ag front6.00-16Reference
Ag rear11-24Reference
Length321 cmReference
Width152 cmReference
Height (steering wheel)140 cmReference
Front tread132 cmReference
Rear tread121 to 172 cmReference
210-B Serial Number Location
Serial number plate on dashboard.Reference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Battery volts6Reference
Battery AH100Reference
Speeds
With 10-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
