Tractor · 1919Unverified

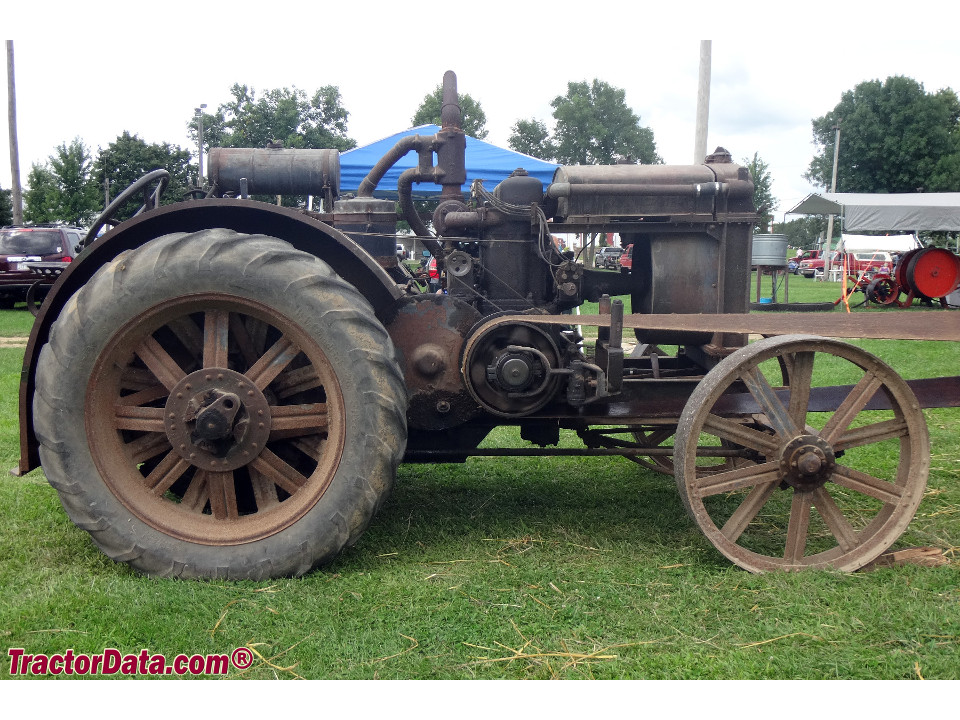

J.I. Case 22-40

Name: J.I. Case 22-40
Brand: J.I. Case

J.I. Case 22-40 — Crossmotor Series · 22 hp. Reference specifications; pending source verification.

The J.I. Case 22-40 tractor is rated at approximately 22 horsepower, which positions it at the lower end of its class. Produced from 1919 to 1924, it features a 4-cylinder liquid-cooled engine and two-wheel drive with a 2-speed gearbox. The tractor has an operating weight of 4626 kg. It is capable of handling operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

22 hp

Max power

23.3 kW

Weight

4626 kg

Catalogue coverage

Variants represented

Richest spec table

41 rows

Recorded power

22 hp

Recorded weight

4626 kg

Transmissions

2-speed sliding gear

Production years

1919-1924

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerJ.I. CaseReference

Standard-tread tractorReference

Built in Racine, Wisconsin, USAReference

Total built1,750Reference

Two-wheel driveReference

Manual steeringReference

Open operator station.Reference

Engine

J.I. Case 10.5L 4-cyl keroseneReference

Drawbar (claimed)16.4 kWReference

Belt (claimed)29.8 kWReference

Plows4-5 (14-inch)Reference

Drawbar (tested)23.3 kWReference

Belt (tested)37.3 kWReference

J.I. CaseReference

keroseneReference

4-cylinderReference

liquid-cooledReference

Displacement10.5 LReference

Bore/Stroke140 x 171 mmReference

Rated RPM850Reference

Starter typehand-crankReference

Belt power (max)37.3 kWReference

Max power23.3 kWReference

Transmission

2-speed sliding gearReference

TransmissionJ.I. CaseReference

Typesliding gearReference

Gears2 forward and 1 reverseReference

Dimensions

Weight4626 kgReference

Rear tire56x16Reference

Ag rear56x16 (steel)Reference

Length388 cmReference

Width209 cmReference

Height201 cmReference

Capacities

Diameter41 cmReference

Width21 cmReference

RPM850Reference

Speed1118.31 meters/minReference

Test results

Kerosene 2-speed 2WDApril 7 - May 6, 1920Link: Nebraska Tractor Test 5 fileReference

Belt fuel use (max)26.1 l/hourReference

Drawbar performanceReference

Max pull2252 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
