Tractor · 1972Unverified

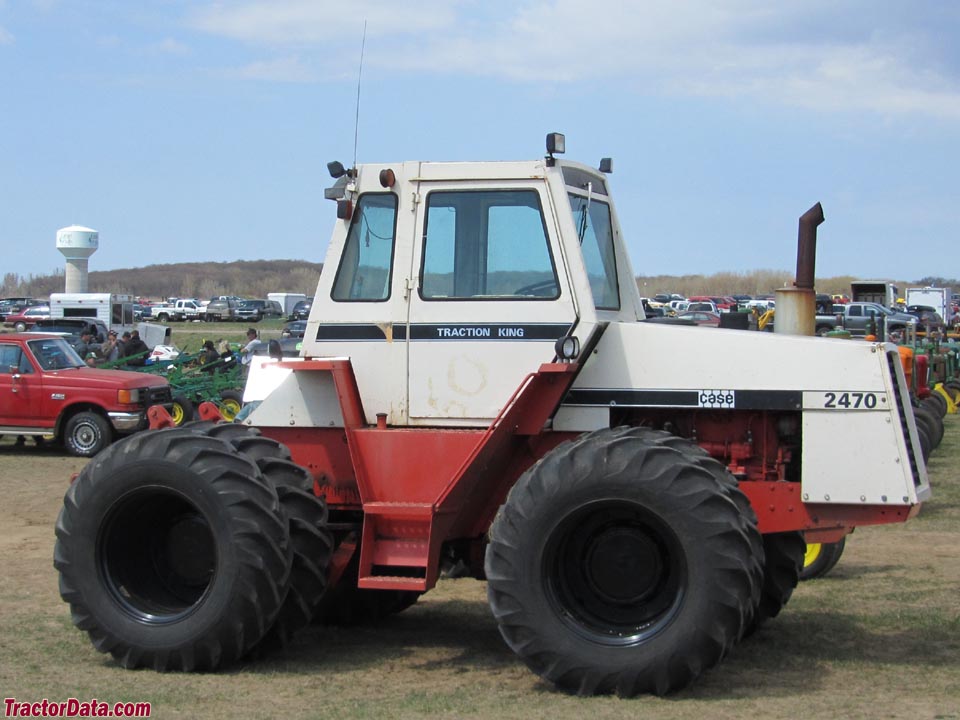

J.I. Case 2470 Traction King

Name: J.I. Case 2470 Traction King
Brand: J.I. Case

J.I. Case 2470 Traction King — Four-wheel Drive (4WD) tractor · 213 hp. Reference specifications; pending source verification.

The J.I. Case 2470 Traction King is a high-powered tractor, with a rated output of 213 hp. It was manufactured between 1972 and 1979. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which drives four-wheel drive via a hydrostatic transmission. Its listed weight ranges from 15500 to 20485 pounds, making it suited to tasks on around 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

213 hp

Max power

112.2 kW

Weight

15500 to 20485 pounds

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

213 hp

Recorded weight

7030 kg

Transmissions

12-speed partial power shift

Production years

1972-1979

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerJ.I. CaseReference

Four-wheel Drive (4WD) tractorReference

Built in Racine, Wisconsin, USAReference

Total built7,996Reference

Original price was $43,600 in 1979Reference

Drive4x4 4WDReference

Final drivesplanetaryReference

Steeringhydrostatic front, hydraulic-assist rearReference

Hydraulic wet disc brakesReference

Cab standard with optional heat and air-conditioning.Reference

Engine

J.I. Case 8.3L 6-cyl dieselReference

Fuel tank416.4 LReference

Engine (gross)158.8 kWReference

Drawbar (claimed)114.8 kWReference

Drawbar (tested)112.2 kWReference

J.I. CaseReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke117 x 127 mmReference

Power (gross)158.8 kWReference

Air cleanerdual paper elements with pre-cleanerReference

Compression15.8:1Reference

Rated RPM2200Reference

Starter volts12Reference

Coolant capacity41.6 LReference

Power at rated engine speed129.9 kWReference

Max power112.2 kWReference

Transmission

12-speed partial power shiftReference

TransmissionRange Power ShiftReference

Typepartial power shiftReference

Gears12 forward and 2 reverseReference

Clutchhydraulic wet discReference

Four ranges (1-4) with three power shift gears (1-3), plus reverse (R) in each range.Reference

PTO & Hydraulics

PTO (claimed)131.2 kWReference

PTO (tested)129.9 kWReference

Typeopen centerReference

Pressure141.3 barReference

Valves2 to 4Reference

SCV flow64.3 lpmReference

Total flow128.7 lpmReference

Steering flow64.3 lpmReference

Rear TypeIII/IIReference

Rear lift (at 24"/610mm)4536 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.375)Reference

Engine RPM1000@2200Reference

Dimensions

Wheelbase259 cmReference

Weight15500 to 20485 poundsReference

Front tire18.4-34Reference

Rear tire18.4-34Reference

Ag front18.4-34Reference

Ag rear18.4-34Reference

Ag front18.4-30Reference

Ag front20.8-34Reference

Ag front23.1-30Reference

Ag rear18.4-30Reference

Ag rear20.8-34Reference

Ag rear23.1-30Reference

Length525 cmReference

Height330 cmReference

Shipping weight7030 kgReference

Operating weight9291 kgReference

Front tread182 to 233 cmReference

Rear tread182 to 233 cmReference

2470 Serial Numbers

19728691801Reference

19738712001Reference

19748762001Reference

19758767001Reference

19768792901Reference

19778825001Reference

19788853001Reference

19798853001Reference

FAQ: How to read a serial number table.Reference

Electrical

Charging systemalternatorReference

Charging amps55Reference

Batteries2Reference

Battery volts12Reference

Test results

Diesel 12-speed 4WDOctober 25 - 31, 1972Link: Nebraska Tractor Test 1114 fileReference

PTO performanceReference

Fuel use43.1 l/hourReference

Drawbar performanceReference

Fuel use42.8 l/hourReference

Gear 3-2 used for power test.Reference

Max pull8187 kgReference

Gear 2-1 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
