Tractor · 1984Unverified

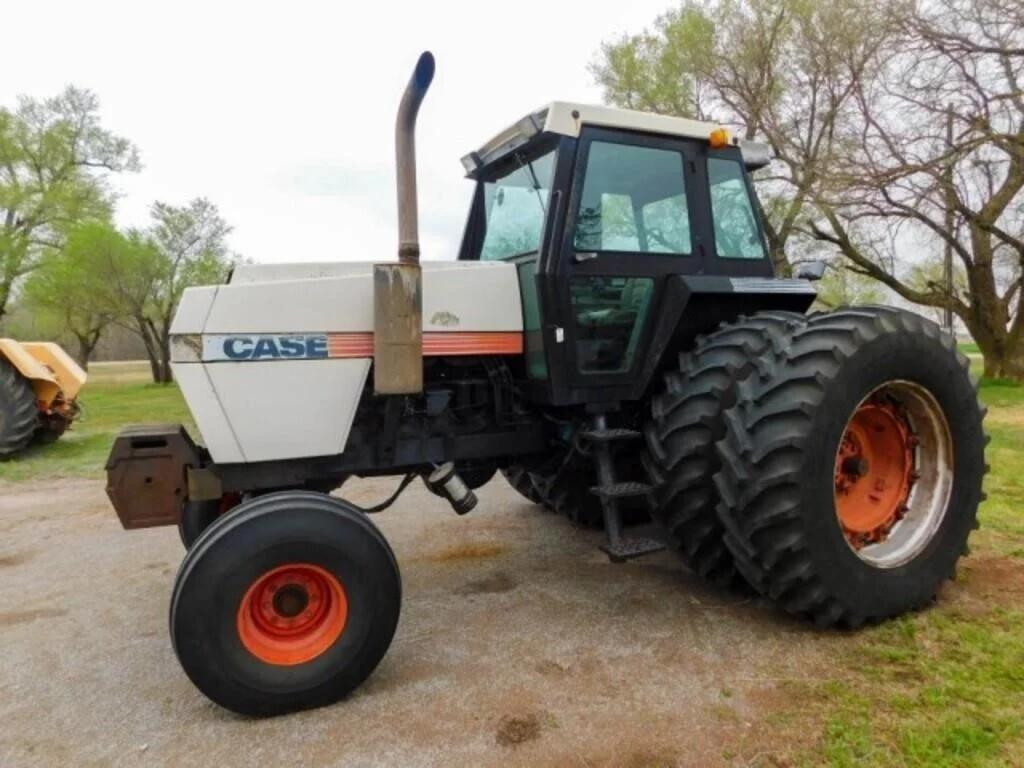

J.I. Case 2594

Name: J.I. Case 2594
Brand: J.I. Case

J.I. Case 2594 — 94 Series · 182 hp. Reference specifications; pending source verification.

The J.I. Case 2594 is a tractor with a rated output of 182 hp, categorising it among the higher-powered machines in its class. It was manufactured in 1984. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, transmitting power through a two-wheel drive system with a powershift transmission. Its listed weight falls within the range of 14875 to 16220 pounds, making it suitable for tasks covering approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

182 hp

Max power

119.0 kW

Weight

14875 to 16220 pounds

Catalogue coverage

Variants represented

Richest spec table

91 rows

Recorded power

182 hp

Transmissions

12-speed three-speed power shift

Production years

1984-1984

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerJ.I. CaseReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Two-wheel driveReference

Power steeringReference

Wet disc brakesReference

Silent Guardian cab with air-conditioning.Reference

Engine

Case 8.3L 6-cyl dieselReference

Engine161.8 kWReference

Drawbar (claimed)120.1 kWReference

Drawbar (tested)119.0 kWReference

CaseReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke117 x 127 mmReference

Power161.8 kWReference

Rated RPM2100Reference

Starter volts12Reference

Oil capacity28.4 LReference

Coolant capacity41.6 LReference

Power at rated engine speed135.8 kWReference

Max power119.0 kWReference

Transmission

12-speed three-speed power shiftReference

24-speed four-speed power shiftReference

Typethree-speed power shiftReference

Gears12 forward and 3 reverseReference

Oil capacity121.1 LReference

Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.Reference

Typefour-speed power shiftReference

Gears24 forward and 3 reverseReference

Six power shift gears (1-6), plus reverse, in four ranges (1-4). Reverse does not work in fourth range.Reference

PTO & Hydraulics

PTO (claimed)134.2 kWReference

PTO (tested)135.8 kWReference

Hydraulic system121.1 LReference

Typeclosed centerReference

Capacity121.1 LReference

Pressure155.1 barReference

Valves2 to 4Reference

Pump flow102.2 lpmReference

Steering flow30.3 lpmReference

Steering press.137.9 barReference

Rear TypeIIIReference

Rear lift (at 24"/610mm)3515 kgReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type1000Reference

Capacities

Fuel321.7 LReference

Fuel94.6 LReference

Max capacity9298 kgReference

Dimensions

Wheelbase299 cmReference

Weight14875 to 16220 poundsReference

Front tire11.00x16Reference

Rear tire20.8x38Reference

Ag front11.00x16Reference

Ag rear20.8x38Reference

Ag front14Lx16Reference

Ag rear24.5x32Reference

Ag rear30.5x32Reference

Ag rear18.4x42Reference

Ag rear20.8x42Reference

Width243 cmReference

Width304 cmReference

Bar rear axle98 by 2438 mmReference

Bar rear axle98 by 3048 mmReference

Rear tread152 to 279 cmReference

Rear tread152 to 335 cmReference

Shipping6747 kgReference

Operating7357 kgReference

2594 Serial Numbers

Location:Inside cab or on right-front frameReference

19849931803Reference

19859938951Reference

19869941789Reference

19879945455Reference

19889948517Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps72Reference

Charging amps105Reference

Battery volts12Reference

Test results

Diesel 24-speed 2WDMay 31 - June 20, 1984Link: Nebraska Tractor Test 1529 fileReference

PTO performanceReference

Fuel use45.4 l/hourReference

Drawbar performanceReference

Fuel use45.0 l/hourReference

Gear 3-4 used for power test.Reference

Max pull7654 kgReference

Gear 2-2 used for pull test.Reference

Speeds

With 20.8x38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
