Tractor · 1958Unverified
J.I. Case 310-B
J.I. Case 310-B — 300B Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
1323 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Rock Island, Illinois, USAReference
Two-wheel driveReference
Power steeringReference
Differential mechanical dry disc brakesReference
Open operator station.Reference
Variants
300Bdiesel utilityReference
301Bdiesel row-cropReference
302Bdiesel high-cropReference
310Bgasoline utilityReference
311Bgasoline row-cropReference
312Bgasoline high-cropReference
320BindustrialReference
Engine
J.I. Case 2.4L 4-cyl gasolineReference
Plows3Reference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke86 x 105 mmReference
Fuel systemcarburetorReference
Air cleaneroil bathReference
Compression7.1:1Reference
Rated RPM1900Reference
Idle RPM500-2050Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity12.3 LReference
SparkplugChampion D-16Reference
Sparkplug gap0.635 mmReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.356 mmReference
Oil capacity4.7 LReference
Oil change100 hReference
Transmission
4-speed gearReference
12-speed gearReference
8-speed shuttleReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutch235mm dry discReference
Oil capacity16.1 LReference
TransmissionTripl-RangeReference
Gears12 forward and 3 reverseReference
Four gears, plus reverse, in three ranges.Reference
1Foot clutchReference
2Hand clutchReference
3ThrottleReference
4Gear shiftReference
5Range shiftReference
6BrakesReference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)27.6 kWReference
Hydraulic system11.4 LReference
Typeopen centerReference
Capacity11.4 LReference
Pressure82.7 barReference
TypeEagle HitchReference
Rear PTOcontinuousReference
Rear PTO Type540 (1.375)Reference
Engine RPM533@1750Reference
Capacities
Fuel49.2 LReference
Diameter23 cmReference
Width16 cmReference
RPM1290Reference
Speed952.50 meters/minReference
Dimensions
Wheelbase191 cmReference
Weight1323 kgReference
Front tire6.00-16Reference
Rear tire11-24Reference
Ag front6.00-16Reference
Ag rear11-24Reference
Ag front7.50-16Reference
Ag rear10-24Reference
Ag rear13-24Reference
Length332 cmReference
Width156 cmReference
Height (steering wheel)140 cmReference
Front tread120 cmReference
Rear tread121 to 172 cmReference
J.I. Case 310-B attachments

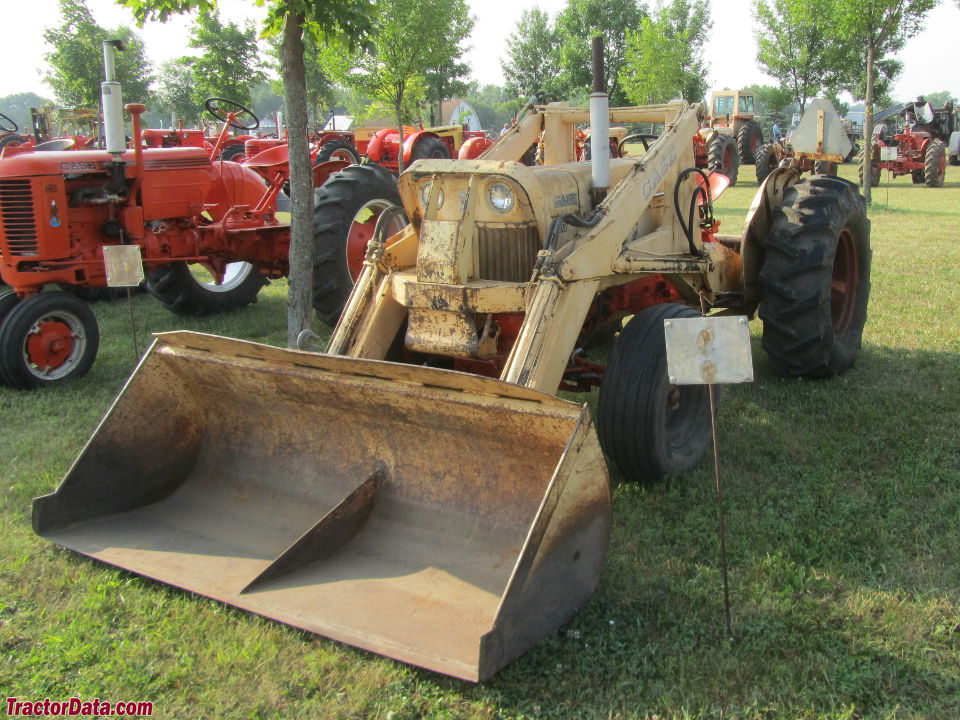

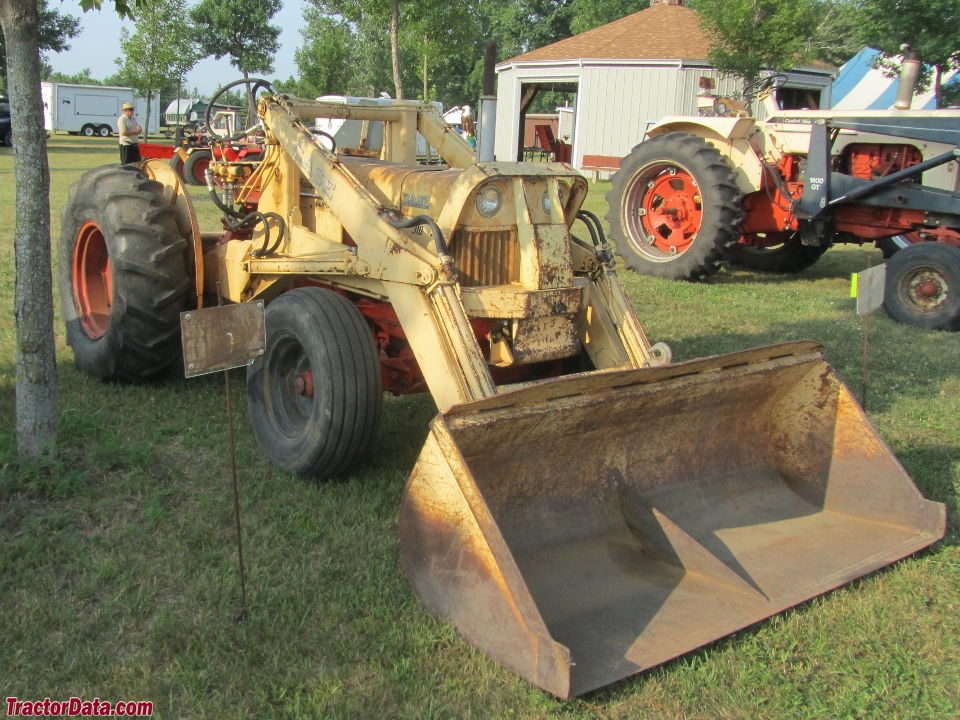

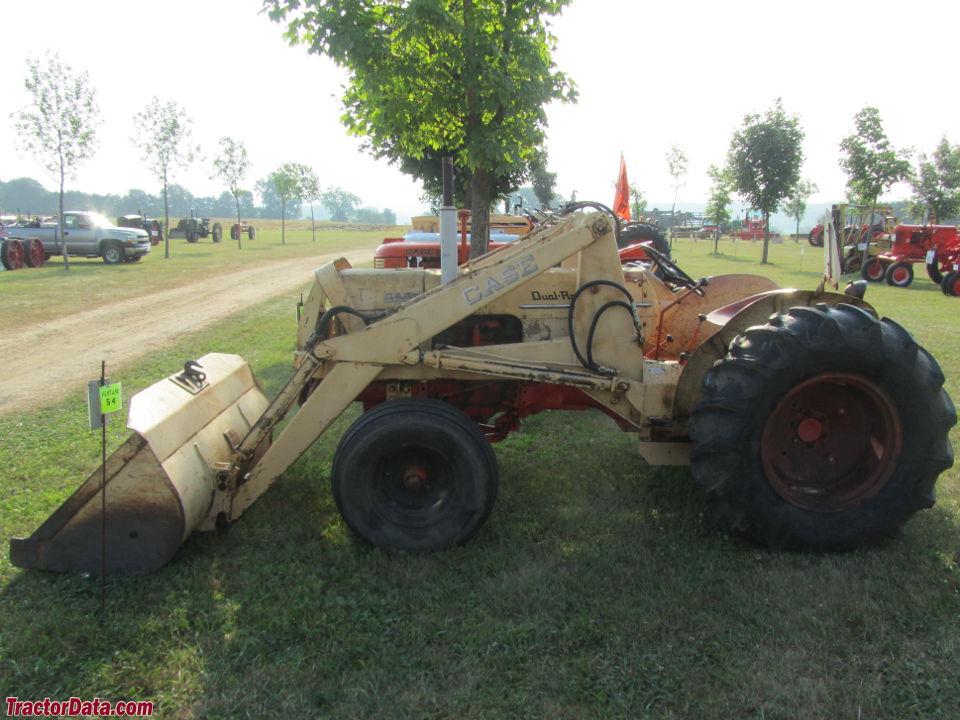

front-end loaderReference
310-B Serial Number Location
Serial number plate on the left side of the tractor's instrument panel.Reference
310-B Serial Numbers
19586095001Reference
19596120001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Battery volts12Reference
Battery AH50Reference
Speeds
With 11-24 rear tires.Reference
With 12-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
