Tractor · 1958Unverified

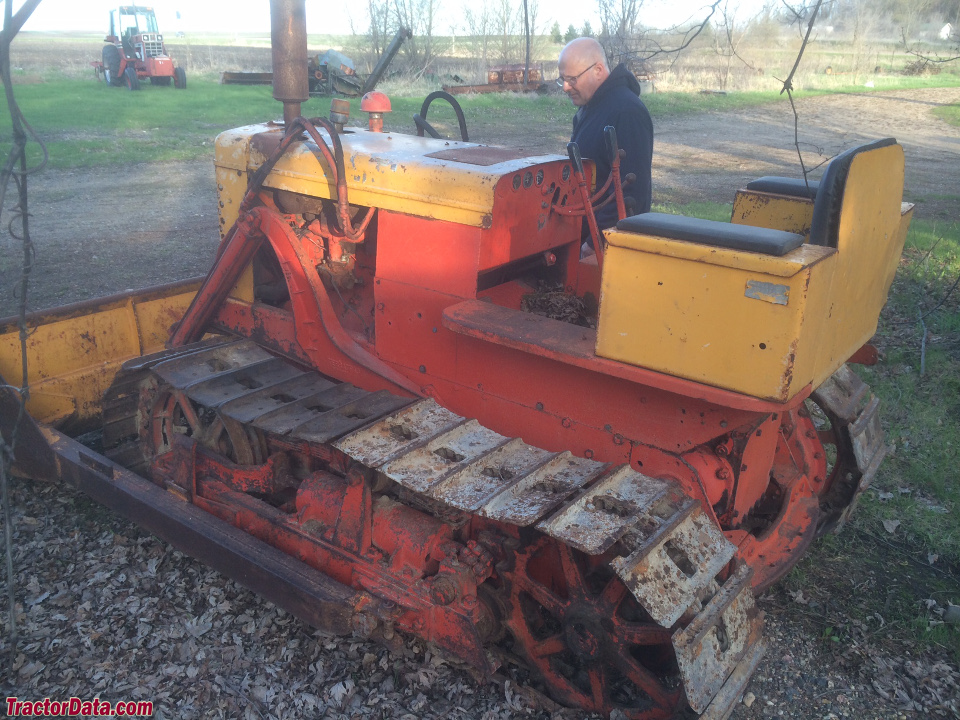

J.I. Case 310C
J.I. Case 310C — Agricultural Crawler tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Max power
19.9 kW
Weight
5300 to 6145 pounds
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Contracting band brakesReference
Open operator station.Reference
Engine
J.I. Case 2.4L 4-cyl gasolineReference
Engine (gross)31.3 kWReference
Drawbar (claimed)22.4 kWReference
Belt (claimed)26.8 kWReference
Plows3Reference
Drawbar (tested)19.9 kWReference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke86 x 105 mmReference
Power (gross)31.3 kWReference
Air cleaneroil bathReference
Compression7:1Reference
Rated RPM1850Reference
StarterelectricReference
Starter volts6Reference
Power at rated engine speed24.8 kWReference
Max power19.9 kWReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (tested)24.8 kWReference
Typeopen centerReference
Pump flow56.8 lpmReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1727Reference
Power at rated PTO speed23.4 kWReference
Dimensions
Wheelbase137 cmReference
Weight5300 to 6145 poundsReference
10-inch tracksReference
Length279 cmReference
Width147 cmReference
Shipping weight2404 kgReference
Operating weight2787 kgReference
Gauge121 cmReference
J.I. Case 310C attachments
bladeReference
310C Serial Numbers
19573000001 (310)Reference
19583003001 (310)Reference
19593008001 (310C)Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter21 cmReference
Width16 cmReference
RPM1193Reference
Speed807.72 meters/minReference
J.I. Case 310C Tracks
Width25 cmReference
Test results
Gasoline 3-speed crawlerJuly 14 - 31, 1959Link: Nebraska Tractor Test 709 fileReference
PTO performanceReference
Fuel use11.0 l/hourReference
Fuel use10.2 l/hourReference
Drawbar performanceReference
Fuel use12.1 l/hourReference
Gear 2 used for power test.Reference
Max pull2637 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
