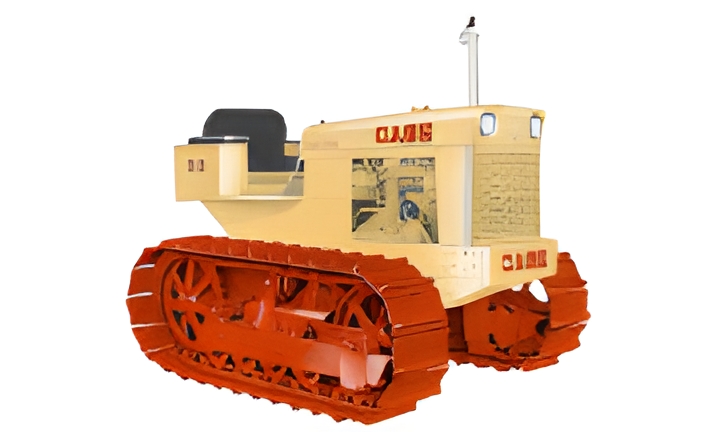

The J.I. Case 310D is a compact tractor with a rated output of 42 hp. It was manufactured in 1960 and features a 4-cylinder petrol liquid-cooled engine. The tractor is equipped with a 3-speed gearbox and a tracked undercarriage. Its listed weight is 2438 kg, making it suitable for jobs of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
2438 kg
Catalogue coverage
Variants represented
2
Richest spec table
50 rows
Recorded power
42 hp
Recorded weight
2438 kg
Transmissions
3-speed gear
Production years
1960-1960
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Agricultural Crawler tractorReference
Total built1703Reference
DrivecrawlerReference
Open operator station.Reference
Variants
310D CLcrawler loaderReference
Engine
J.I. Case 2.4L 4-cyl gasolineReference
Engine (gross)31.3 kWReference
J.I. Case G-148BReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Power (gross)31.3 kWReference
Air cleaneroil bathReference
Compression7.25:1Reference
Torque173.6 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity11.4 LReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Clutch279.4mm dry discReference
Capacities
Fuel37.9 LReference
PTO & Hydraulics
Hydraulic system34.1 LReference
Typeopen centerReference
Capacity34.1 LReference
Pump flow56.8 lpmReference
Rear TypeIReference
Rear lift317 kgReference
Dimensions
Weight2438 kgReference
11-inch tracksReference
Length279 cmReference
Width153 cmReference
Height (hood)140 cmReference
Height (exhaust)175 cmReference
Ground clearance40 cmReference
Clearance (drawbar)34 cmReference
Gauge121 cmReference
Gauge106 cmReference
Gauge152 cmReference
Gauge182 cmReference
J.I. Case 310D attachments
bladeReference
310D Serial Numbers
19603012301Reference
FAQ: How to read a serial number table.Reference
J.I. Case 310D Tracks
Width27 cmReference
Length on ground144 cmReference
Area on ground0.8 m²Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
