Tractor · 1961Unverified
J.I. Case 310E
J.I. Case 310E — Agricultural Crawler tractor · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Max power
22.0 kW
Weight
5076 to 7545 pounds
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Contracting band brakesReference
Open operator station.Reference
Variants
310E CLcrawler loaderReference
Engine
J.I. Case 3.1L 4-cyl dieselReference
J.I. Case 2.4L 4-cyl gasolineReference
Engine31.3 kWReference
Drawbar (claimed)22.4 kWReference
Belt (claimed)26.8 kWReference
Plows3Reference
Drawbar (tested)22.0 kWReference
J.I. Case G-188DReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke97 x 105 mmReference
Power29.8 kWReference
Air cleaneroil bathReference
Compression17.5:1Reference
Rated RPM1850Reference
Torque173.6 NmReference
Torque RPM1350Reference
Starter volts12Reference
Coolant capacity12.3 LReference
J.I. Case G-148BReference
gasolineReference
Displacement2.4 LReference
Bore/Stroke86 x 105 mmReference
Power31.3 kWReference
Fuel systemupdraft carburetorReference
Compression7.25:1Reference
Torque RPM1200Reference
Coolant capacity11.4 LReference
Power at rated engine speed27.5 kWReference
Max power22.0 kWReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Clutch279.4mm dry discReference
PTO & Hydraulics
PTO (tested)27.5 kWReference
Hydraulic system34.1 LReference
Typeopen centerReference
Capacity34.1 LReference
Pressure103.4 barReference
Pump flow56.8 lpmReference
Rear TypeIReference
Rear lift317 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1727Reference
Power at rated PTO speed26.1 kWReference
Capacities
Fuel64.3 LReference
Diameter21 cmReference
Width16 cmReference
RPM1160Reference
Speed786.69 meters/minReference
Dimensions
Wheelbase144 cmReference
Weight5076 to 7545 poundsReference
14-inch tracksReference
Length256 cmReference
Width157 cmReference
Height (exhaust)175 cmReference
Ground clearance38 cmReference
Gauge121 cmReference
Gauge152 cmReference
Gauge182 cmReference
Gas Shipping2302 kgReference
Diesel Shipping2336 kgReference
Operating3422 kgReference

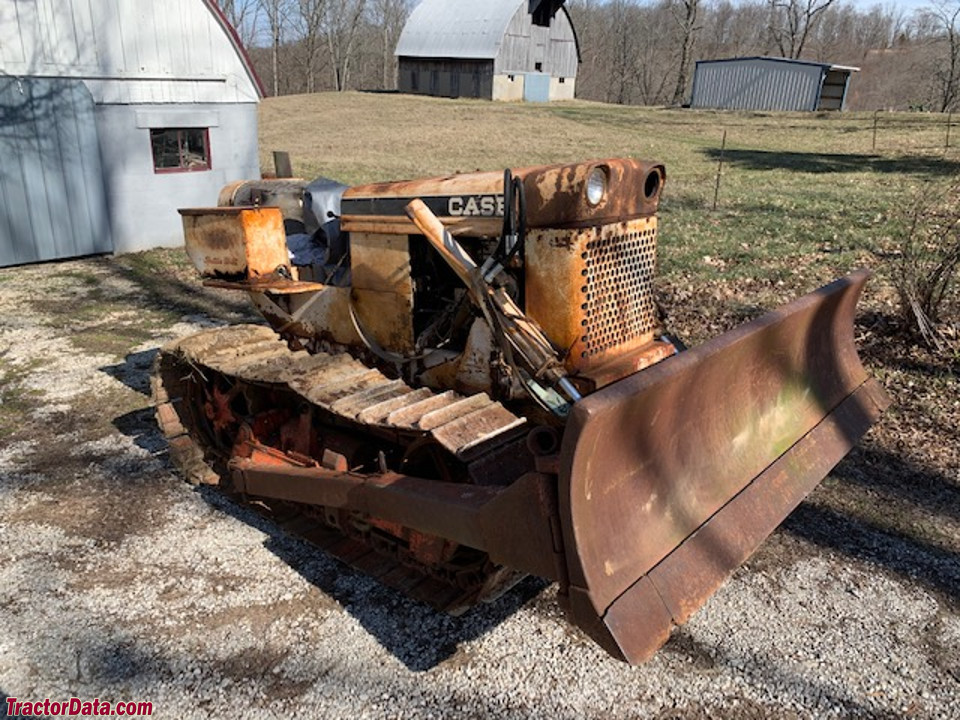

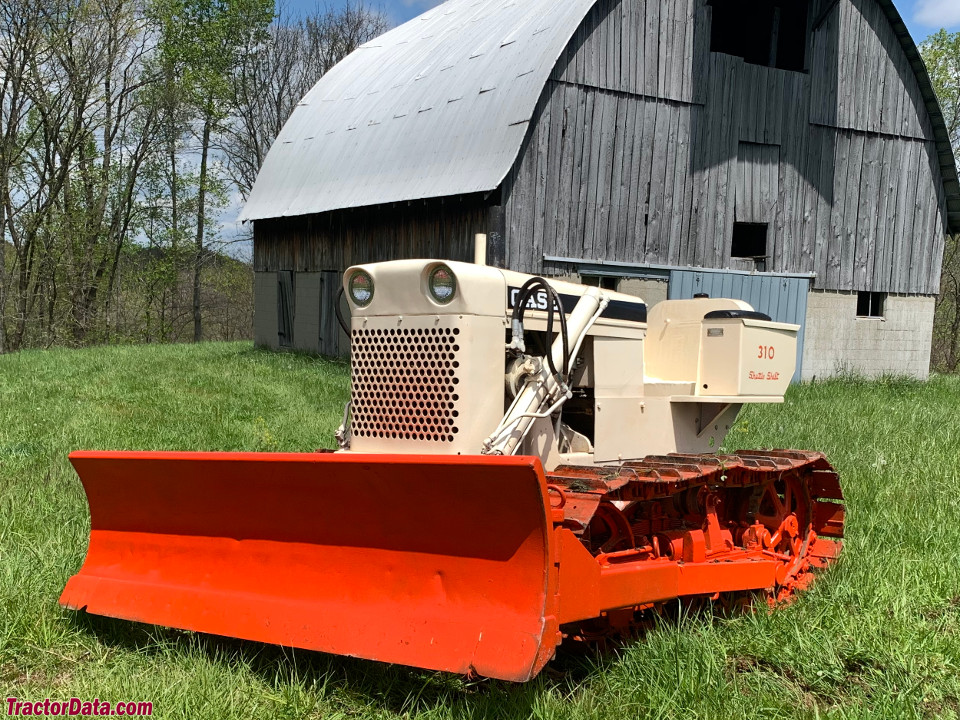

J.I. Case 310E attachments
bladeReference
310E Serial Numbers
19613016001Reference
19623018001Reference
FAQ: How to read a serial number table.Reference
J.I. Case 310E Tracks
Width35 cmReference
Test results
Diesel 3-speed crawlerJuly 25 - August 16, 1961Link: Nebraska Tractor Test 805 fileReference
PTO performanceReference
Fuel use9.5 l/hourReference
Fuel use8.7 l/hourReference
Drawbar performanceReference
Fuel use9.1 l/hourReference
Gear 2 used for power test.Reference
Max pull3202 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
