Tractor · 1984Unverified

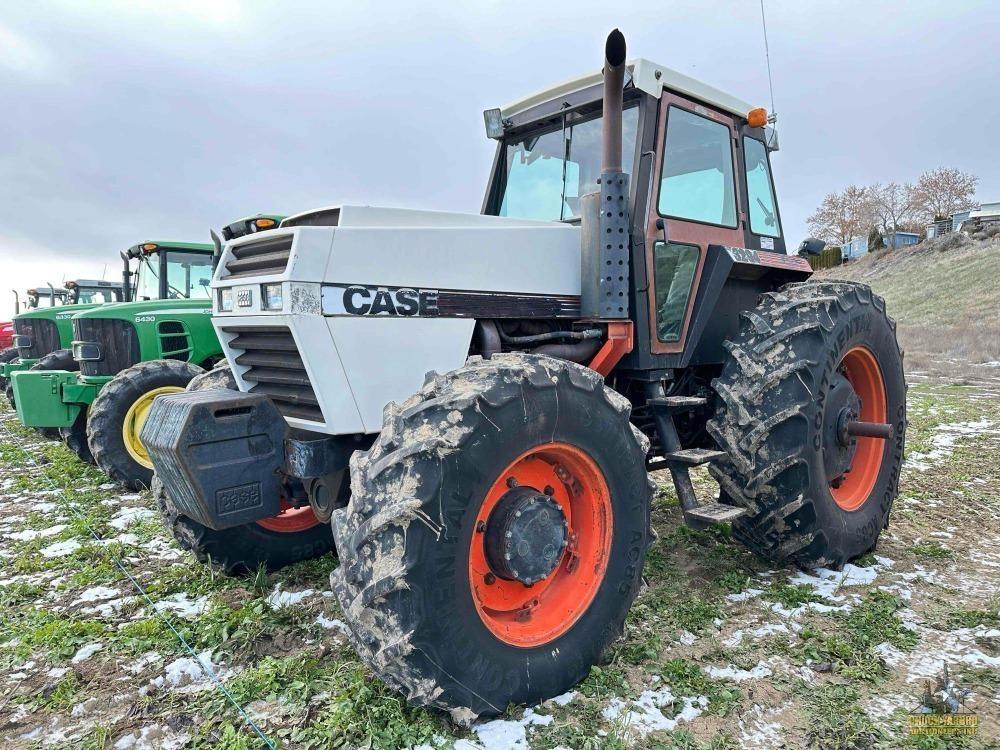

J.I. Case 3294
J.I. Case 3294 — 94 Series · 163 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
163 hp
Max power
105.0 kW
Weight
7711 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price$67,600 (1984)Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Silent Guardian cab with air-conditioning.Reference
Engine
Case 8.3L 6-cyl dieselReference
Engine146.9 kWReference
Drawbar (claimed)106.6 kWReference
Drawbar (tested)105.0 kWReference
CaseReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke117 x 127 mmReference
Power146.9 kWReference
Rated RPM2100Reference
Starter volts12Reference
Oil capacity28.4 LReference
Coolant capacity41.6 LReference
Power at rated engine speed121.3 kWReference
Max power105.0 kWReference
Transmission
12-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears12 forward and 3 reverseReference
Oil capacity106.0 LReference
Four ranges and three power shifts (clutchless on-the-move shifting) in each range.Reference
PTO & Hydraulics
PTO (claimed)120.8 kWReference
PTO (tested)121.3 kWReference
Hydraulic system121.1 LReference
Typeclosed centerReference
Capacity121.1 LReference
Pressure155.1 barReference
Valves2 to 4Reference
Pump flow87.1 lpmReference
Steering flow30.3 lpmReference
Steering press.137.9 barReference
Rear Type3/2Reference
Rear lift (at 24"/610mm)2993 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel246.0 LReference
Fuel94.6 LReference
Dimensions
Wheelbase264 cmReference
Weight7711 kgReference
Front tire11.00x16Reference
Rear tire18.4x38Reference
Ag front11.00x16Reference
Ag rear18.4x38Reference
Ag front14Lx16Reference
Ag rear23.1x34Reference
Ag rear16.9x38Reference
Ag rear20.8x38Reference
Width243 cmReference
Width304 cmReference
Shipping weight7711 kgReference
Max weight8164 kgReference
Bar rear axle88 by 2438 mmReference
Bar rear axle88 by 3048 mmReference
Rear tread152 to 223 cmReference
Rear tread152 to 284 cmReference
3294 Serial Numbers
Location:Inside cab or on right-front frameReference
19849932190Reference
19859938125Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Charging amps105Reference
Battery volts12Reference
Test results
Diesel 12-speed 4WDJune 12 - 22, 1984Link: Nebraska Tractor Test 1528 fileReference
PTO performanceReference
Fuel use40.1 l/hourReference
Drawbar performanceReference
Fuel use39.4 l/hourReference
Gear 2-3 used for power test.Reference
Max pull7367 kgReference
Gear 1-2 used for pull test.Reference
Speeds
With 18.4x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
