Tractor · 1957Unverified

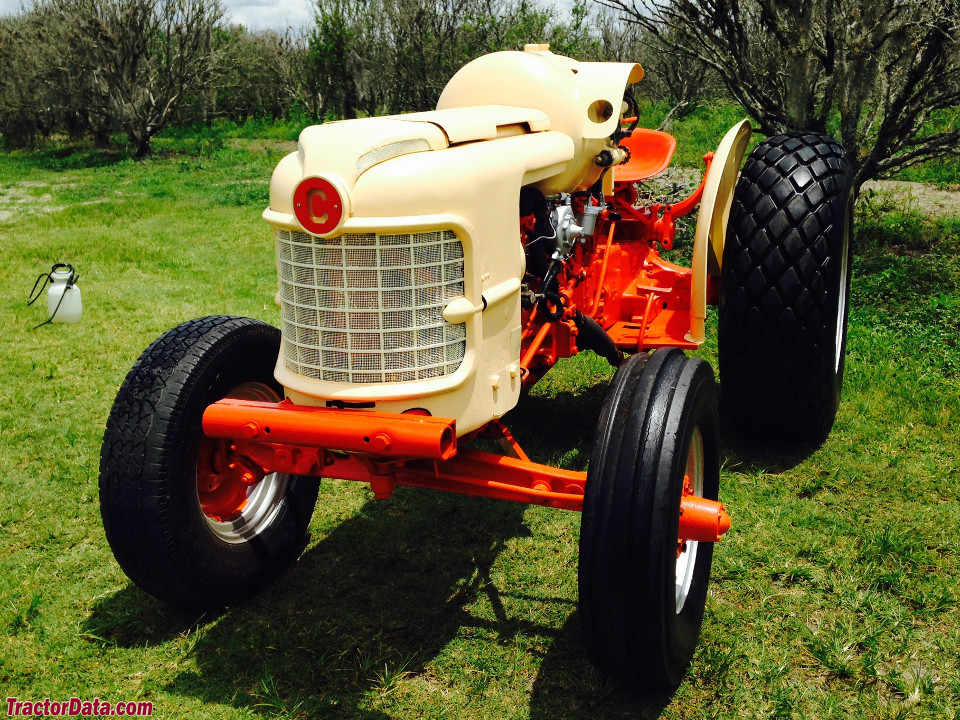

J.I. Case 350
J.I. Case 350 — Utility tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
1939 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Rock Island, Illinois, USAReference
Total built199Reference
Original price was $2,800 in 1958Reference
The Case 350 was an upgraded model 300 with a larger engine. It was available as the model 350 standard or the model 351 row-crop tractor.Reference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Disc brakesReference
Open operator station.Reference
Variants
350utility chassisReference
351row-crop chassisReference
Engine
J.I. Case 2.7L 4-cyl gasolineReference
Fuel tank69.6 LReference
Belt (claimed)31.3 kWReference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke93 x 105 mmReference
Air cleaneroil bathReference
Compression7.25:1Reference
Rated RPM1900Reference
Torque184.4 NmReference
Torque RPM1300Reference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity11.4 LReference
Transmission
12-speed gearReference
4-speed gearReference
TransmissionTripl-RangeReference
TypegearReference
Gears12 forward and 3 reverseReference
Four gears (1-4) plus reverse (R), with three ranges per gear (low, direct, high).Reference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
TypeCase Eagle HitchReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase198 cmReference
Weight1939 kgReference
Front tire6.00-16Reference
Rear tire12-28Reference
Ag front6.00-16Reference
Ag rear12-28Reference
Ag front7.50-16Reference
Ag rear11-28Reference
Length334 cmReference
Width160 cmReference
Height (steering wheel)129 cmReference
Height (hood)133 cmReference
Front tread132 cmReference
Rear tread121 to 193 cmReference
Capacities
Diameter23 cmReference
Width15 cmReference
RPM1290Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
