Tractor · 1958Unverified
J.I. Case 410-B
J.I. Case 410-B — 400B Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
1422 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Rock Island, Illinois, USAReference
Total built798Reference
Advertised as the Case 400 Case-O-Matic, the Case 410B was an upgraded version of the Case 300 utility with the new Case-O-Matic torque converter transmission.Reference
Two-wheel driveReference
Power steeringReference
Differential mechanical dry disc brakesReference
Open operator station.Reference
Variants
410BCase-O-Matic utilityReference
310Bgear utilityReference
411BCase-O-Matic row-cropReference
Engine
J.I. Case 2.4L 4-cyl gasolineReference
Plows3Reference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke86 x 105 mmReference
Fuel systemcarburetorReference
Air cleaneroil bathReference
Compression7.1:1Reference
Rated RPM2050Reference
Idle RPM500-2125Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity12.3 LReference
SparkplugChampion D-16Reference
Sparkplug gap0.635 mmReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.356 mmReference
Oil capacity4.7 LReference
Oil change100 hReference
Transmission
8-speed torque converterReference
4-speed torque converterReference
TransmissionCase-O-Matic Dual RangeReference
Typetorque converterReference
Gears8 forward and 2 reverseReference
Clutchhydraulic discReference
TransmissionCase-O-Matic gearReference
Gears4 forward and 1 reverseReference
TransmissionCase-O-Matic shuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)27.6 kWReference
Hydraulic system11.4 LReference
Typeopen centerReference
Capacity11.4 LReference
Pressure82.7 barReference
TypeEagle HitchReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM541@1970Reference
Capacities
Fuel52.2 LReference
Diameter26 cmReference
Width15 cmReference
RPM1180Reference
Speed932.69 meters/minReference
Dimensions
Wheelbase191 cmReference
Weight1422 kgReference
Front tire6.00-16Reference
Rear tire11-24Reference
Ag front6.00-16Reference
Ag rear11-24Reference
Ag front7.50-16Reference
Ag rear10-24Reference
Ag rear13-24Reference
Length332 cmReference
Width156 cmReference
Height (steering wheel)140 cmReference
Front tread120 cmReference
Rear tread121 to 172 cmReference
J.I. Case 410-B attachments

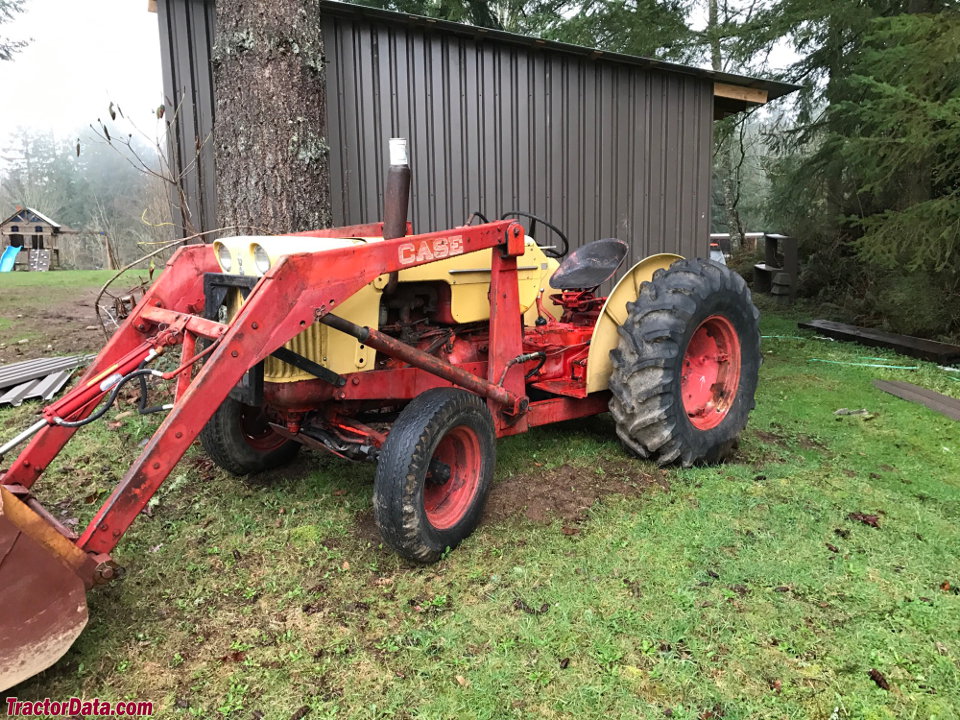

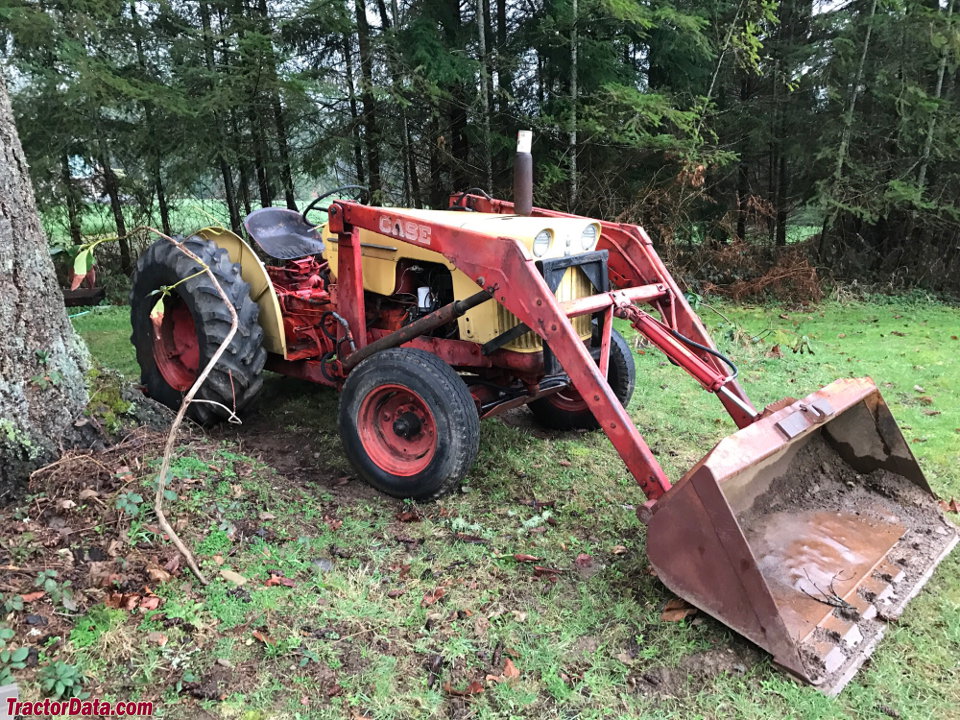

front-end loaderReference
410-B Serial Number Location
Serial number plate on the left side of the tractor's instrument panel.Reference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Battery volts12Reference
Battery AH50Reference
Speeds
With 11-24 rear tires.Reference
With 13-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
