J.I. Case 411-B
J.I. Case 411-B — 400B Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Max power
22.2 kW
Weight
1972 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Row-Crop tractorReference
Built in Rock Island, Illinois, USAReference
Original price was $3,300 in 1960Reference

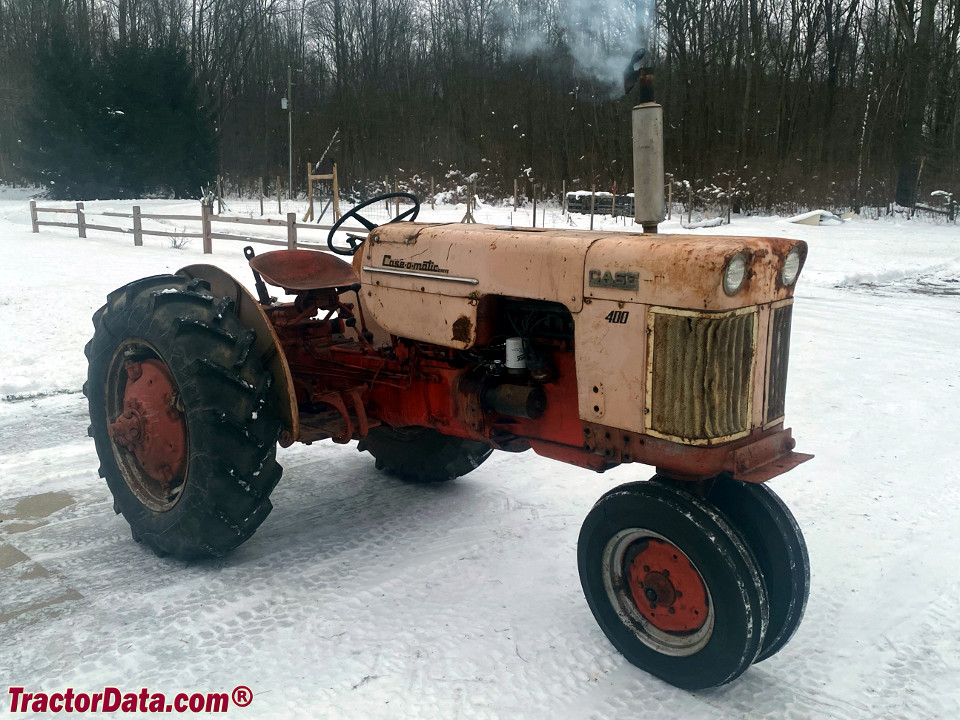

Advertised as the Case 400 Case-O-Matic, the Case 411B was an upgraded version of the Case 300 row-crop with the new Case-O-Matic torque converter transmission.Reference
Two-wheel driveReference
Manual steeringReference
Differential mechanical dry disc brakesReference
Open operator station.Reference
Variants
411BCase-O-Matic row-cropReference
311Bgear row-cropReference
410BCase-O-Matic utilityReference
Engine
J.I. Case 2.4L 4-cyl gasolineReference
Plows3Reference
Drawbar (tested)22.2 kWReference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke86 x 105 mmReference
Fuel systemcarburetorReference
Air cleaneroil bathReference
Compression7.1:1Reference
Rated RPM2050Reference
Idle RPM500-2125Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity12.3 LReference
SparkplugChampion D-16Reference
Sparkplug gap0.635 mmReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.356 mmReference
Oil capacity4.7 LReference
Oil change100 hReference
Power at rated engine speed27.7 kWReference
Max power22.2 kWReference
Transmission
8-speed torque converterReference
4-speed torque converterReference
TransmissionCase-O-Matic Dual RangeReference
Typetorque converterReference
Gears8 forward and 2 reverseReference
Clutchhydraulic discReference
TransmissionCase-O-Matic gearReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)27.6 kWReference
PTO (tested)27.7 kWReference
Hydraulic system11.4 LReference
Typeopen centerReference
Capacity11.4 LReference
Pressure82.7 barReference
TypeEagle HitchReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM541@1970Reference
Capacities
Fuel52.2 LReference
Diameter26 cmReference
Width15 cmReference
RPM1180Reference
Speed932.69 meters/minReference
Dimensions
Wheelbase214 cmReference
Wheelbase201 cmReference
Weight1972 kgReference
Front tire5.50-16Reference
Rear tire11-28Reference
Ag front5.50-16Reference
Ag rear11-28Reference
Ag rear10-28Reference
Ag rear12-28Reference
Length330 cmReference
Length323 cmReference
Width202 cmReference
Height (steering wheel)154 cmReference
Operating weight1972 kgReference
Ballasted weight3716 kgReference
Clearance (rear axle)54 cmReference
Front tread13/29 cmReference
Front tread132 to 203 cmReference
Front tread121 to 182 cmReference
Front tread111 to 162 cmReference
Rear tread121 to 223 cmReference
J.I. Case 411-B attachments
front-end loaderReference
411-B Serial Number Location
Serial number plate on the left side of the tractor's instrument panel.Reference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Battery volts12Reference
Battery AH50Reference
Test results
Gasoline 8-speed 2WDMarch 20 - April 16, 1959Link: Nebraska Tractor Test 689 fileReference
PTO performanceReference
Fuel use13.2 l/hourReference
Drawbar performanceReference
Fuel use12.5 l/hourReference
Gear 5 used for power test.Reference
Max pull2697 kgReference
Gear 1 used for pull test.Reference
Speeds
With 11-28 rear tires.Reference
