Tractor · 1955Unverified

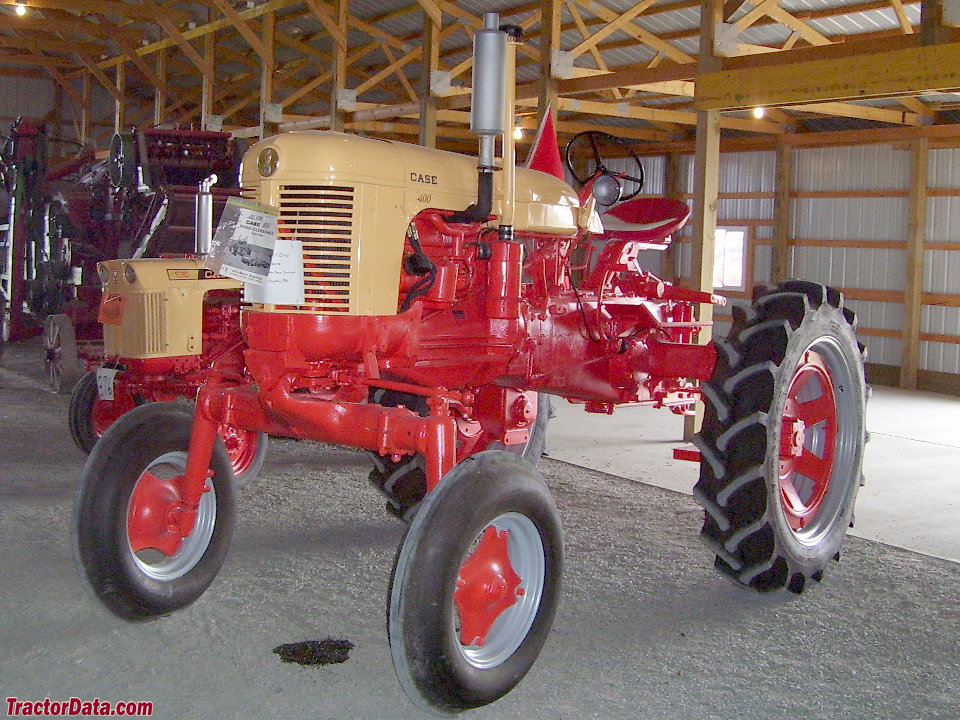

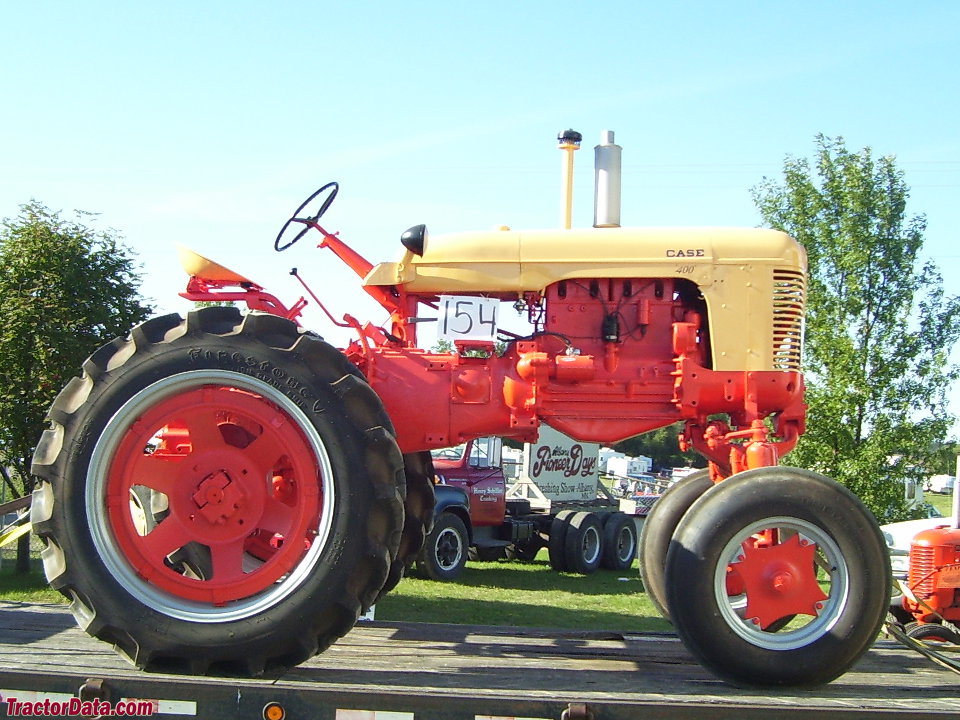

J.I. Case 413
J.I. Case 413 — 400 Series · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
2951 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
High-Clearance tractorReference
Built in Racine, Wisconsin, USAReference
Total built58Reference
Original price was $4,300 in 1958Reference
Two-wheel driveReference
Open operator station.Reference
Variants
400diesel standardReference
401diesel row-cropReference
402diesel vineyardReference
403diesel high-cropReference
405diesel orchardReference
410gasoline standardReference
411gas row-cropReference
413gas high-cropReference
420diesel industrialReference
Engine
J.I. Case 4.1L 4-cyl gasolineReference
Belt (claimed)37.3 kWReference
Plows4 (14-inch)Reference
J.I. CaseReference
gasolineReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke102 x 127 mmReference
Fuel systemcarburetorReference
Air cleaneroil bathReference
Compression6.5:1Reference
Rated RPM1500Reference
Idle RPM600-1665Reference
Firing order1-3-4-2Reference
Starter volts6Reference
Coolant capacity28.0 LReference
SparkplugChampion 8Reference
Sparkplug gap0.635 mmReference
Point gap0.508 mmReference
Intake valve clearance0.305 mmReference
Exhaust valve clearance0.508 mmReference
Oil capacity8.5 LReference
Transmission
8-speedReference
TransmissionPowr-rangeReference
Gears8 forward and 2 reverseReference
Oil capacity56.8 LReference
Oil typeSAE 90Reference
Four gears plus reverse, with high and low ranges. All gears and ranges selected by a single lever. A "belt-neutral" position lies between the high and low ranges, intended for stationary work.Reference
Capacities
Fuel79.5 LReference
Diameter26 cmReference
Width18 cmReference
RPM1128Reference
Speed945.18 meters/minReference
PTO & Hydraulics
Hydraulic system8.5 LReference
Hydraulic system9.8 LReference
Typeopen centerReference
Capacity8.5 LReference
Capacity9.8 LReference
Pressure41.4 barReference
Valves2Reference
Total flow45.4 lpmReference
TypeCase Eagle HitchReference
Rear PTOindependentReference
Clutchmechanical wet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM558@1500Reference
Dimensions
Wheelbase234 cmReference
Weight2951 kgReference
Front tire7.50-20Reference
Rear tire12-38Reference
Ag front7.50-20Reference
Ag rear12-38Reference
Ag rear13-38Reference
Width212 cmReference
Height (hood)205 cmReference
Height (exhaust)276 cmReference
Front tread138 to 201 cmReference
Rear tread152 to 228 cmReference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Battery volts6Reference
Speeds
With 12-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
