Tractor · 1960Unverified
J.I. Case 430
J.I. Case 430 — 430 Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
1417 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
FactoriesRock Island, Illinois, USAReference
FactoriesRacine, Wisconsin, USAReference
Original price was $4,400 in 1969Reference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Mechanical band/disc brakesReference
Open operator stationReference
Variants
430standard-front dieselReference
431row-crop dieselReference
440standard-front gasReference
441row-crop gasReference
445industrialReference
Engine
J.I. Case 3.1L 4-cyl dieselReference
Fuel tank49.2 LReference
Plows3Reference
J.I. CaseReference
dieselReference
4-cylinderReference
liquid-cooled overhead valveReference
Displacement3.1 LReference
Bore/Stroke97 x 105 mmReference
Air cleaneroil bathReference
Compression17.5:1Reference
Rated RPM1750Reference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity12.8 LReference
Transmission
4-speed unsynchronized gearReference
12-speed unsynchronized gearReference
8-speed mechanical shuttleReference
Typeunsynchronized gearReference
Gears4 forward and 1 reverseReference
Clutch254mm dry discReference
TransmissionTripl-RangeReference
Gears12 forward and 3 reverseReference
Tripl-Range adds three ranges (low, direct, and high) to the basic four-speed transmission.Reference
TransmissionDual-Range ShuttleReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Clutch279.4mm dry discReference
Four gears in two ranges with mechanical shuttle.Reference
PTO & Hydraulics
PTO (claimed)25.4 kWReference
TypeDual-ControlReference
Valves1Reference
Pump flow32.2 lpmReference
Rear TypeIReference
ControlDraft-o-Matic draft controlReference
TypeCase Eagle HitchReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase191 cmReference
Weight1417 kgReference
Front tire6.00x16Reference
Rear tire11x24Reference
Ag front6.00x16Reference
Ag front7.50x16Reference
Ag rear11x24Reference
Ag rear13x24Reference
Length330 cmReference
Width155 cmReference
Height (hood)128 cmReference
Shipping weight1417 kgReference
Front tread120 cmReference
Rear tread121 to 193 cmReference
Rear tread147/167 cmReference

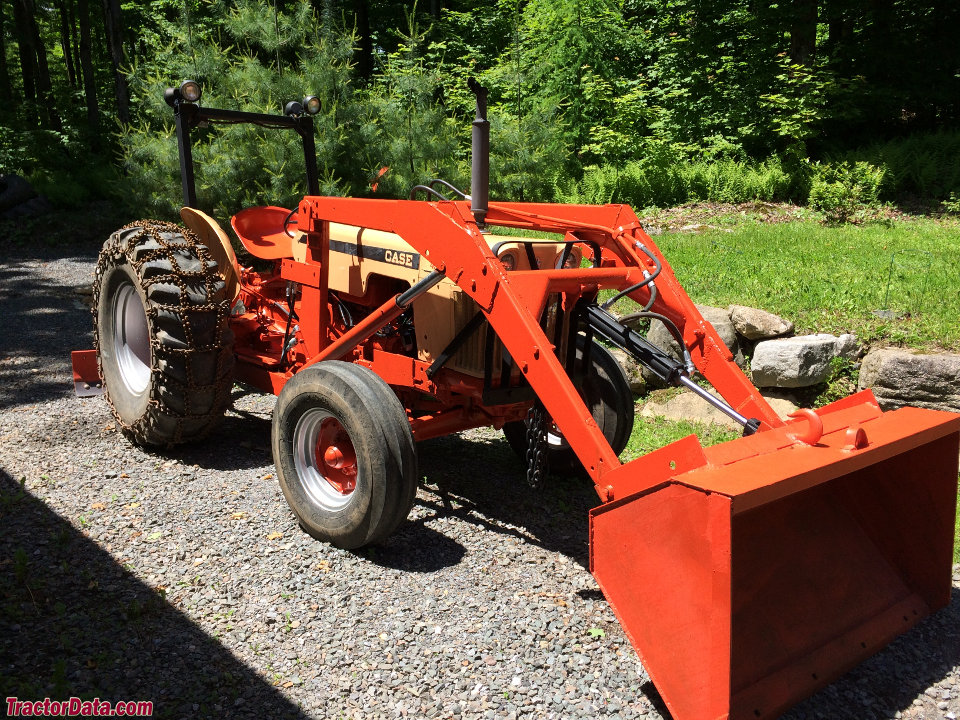

J.I. Case 430 attachments
front-end loaderReference
430 Serial Numbers
Location:Plate on instrument panelReference
19606144001Reference
19616162601Reference
19628190001Reference
19638208001Reference
19648229001Reference
19658253501Reference
19668279001Reference
19678306501Reference
19688332101Reference
19698356251Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter26 cmReference
Width15 cmReference
RPM1190Reference
Speeds
With 10-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
