Industrial Tractor · 1983Unverified

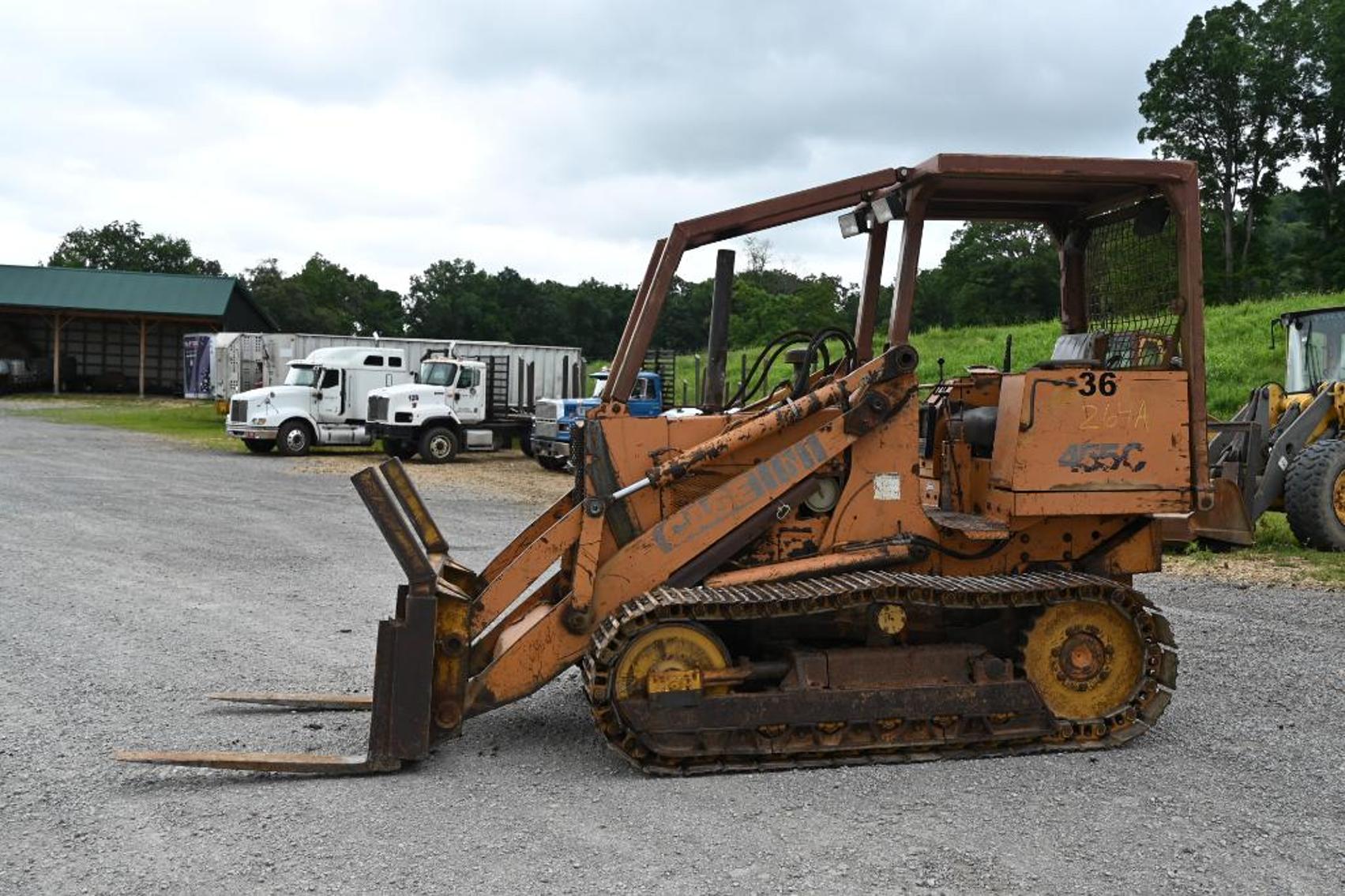

J.I. Case 455C

Name: J.I. Case 455C
Brand: J.I. Case

J.I. Case 455C — Crawler Loader · 71 hp. Reference specifications; pending source verification.

The J.I. Case 455C is an industrial tractor model with a rated output of 71 hp, positioning it in the middle of its class for power. It was produced from 1983 to 1985 and features a 4-cylinder diesel liquid-cooled engine, coupled with a powershift transmission that drives a tracked undercarriage. The listed weight of the 455C is 6546 kg, and it is suited for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

71 hp

Weight

6546 kg

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

71 hp

Recorded weight

6546 kg

Transmissions

4-speed power shift

Production years

1983-1985

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerJ.I. CaseReference

Crawler LoaderReference

DrivecrawlerReference

Final drivesbull gearReference

Hydraulic disc brakesReference

Four-post ROPS.Reference

Variants

450CdozerReference

455Ctrack loaderReference

Engine

Case 3.9L 4-cyl dieselReference

Engine (gross)52.9 kWReference

Engine (net)47.0 kWReference

Case 4-390Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke102 x 120 mmReference

Power (net)47.0 kWReference

Power (gross)52.9 kWReference

Rated RPM2100Reference

Torque252.2 NmReference

Torque RPM1200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity10.4 LReference

Coolant capacity15.6 LReference

Transmission

4-speed power shiftReference

Typepower shiftReference

Gears4 forward and reverseReference

Capacities

Fuel104.1 LReference

PTO & Hydraulics

Hydraulic system32.2 LReference

Typeopen centerReference

Capacity32.2 LReference

Pressure172.4 barReference

Pump flow83.3 lpmReference

Dimensions

Weight6546 kgReference

14-inch tracksReference

Length401 cmReference

Width167 cmReference

Height (steering wheel)190 cmReference

Height (ROPS)251 cmReference

Operating weight6546 kgReference

Ground clearance32 cmReference

Gauge134 cmReference

J.I. Case 455C attachments

front-end loaderReference

455C Serial Numbers

19833075913Reference

19843076101Reference

19853080001Reference

FAQ: How to read a serial number table.Reference

Electrical

Charging systemalternatorReference

Charging amps42Reference

J.I. Case 455C Tracks

Width35 cmReference

Length on ground180 cmReference

Area on ground1.2 m²Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
