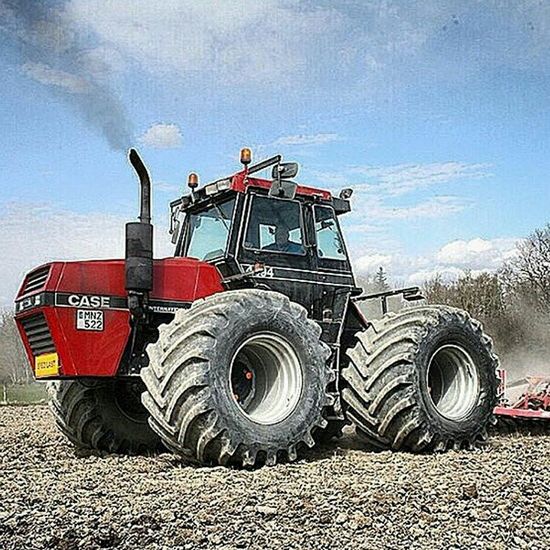

J.I. Case 4694
J.I. Case 4694 — 4WD 94 Series · 220 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
220 hp
Max power
141.5 kW
Weight
10119 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Four-wheel Drive (4WD) tractorReference
Built in Racine, Wisconsin, USAReference
Original price$93,000 (1985)Reference
Drive4x4 4WDReference
Steeringhydraulic, front, rear or four-wheel crab steeringReference
Hydraulic dry disc brakesReference
Silent Guardian cab standard.Reference
Engine
Case 8.3L 6-cyl dieselReference
Engine194.6 kWReference
Drawbar (tested)141.5 kWReference
CaseReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke117 x 127 mmReference
Power194.6 kWReference
Air cleanerdual paper elementsReference
Compression15.8:1Reference
Rated RPM2200Reference
Torque922.1 NmReference
Torque RPM1650Reference
Starter volts12Reference
Oil capacity22.7 LReference
Coolant capacity45.4 LReference
Power at rated engine speed163.8 kWReference
Max power141.5 kWReference
Transmission
12-speedReference
Transmissionpartial power shiftReference
Gears12 forward and 4 reverseReference
Clutchhydraulic wet discReference
Four ranges (1-4) with three power shift gears (1-3) plus reverse in each range. Both shift levers mounted on the dashboard. Range shift lever is to the left in a H-pattern. Gear shift is an inline pattern on the right.Reference
PTO & Hydraulics
PTO (claimed)163.3 kWReference
PTO (tested)163.8 kWReference
Hydraulic system58.7 LReference
Typeclosed centerReference
Capacity58.7 LReference
Pressure162.0 barReference
Valves2 to 4Reference
Total flow117.3 lpmReference
Rear TypeIII (optional)Reference
Rear lift (at 24"/610mm)5783 kgReference
Rear PTOindependent (optional)Reference
Rear PTO Type1000Reference
Engine RPM1000@2200Reference
Capacities
Fuel484.5 LReference
Dimensions
Wheelbase259 cmReference
Weight10119 kgReference
Front tire18.4-34Reference
Rear tire18.4-34Reference
Ag front18.4-34Reference
Ag rear18.4-34Reference
Length571 cmReference
Width243 cmReference
Width363 cmReference
Height (exhaust)317 cmReference
Operating weight10119 kgReference
Ballasted weight11444 kgReference
Ground clearance45 cmReference
Front tread193 to 353 cmReference
Rear tread193 to 353 cmReference
4694 Serial Numbers
Location:Data plates located at forward-right corner in top of the tractor cab.Reference
19848865000Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDOctober 18 - 26, 1979Link: Nebraska Tractor Test 1329 fileReference
PTO performanceReference
Fuel use54.5 l/hourReference
Drawbar performanceReference
Fuel use53.7 l/hourReference
Gear 3-2 used for power test.Reference
Max pull11142 kgReference
Gear 1-2 used for pull test.Reference
Speeds
With 23.1x30 tires.Reference
