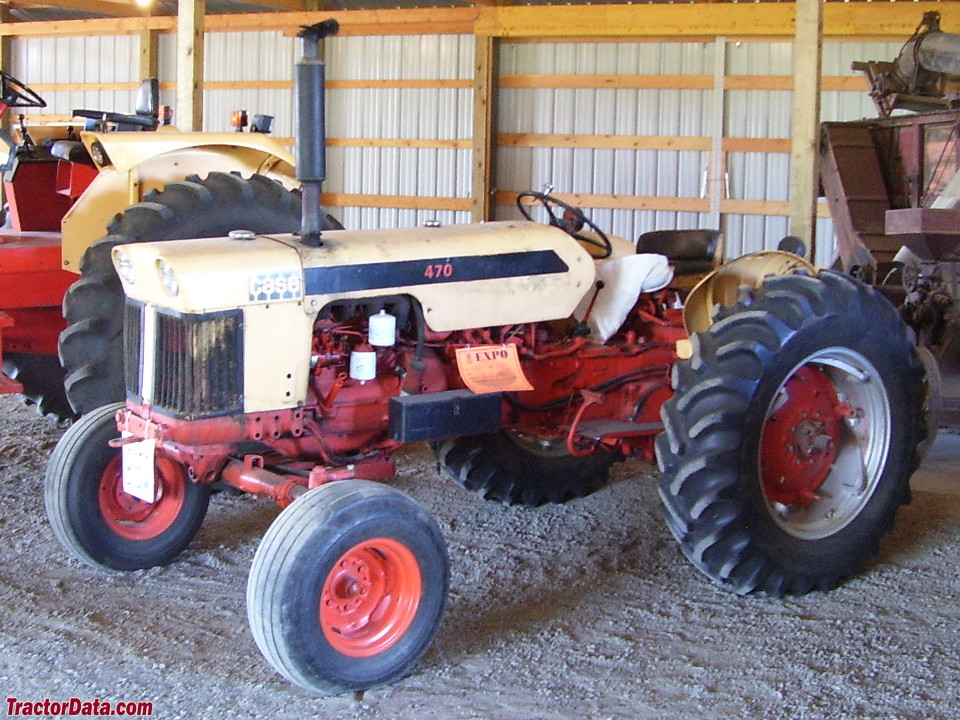

J.I. Case 470
J.I. Case 470 — Utility tractor · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Max power
21.7 kW
Weight
1632 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Racine, Wisconsin, USAReference
Total built1,808Reference
The Case 470 was very similar to the Case 430 series tractors that is replaced.Reference
Two-wheel driveReference
Steeringhydrostatic powerReference
Open operator station.Reference
Engine
J.I. Case 3.1L 4-cyl dieselReference
J.I. Case 2.4L 4-cyl gasolineReference
Fuel tank49.2 LReference
Plows3Reference
Drawbar (tested)22.6 kWReference
J.I. Case G188DReference
dieselReference
4-cylinderReference
liquid-cooledReference
mode G148BReference
Displacement3.1 LReference
Bore/Stroke97 x 105 mmReference
Compression17.5:1Reference
Rated RPM1750Reference
Sparkplug gap0.635 mmReference
Point gap0.508 mmReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.508 mmReference
J.I. Case G148BReference
gasolineReference
Displacement2.4 LReference
Bore/Stroke86 x 105 mmReference
Compression7.1:1Reference
Power at rated engine speed24.7 kWReference
Max power21.7 kWReference
Power at rated engine speed25.6 kWReference
Max power22.6 kWReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)25.4 kWReference
PTO (tested)25.6 kWReference
Pump flow32.2 lpmReference
Rear TypeIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Weight1632 kgReference
470 Serial Numbers
19698356251Reference
19708650001Reference
19718674001Reference
19728691801Reference
FAQ: How to read a serial number table.Reference
Test results
NTTL 774: gasoline 4-speed 2WDReference
NTTL 785: diesel 4-speed 2WDReference
Gasoline 4-speed 2WDOctober 13 - 27, 1960Link: Nebraska Tractor Test 774 fileReference
PTO performanceReference
Fuel use10.6 l/hourReference
Drawbar performanceReference
Fuel use11.0 l/hourReference
Gear 3 used for power test.Reference
Max pull1978 kgReference
Gear 1 used for pull test.Reference
Diesel 4-speed 2WDApril 6 - 15, 1961Link: Nebraska Tractor Test 785 fileReference
Fuel use7.6 l/hourReference
Fuel use7.9 l/hourReference
Max pull2043 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
