Industrial Tractor · 1989Unverified

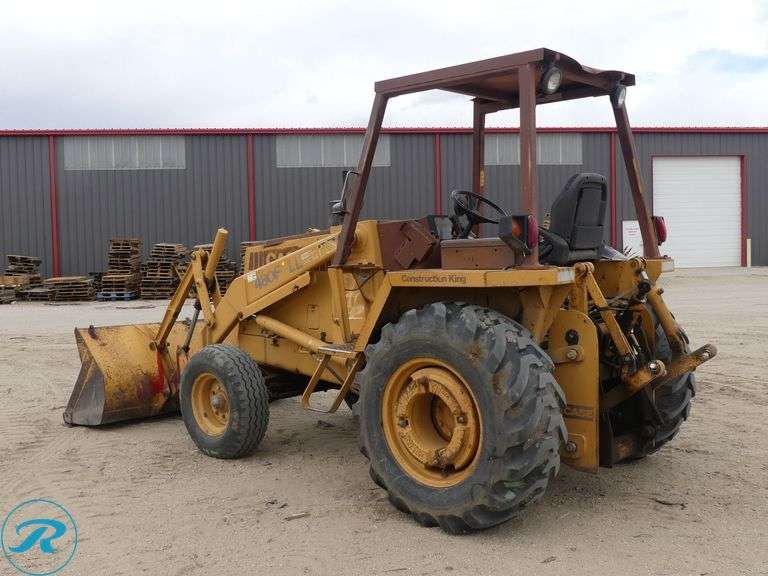

J.I. Case 480F LL
J.I. Case 480F LL — Industrial tractor · 69 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
69 hp
Weight
3842 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Industrial tractorReference
Two- or four-wheel driveReference
Final drivesbull gearReference
Power steeringReference
Hydraulic disc brakesReference
Four-post ROPS.Reference
Engine
J.I. Case 3.9L 4-cyl dieselReference
Fuel tank88.9 LReference
Engine (gross)51.5 kWReference
Engine (net)47.0 kWReference
J.I. Case 4-390Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 120 mmReference
Power (net)47.0 kWReference
Power (gross)51.5 kWReference
Air cleanerdryReference
Compression17:1Reference
Torque252.2 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity11.0 LReference
Coolant capacity17.0 LReference
Transmission
4-speed power shuttleReference
Typepower shuttleReference
Gears4 forward and reverseReference
Power shuttle with torque converter. Synchronized upshift from 2-to-3 and 3-to-4. Synchronized downshift from 4-to-3.Reference
PTO & Hydraulics
PTO (claimed)23.9 kWReference
Typeopen centerReference
Pressure168.9 barReference
Pump flow87.1 lpmReference
Rear TypeII/IReference
Rear lift (at ends)2357 kgReference
Rear lift (at 24"/610mm)1292 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
2WD Wheelbase203 cmReference
4WD Wheelbase204 cmReference
Weight3842 kgReference
Front tire7.50-16Reference
Rear tire14.9-24Reference
2WD Industrial front7.50-16Reference
4WD Industrial front12-16.5Reference
2WD Industrial rear14.9-24Reference
4WD Industrial rear157.5L-24Reference
Industrial front8.00-16Reference
Industrial front11L-16Reference
Industrial rear16.9-24Reference
Length299 cmReference
Width191 cmReference
Ground clearance32 cmReference
2WD Front tread150 to 157 cmReference
4WD Front tread170 cmReference
Rear tread157 to 168 cmReference
Shipping3842 kgReference
2WD Max front axle4082 kgReference
4WD Max front axle5670 kgReference
Max rear axle6123 kgReference
Steering wheel175 cmReference
J.I. Case 480F LL attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery CCA650Reference
Battery volts12Reference
J.I. Case 480F LL Height
ROPS243 cmReference
Exhaust266 cmReference
Speeds
With 14.9x24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
