Tractor · 1984Unverified

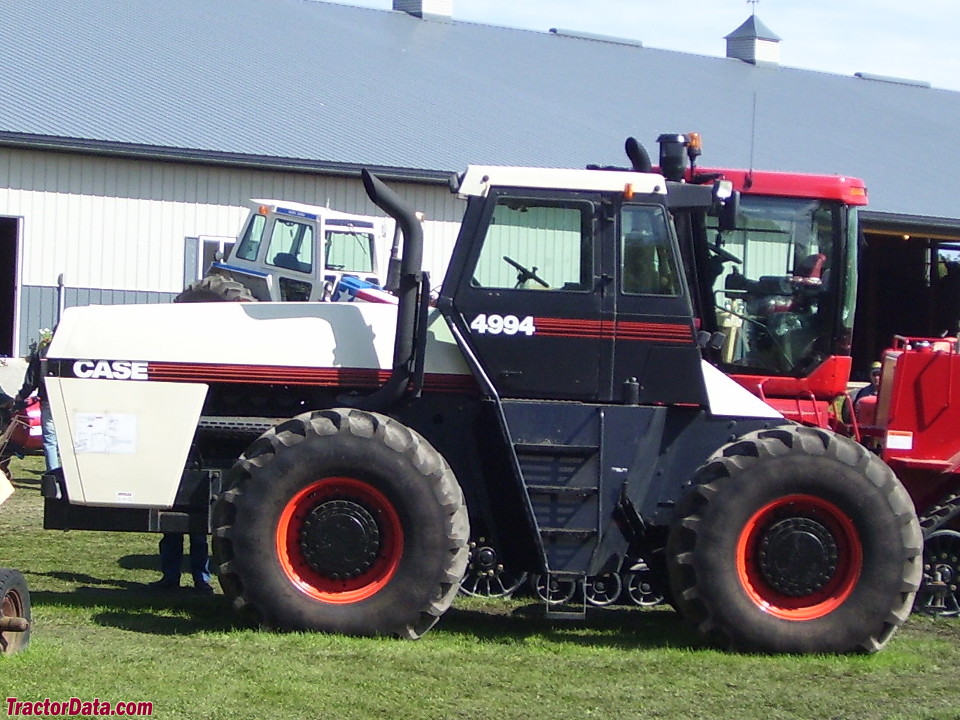

J.I. Case 4994
J.I. Case 4994 — 4WD 94 Series · 344 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
344 hp
Max power
219.4 kW
Weight
26500 to 31315 pounds
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Four-wheel Drive (4WD) tractorReference
Built in Racine, Wisconsin, USAReference
Total built224Reference
Original price was $132,050 in 1985Reference
Drive4x4 4WDReference
Steeringhydraulic, front, rear or four-wheel crab steeringReference
Hydraulic dual caliper disc brakesReference
Silent Guardian cab standardReference
Engine
Saab-Scania 14.2L 8-cyl dieselReference
Engine298.3 kWReference
Drawbar (tested)219.4 kWReference
Saab-ScaniaReference
turbocharged dieselReference
8-cylinderReference
liquid-cooledReference
Displacement14.2 LReference
Bore/Stroke127 x 140 mmReference
Power298.3 kWReference
Air cleanerdual paper elementsReference
Compression15.5:1Reference
Rated RPM2100Reference
Torque1545.8 NmReference
Torque RPM1300Reference
Firing order1-5-4-2-6-3-7-8Reference
Starter volts12Reference
Coolant capacity83.3 LReference
Intake valve clearance0.457 mmReference
Exhaust valve clearance0.787 mmReference
Oil capacity25.6 LReference
Power at rated engine speed256.5 kWReference
Max power219.4 kWReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Oil capacity59.6 LReference
Oil capacity55.8 LReference
Oil typeCase Powergard PTFReference
Electronically-controlled Case powershift transmission operated with single control lever and inching pedal. The inching pedal must be depressed to move from park/neutral into first gear. Tractor must be moving in first gear before higher gears can be selected. Gear changes made by pushing control lever into upshift or downshift position. Control lever can be held in upshift/downshift position for multiple gear changes.Reference
PTO & Hydraulics
PTO (claimed)256.5 kWReference
PTO (tested)256.5 kWReference
Hydraulic system99.4 LReference
Typeclosed centerReference
Capacity99.4 LReference
Pressure137.9 barReference
Valves2 to 4Reference
Pump flow132.5 lpmReference
Total flow132.5 lpmReference
Steering flow75.7 lpmReference
Steering press.137.9 barReference
Rear TypeIV/IVN (optional)Reference
Rear lift (at 24"/610mm)7257 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2100Reference
Capacities
Fuel1135.5 LReference
Front hubs12.8 LReference
Front diff.16.1 LReference
Rear hubs12.8 LReference
Rear diff.21.3 LReference
Max capacity18144 kgReference
Dimensions
Wheelbase316 cmReference
Weight26500 to 31315 poundsReference
Front tire24.5-32Reference
Rear tire24.5-32Reference
Ag front24.5-32Reference
Ag rear24.5-32Reference
Ag front20.8-38Reference
Ag front20.8-42Reference
Ag front23.1-34Reference
Ag front30.5-32Reference
Ag rear20.8-38Reference
Ag rear20.8-42Reference
Ag rear23.1-34Reference
Ag rear30.5-32Reference
Length664 cmReference
Width304 cmReference
Height (exhaust)351 cmReference
Clearance (drawbar)36 cmReference
Shipping12020 kgReference
Operating14204 kgReference
Ballasted18112 kgReference
4994 Serial Numbers
Location:Data plates located at forward-right corner in top of the tractor cab.Reference
19848865000Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps105Reference
Batteries2Reference
Battery volts12Reference
Battery AH300Reference
Battery Group30HReference
Test results
Diesel 12-speed 4WDJune 9 - 27, 1984Link: Nebraska Tractor Test 1530 fileReference
PTO performanceReference
Fuel use76.5 l/hourReference
Drawbar performanceReference
Fuel use76.1 l/hourReference
Gear 6 used for power test.Reference
Max pull15657 kgReference
Gear 2 used for pull test.Reference
Speeds
With 20.5-32 tiresReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
