Tractor · 1958Unverified
J.I. Case 510-B
J.I. Case 510-B — 500B Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
1735 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Standard-tread tractorReference
Built in Rock Island, Illinois, USAReference
Total built370Reference
Two-wheel driveReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Variants
510ButilityReference
511Brow-cropReference
Engine
J.I. Case 2.7L 4-cyl gasolineReference
J.I. Case G164Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke93 x 105 mmReference
Air cleaneroil bathReference
Compression7.3:1Reference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity11.4 LReference
Oil capacity4.7 LReference
Oil change100 hReference
Transmission
4-speed gearReference
8-speed mechanical shuttleReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutch279.4mm dry discReference
Oil capacity41.6 LReference
TransmissionDual RangeReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Four gears in two ranges with mechanical shuttle.Reference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
Hydraulic system11.4 LReference
Typeopen centerReference
Capacity11.4 LReference
Pressure82.7 barReference
TypeCase Eagle HitchReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1925Reference
Capacities
Fuel52.2 LReference
Diameter23 cmReference
Width16 cmReference
RPM1360Reference
Speed1002.79 meters/minReference
Dimensions
Wheelbase199 cmReference
Weight1735 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Ag front7.50-16Reference
Ag rear10-28Reference
Ag rear12-28Reference
Ag rear13-28Reference
Length308 cmReference
Width160 cmReference
Height (steering wheel)161 cmReference
Front tread132 cmReference
Rear tread121 to 218 cmReference

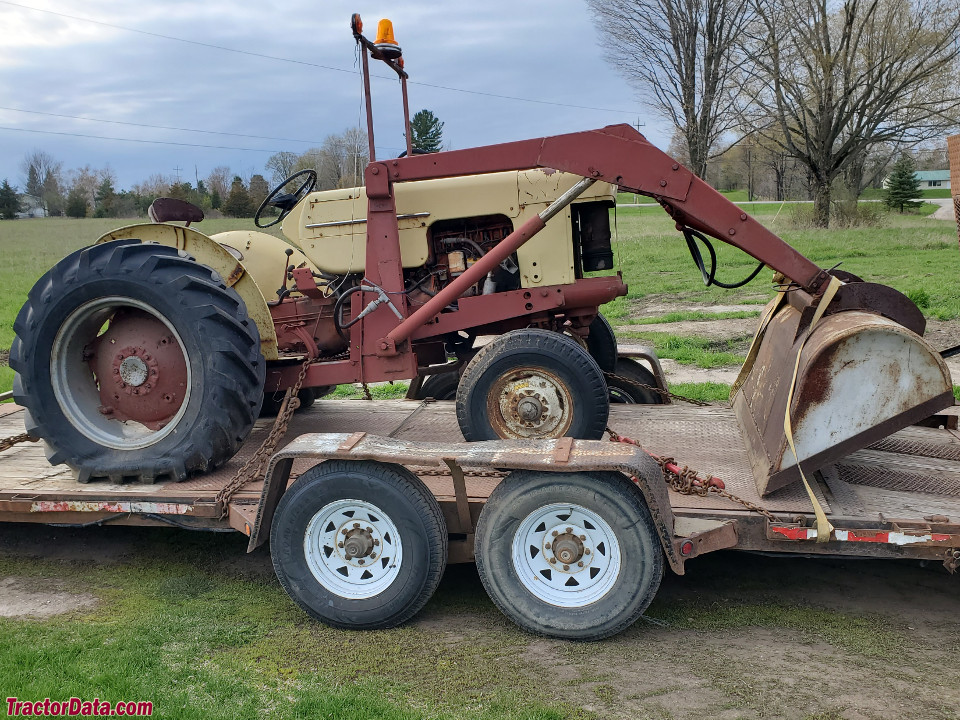

J.I. Case 510-B attachments
front-end loaderReference
510-B Serial Numbers
Location:Serial number plate on instrument panelReference
19586095001Reference
19596120001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Battery volts12Reference
Battery AH50Reference
Speeds
With 11-28 rear tires.Reference
With 11-28 rear tires. Reverse speeds are 24% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
