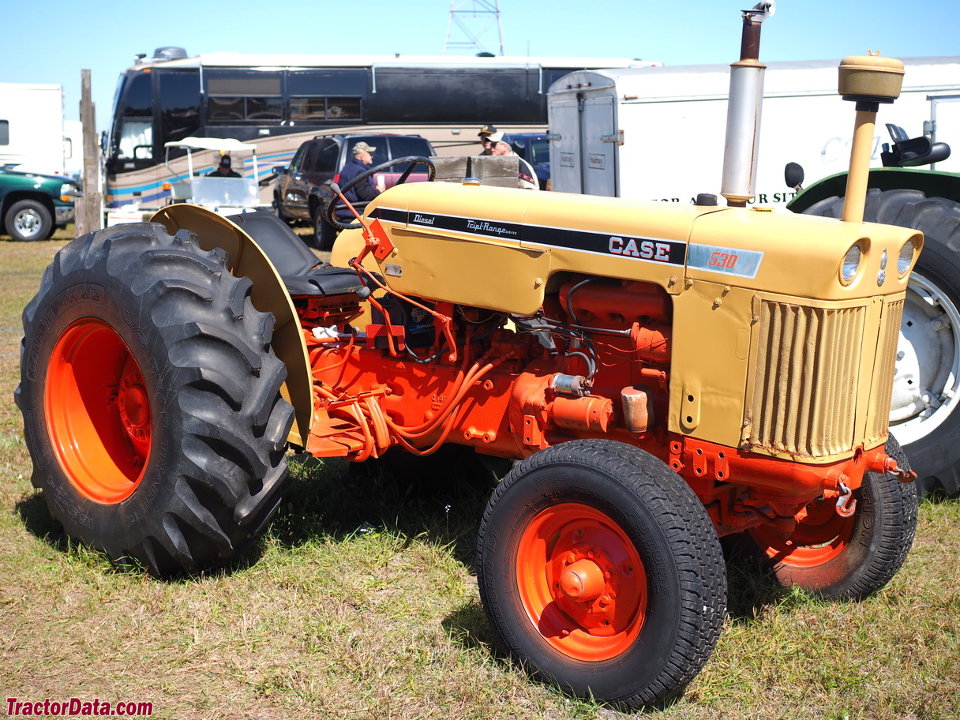

J.I. Case 530
J.I. Case 530 — 530 Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Max power
27.6 kW
Weight
1814 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
FactoriesRacine, Wisconsin, USAReference
FactoriesRock Island, Illinois, USAReference
Original price was $5,700 in 1969Reference
The 530 was also used as the 530CK (Construction King) loader-backhoe, although with significant modifications.Reference
Two-wheel driveReference
Power steeringReference
Mechanical disc brakesReference
Open operator station.Reference
Variants
530diesel standardReference
531diesel row-cropReference
540gas standardReference
541gas row-cropReference
Engine
J.I. Case 3.1L 4-cyl dieselReference
Fuel tank83.3 LReference
Belt (claimed)29.8 kWReference
Plows3-4Reference
Drawbar (tested)27.6 kWReference
J.I. CaseReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke97 x 105 mmReference
Air cleaneroil bathReference
Compression17.5:1Reference
Rated RPM1900Reference
Rated RPM2100 (Case-O-Matic)Reference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity15.6 LReference
Power at rated engine speed30.8 kWReference
Max power27.6 kWReference
Power at rated engine speed30.0 kWReference
Max power26.5 kWReference
Transmission
12-speedReference
8-speed torque converterReference
4-speed gearReference
8-speed mechanical shuttleReference
TransmissionTripl-RangeReference
Gears12 forward and 3 reverseReference
Clutchdry discReference
TransmissionCase-O-MaticReference
Typetorque converterReference
Gears8 forward and 2 reverseReference
Clutchhydraulic discReference
TypegearReference
Gears4 forward and 1 reverseReference
TransmissionDual-Range ShuttleReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Clutchdry dsicReference
Four gears (1-4) in two ranges (low/high) with mechanical shuttle.Reference
PTO & Hydraulics
PTO (tested)30.8 kWReference
Rear TypeIReference
Controlposition and depth controlReference
Rear PTOtransmissionReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed29.4 kWReference
Power at rated PTO speed29.1 kWReference
Dimensions
Wheelbase207 cmReference
Weight1814 kgReference
Front tire5.50-16Reference
Rear tire12.4-28Reference
Ag front5.50-16Reference
Ag rear12.4-28Reference
Ag front6.00x16Reference
Ag front6.00x14Reference
Ag front7.50x15Reference
Ag rear12.4x24Reference
Ag rear13.6x28Reference
Ag rear14.9x28Reference
Ag rear14.9x24Reference
Ag rear16.9x24Reference
Length330 cmReference
Width160 cmReference
Height (hood)134 cmReference
Shipping weight1814 kgReference
Clearance (front axle)46 cmReference
Front tread121 to 182 cmReference
Rear tread121 to 193 cmReference
J.I. Case 530 attachments
front-end loaderReference
530 Serial Numbers
Location:Serial number plate on tractor instrument panel.Reference
19606144001Reference
19616162601Reference
19628190001Reference
19638208001Reference
19648229001Reference
19658253501Reference
19668279001Reference
19678306501Reference
19688332101Reference
19698356251Reference
FAQ: How to read a serial number table.Reference
Test results
NTTL 772: diesel 12-speed 2WDReference
NTTL 786: diesel Case-O-Matic 2WDReference
Diesel 12-speed 2WDOctober 12 - 27, 1960Link: Nebraska Tractor Test 772 fileReference
PTO performanceReference
Fuel use9.5 l/hourReference
Fuel use9.1 l/hourReference
Drawbar performanceReference
Gear 5 used for power test.Reference
Max pull2777 kgReference
Gear 1 used for pull test.Reference
Diesel Case-O-Matic 2WDApril 6 - 18, 1961Link: Nebraska Tractor Test 786 fileReference
Fuel use10.2 l/hourReference
Fuel use9.8 l/hourReference
Max pull2747 kgReference
