Tractor · 1970Unverified

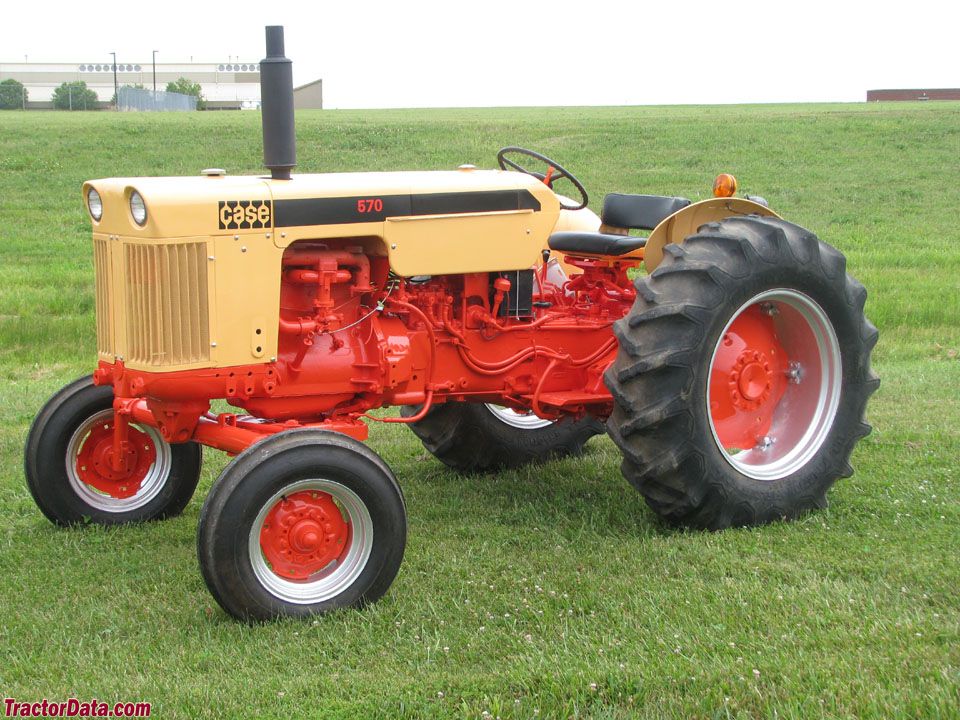

J.I. Case 570
J.I. Case 570 · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Max power
24.5 kW
Weight
1769 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Built in Racine, Wisconsin, USAReference
Original price$5,700 (1973)Reference
The J.I. Case 570 is very similar to the J.I. Case 530 series tractors it replaced.Reference
Two-wheel driveReference
Steeringhydrostatic powerReference
Open operator station.Reference
Engine
J.I. Case 2.6L 4-cyl gasolineReference
J.I. Case 3.1L 4-cyl dieselReference
Fuel tank83.3 LReference
Plows3-4Reference
Drawbar (tested)27.6 kWReference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke89 x 105 mmReference
Compression7.42:1Reference
Rated RPM1900Reference
Coolant capacity13.2 LReference
dieselReference
Displacement3.1 LReference
Bore/Stroke97 x 105 mmReference
Air cleaneroil bathReference
Compression17.5:1Reference
Starter volts12Reference
Power at rated engine speed29.5 kWReference
Max power24.5 kWReference
Power at rated engine speed30.8 kWReference
Max power27.6 kWReference
Transmission
4-speed gearReference
8-speed gearReference
8-speed mechanical shuttleReference
TypegearReference
Gears4 forward and 1 reverseReference
Gears8 forward and 2 reverseReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (tested)30.8 kWReference
Pump flow35.2 lpmReference
Rear TypeIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed28.5 kWReference
Power at rated PTO speed29.4 kWReference
Dimensions
Weight1769 kgReference
570 Serial Numbers
19708650001Reference
FAQ: How to read a serial number table.Reference
Test results
NTTL 771: gasoline 12-speed 2WDReference
NTTL 772: diesel 12-speed 2WDReference
Gasoline 12-speed 2WDOctober 11 - 27, 1960Link: Nebraska Tractor Test 771 fileReference
PTO performanceReference
Fuel use12.5 l/hourReference
Fuel use11.7 l/hourReference
Drawbar performanceReference
Fuel use12.1 l/hourReference
Gear 5 used for power test.Reference
Max pull2646 kgReference
Gear 1 used for pull test.Reference
Diesel 12-speed 2WDOctober 12 - 27, 1960Link: Nebraska Tractor Test 772 fileReference
Fuel use9.5 l/hourReference
Fuel use9.1 l/hourReference
Max pull2777 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
