Tractor · 1957Unverified

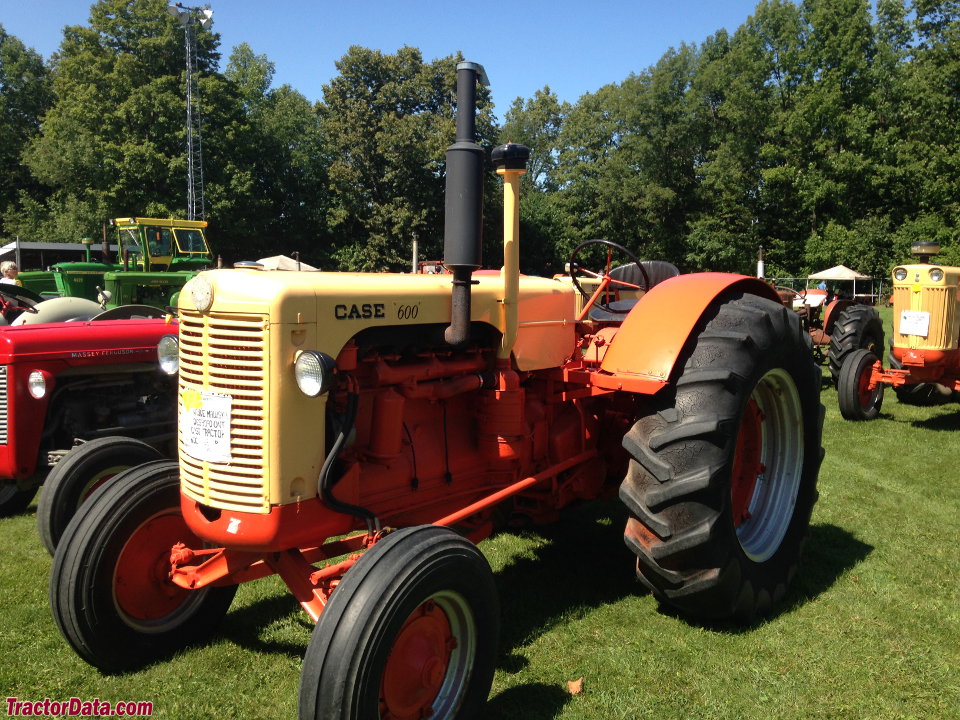

J.I. Case 600
J.I. Case 600 — 600 Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
3402 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Total built1,515Reference
Two-wheel driveReference
Steeringpower assistReference
Disc brakesReference
Open operator station.Reference
Variants
600dieselReference
610LP-gasReference
620industrialReference
Engine
J.I. Case 6.2L 6-cyl dieselReference
Belt (claimed)52.2 kWReference
J.I. CaseReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.2 LReference
Bore/Stroke102 x 127 mmReference
Air cleaneroil bathReference
Pre-heatingether injectionReference
Compression15:1Reference
Rated RPM1500Reference
Idle RPM600-1635Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity53.0 LReference
Intake valve clearance0.305 mmReference
Exhaust valve clearance0.305 mmReference
Oil capacity13.2 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
Clutchmechanical wet discReference
Oil capacity60.6 LReference
Oil typeSAE 90Reference
Capacities
Fuel113.6 LReference
Diameter34 cmReference
Width20 cmReference
RPM944Reference
Speed1017.42 meters/minReference
PTO & Hydraulics
Hydraulic system13.2 LReference
Typeopen centerReference
Capacity13.2 LReference
Pressure69.0 barReference
Pump flow56.8 lpmReference
Rear PTOindependentReference
Clutchmechanical wet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1475Reference
Dimensions
Wheelbase221 cmReference
Weight3402 kgReference
Front tire7.50-18Reference
Rear tire15-34Reference
Ag front7.50-18Reference
Ag rear15-34Reference
Ag rear18-26Reference
Ag rear14-30Reference
Ag rear15-30Reference
Length366 cmReference
Ground clearance36 cmReference
Front tread136 cmReference
Rear tread171 cmReference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Charging amps12Reference
Batteries2Reference
Battery volts6Reference
J.I. Case 600 Height
216 cmReference
Hood163 cmReference
Exhaust234 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
