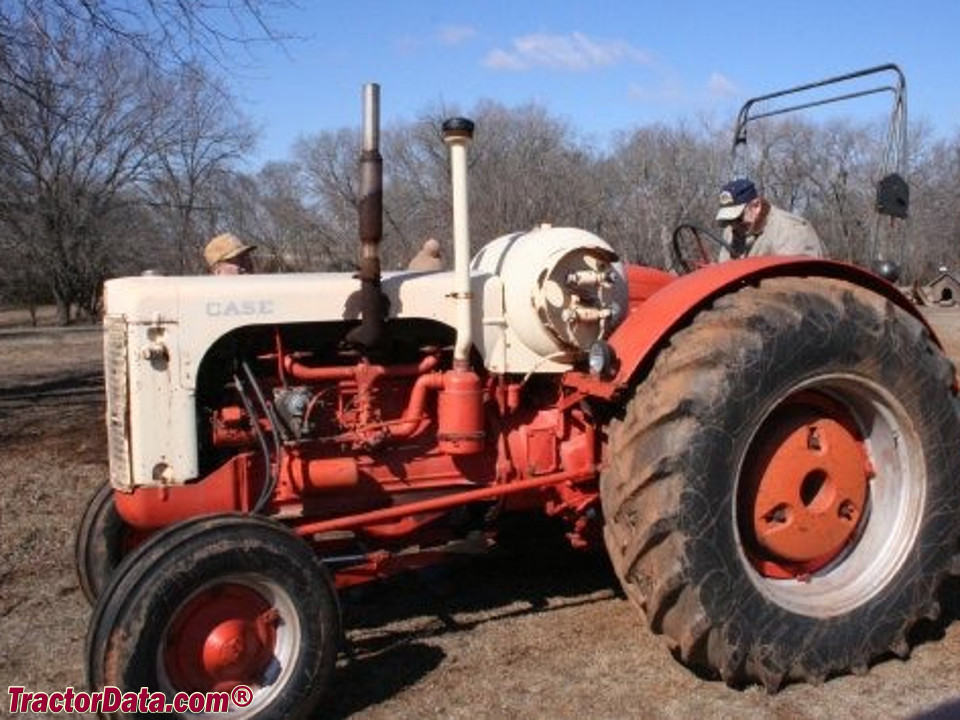

The J.I. Case 610 is a tractor model. This model was manufactured in 1957. It is powered by a 6-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 6-speed gearbox. Listed weight is 3458 kg, and it is aimed at jobs of around varies. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
3458 kg
Catalogue coverage
Variants represented
2
Richest spec table
26 rows
Recorded weight
3458 kg
Transmissions
6-speed gear
Production years
1957-1957
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Total built350Reference
Two-wheel driveReference
Steeringpower assistReference
Open operator station.Reference
Variants
600dieselReference
610LP-gasReference
620industrialReference
Engine
J.I. Case 6.2L 6-cyl LP gasReference
J.I. CaseReference
LP gasReference
6-cylinderReference
liquid-cooledReference
Displacement6.2 LReference
Bore/Stroke102 x 127 mmReference
Air cleaneroil bathReference
Rated RPM1350Reference
Starter typeelectricReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
TypeDuo-ControlReference
Rear PTO Type540Reference
Dimensions
Weight3458 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
