Tractor · 1958Unverified
J.I. Case 610-B
J.I. Case 610-B — 600B Series · 45 hp. Reference specifications; pending source verification.
The J.I. Case 610-B is a tractor model with a rated power of 45 hp, positioning it at the lighter end of its class. It was manufactured between 1958 and 1959. The tractor features a 4-cylinder petrol liquid-cooled engine, paired with two-wheel drive and an 8-speed gearbox. Its operating weight is listed at 1818 kg, making it suitable for operations covering up to 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
1818 kg
Catalogue coverage
Variants represented
2
Richest spec table
74 rows
Recorded power
45 hp
Recorded weight
1818 kg
Transmissions
8-speed torque converter
Production years
1958-1959
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Rock Island, Illinois, USAReference
Total built744Reference
Two-wheel driveReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Variants
610Bstandard frontReference
611Brow-crop frontReference
614BorchardReference
Engine
J.I. Case 2.7L 4-cyl gasolineReference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke90 x 105 mmReference
Air cleaneroil bathReference
Compression7.26:1Reference
Rated RPM2250Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity11.4 LReference
Oil capacity4.7 LReference
Oil change100 hReference
Transmission
8-speed torque converterReference
8-speed shuttleReference
TransmissionCase-O-MaticReference
Typetorque converterReference
Gears8 forward and 2 reverseReference
Oil capacity41.6 LReference
Oil capacity15.1 LReference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
Hydraulic system11.4 LReference
Typeopen centerReference
Capacity11.4 LReference
Pressure82.7 barReference
TypeCase Eagle HitchReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM541@1970Reference
Capacities
Fuel52.2 LReference
Diameter23 cmReference
Width16 cmReference
RPM1360Reference
Speed1002.79 meters/minReference
Dimensions
Wheelbase199 cmReference
Weight1818 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Ag front7.50-16Reference
Ag rear10-28Reference
Ag rear12-28Reference
Ag rear13-28Reference
Length308 cmReference
Width160 cmReference
Height (steering wheel)161 cmReference
Front tread132 cmReference
Rear tread121 to 218 cmReference

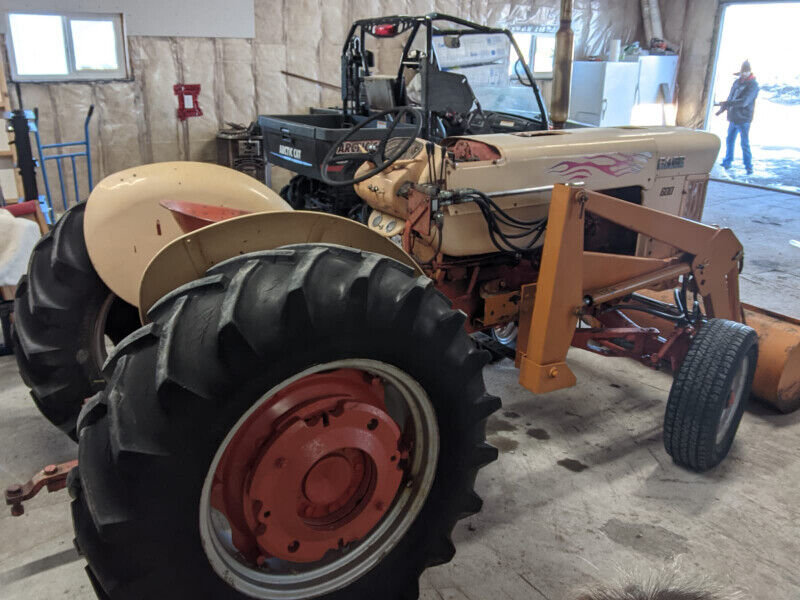

J.I. Case 610-B attachments
front-end loaderReference
610-B Serial Numbers
Location:Serial number plate on instrument panelReference
19586095001Reference
19596120001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Battery volts12Reference
Battery AH50Reference
Speeds
With 11-28 rear tires and torque converter engaged. Speeds are 25% faster with torque converter locked.Reference
With 11-28 rear tires and torque converter engaged. Speeds are 25% faster with torque converter locked. Reverse speeds are 24% faster than forward.Reference
