Tractor · 1958Unverified

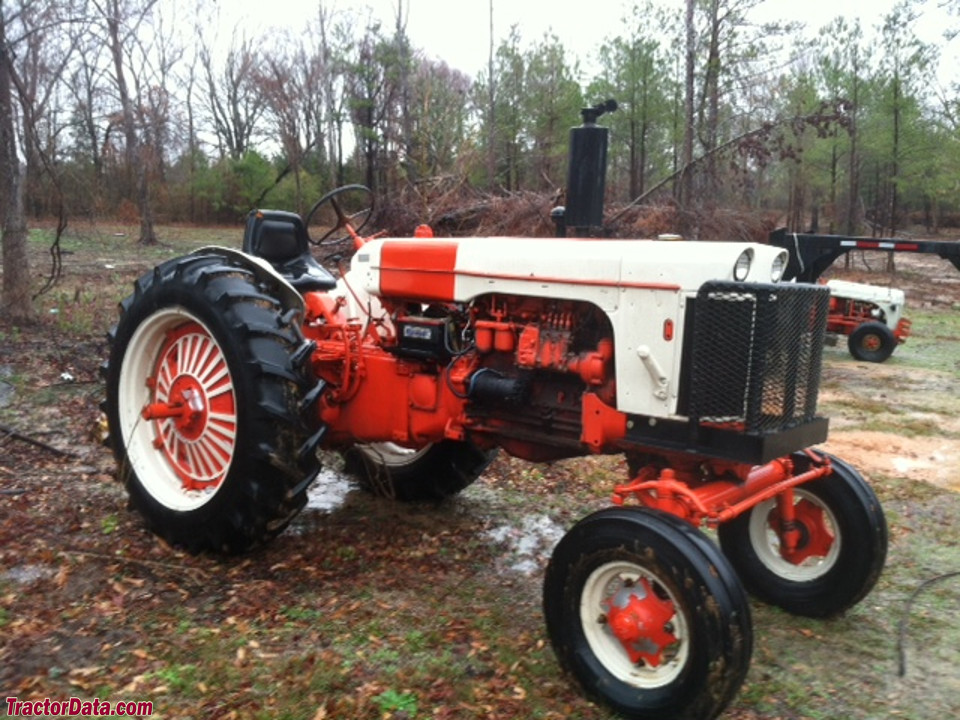

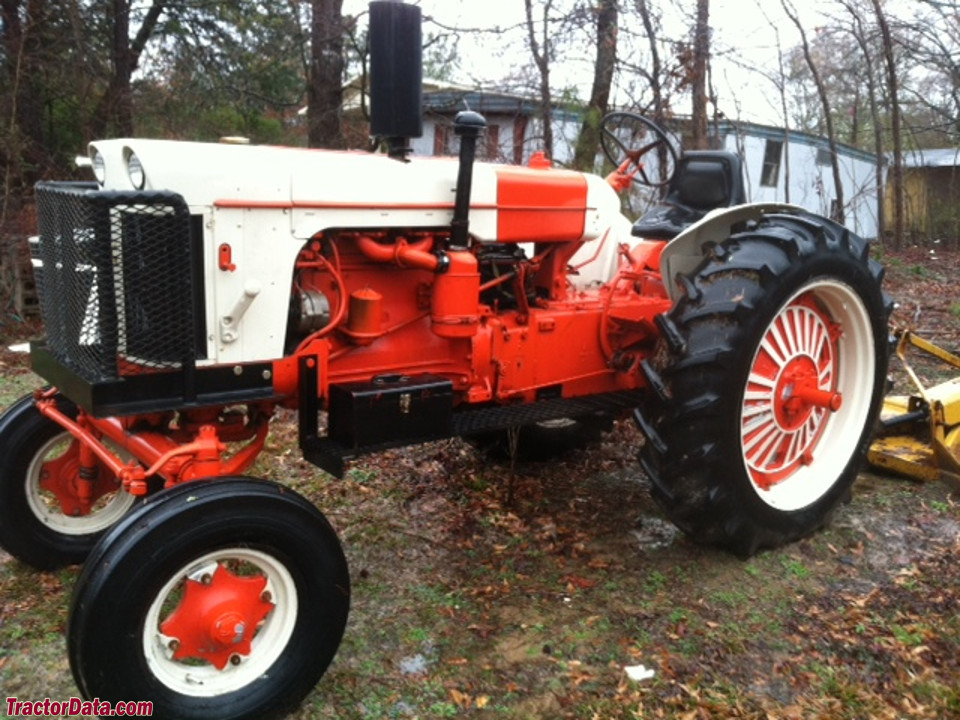

J.I. Case 701-B
J.I. Case 701-B — 700B Series · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Max power
34.6 kW
Weight
3442 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Total built465Reference
Two-wheel driveReference
SteeringpowerReference
Mechanical differential disc brakesReference
Open operator station.Reference
Variants
700Bdiesel standardReference
701Bdiesel row-cropReference
702Bdiesel WesternReference
703Bdiesel high-cropReference
710Bgas standardReference
711Bgas row-cropReference
712Bgas WesternReference
713Bgas high-cropReference
Engine
J.I. Case 4.4L 4-cyl dieselReference
Belt (claimed)40.3 kWReference
Drawbar (tested)34.6 kWReference
J.I. CaseReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Air cleaneroil bathReference
Compression15.0:1Reference
Rated RPM1500Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed38.2 kWReference
Max power34.6 kWReference
Transmission
8-speed gearReference
TransmissionDual-RangeReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (tested)38.2 kWReference
Rear PTO Type540Reference
Power at rated PTO speed37.5 kWReference
Dimensions
Wheelbase234 cmReference
Weight3442 kgReference
Operating weight3442 kgReference
Ballasted weight4184 kgReference
J.I. Case 701-B attachments
front-end loaderReference
701-B Serial Number Location
Serial number plate on the right side of the instrument panel.Reference
Capacities
Diameter26 cmReference
Width18 cmReference
RPM1166Reference
Speed976.88 meters/minReference
Test results
Diesel 8-speed 2WDApril 20 - 29, 1959Link: Nebraska Tractor Test 693 fileReference
PTO performanceReference
Fuel use12.9 l/hourReference
Fuel use12.5 l/hourReference
Drawbar performanceReference
Fuel use13.2 l/hourReference
Gear 5 used for power test.Reference
Max pull3216 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
