Tractor · 1958Unverified

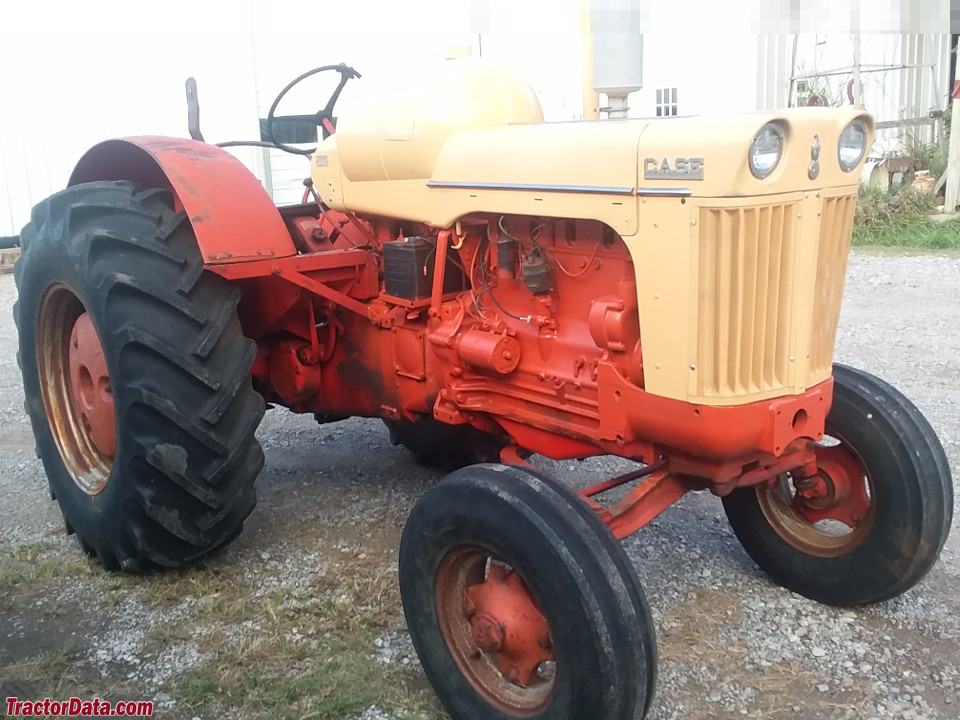

J.I. Case 702-B Western Special
J.I. Case 702-B Western Special — 700B Series · 54 hp. Reference specifications; pending source verification.
The J.I. Case 702-B Western Special is a tractor with a rated power output of 54 horsepower, positioning it at the lower end of its class. It was manufactured between 1958 and 1959. The tractor features a 4-cylinder diesel liquid-cooled engine and two-wheel drive, paired with an 8-speed gearbox. It is suited for operations on up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
54 hp
Transmissions
8-speed gear
Production years
1958-1959
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Total built492Reference
Two-wheel driveReference
SteeringpowerReference
Mechanical disc brakesReference
Open operator station.Reference
Variants
700Bdiesel standardReference
701Bdiesel row-cropReference
702Bdiesel WesternReference
703Bdiesel high-cropReference
710Bgas standardReference
711Bgas row-cropReference
712Bgas WesternReference
713Bgas high-cropReference
Engine
J.I. Case 4.4L 4-cyl dieselReference
Belt (claimed)40.3 kWReference
J.I. CaseReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Air cleaneroil bathReference
Compression15.0:1Reference
Rated RPM1500Reference
Starter typeelectricReference
Transmission
8-speed gearReference
TransmissionDual-RangeReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTO Type540Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
