Tractor · 1958Unverified

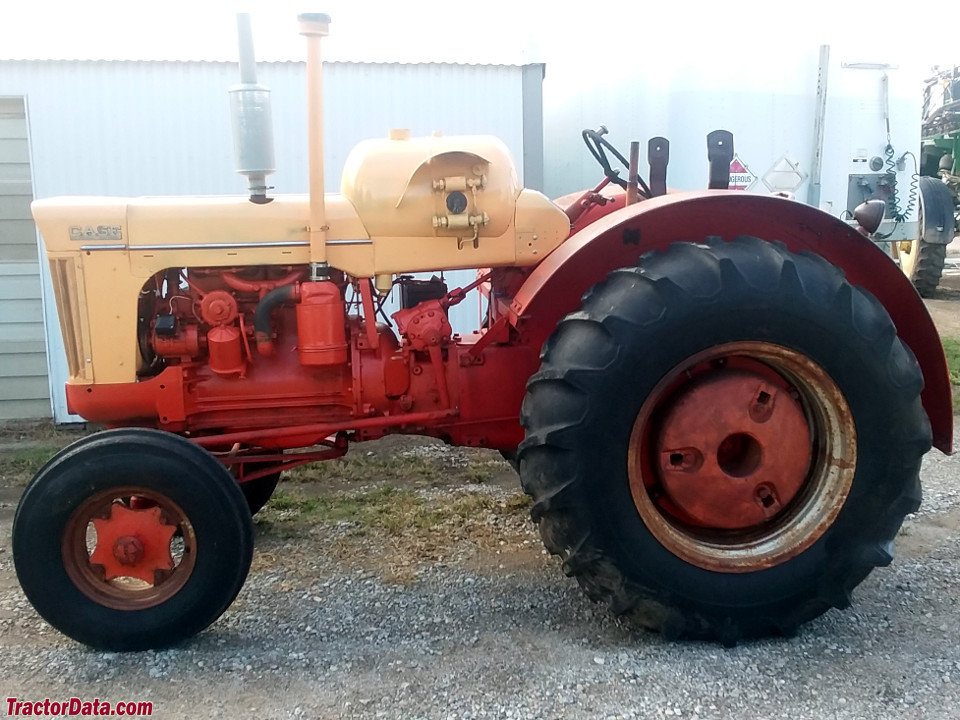

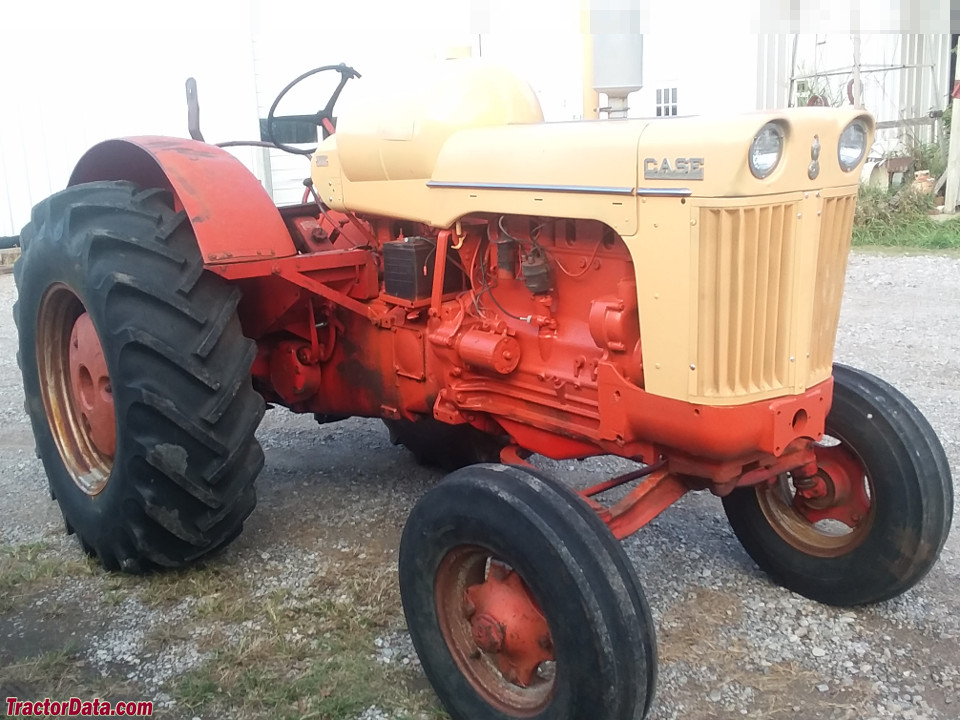

J.I. Case 712-B Western Special
J.I. Case 712-B Western Special — 700B Series · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Total built219Reference
Two-wheel driveReference
SteeringpowerReference
Mechanical disc brakesReference
Open operator station.Reference
Variants
700Bdiesel standardReference
701Bdiesel row-cropReference
702Bdiesel WesternReference
703Bdiesel high-cropReference
710Bgas standardReference
711Bgas row-cropReference
712Bgas WesternReference
713Bgas high-cropReference
Engine
J.I. Case 4.1L 4-cyl gasolineReference
J.I. Case 4.1L 4-cyl LP-gasReference
Belt (claimed)40.3 kWReference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke102 x 127 mmReference
Air cleaneroil bathReference
Compression6.5:1Reference
Rated RPM1500Reference
Starter typeelectricReference
LP-gasReference
Transmission
8-speed gearReference
TransmissionDual-RangeReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTO Type540Reference
712-B Serial Number Location
Serial number plate on the right side of the tractor, just ahead of the dashboard.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
