Tractor · 1960Unverified

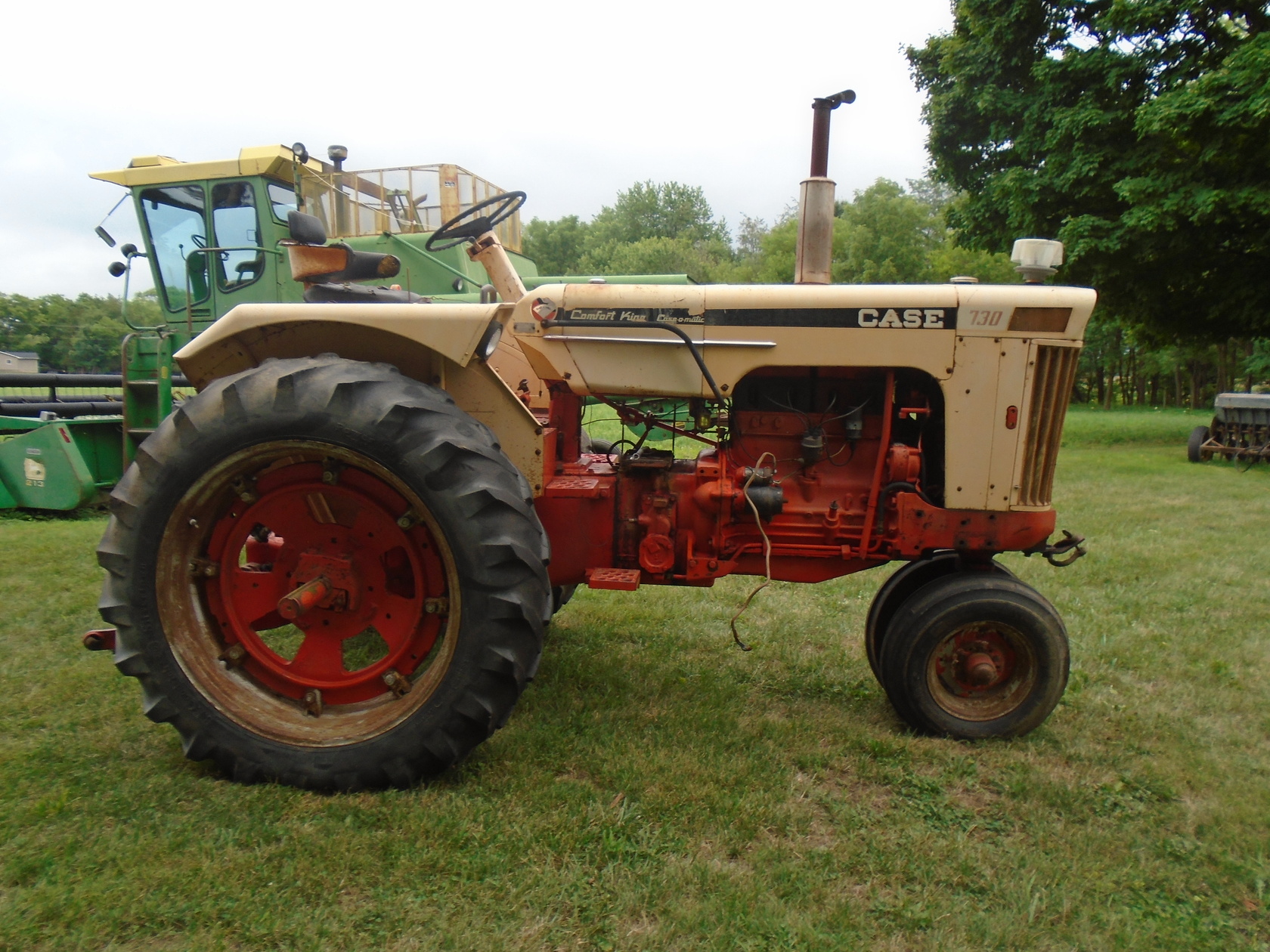

J.I. Case 730
J.I. Case 730 — 730 Series · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Weight
3175 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Original price$5,700 (1969)Reference
The Case 730 often refers to an entire series of tractors, with a number of engine and chassis options. The specific model 730 was the standard-tread diesel version of the Case 730 series.Reference
Two-wheel driveReference
SteeringmanualReference
Steeringpower optionalReference
Open operator station.Reference
Variants
730standard-front dieselReference
731row-crop dieselReference
732Western Special dieselReference
733high-clearance dieselReference
734orchard dieselReference
740standard-front gasReference
741row-crop gasReference
742Western Special gasReference
743high-clearance gasReference
744orchard gasReference
Engine
J.I. Case 4.4L 4-cyl dieselReference
Plows5Reference
J.I. CaseReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Compression15.2:1Reference
Rated RPM1700 (Dual-Range)Reference
Rated RPM1900 (Case-o-Matic)Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity28.4 LReference
Transmission
8-speed torque converterReference
8-speed unsynchronizedReference
TransmissionCase-o-maticReference
Typetorque converterReference
Gears8 forward and 2 reverseReference
TransmissionDual-RangeReference
TypeunsynchronizedReference
Clutchmechanical dry discReference
PTO & Hydraulics
PTO (claimed)41.8 kWReference
Hydraulic system64.3 LReference
Typeopen centerReference
Capacity64.3 LReference
Valves4Reference
Pump flow58.7 lpmReference
Rear TypeIIReference
Rear lift612 kgReference
TypeCase Eagle HitchReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type1000Reference
Capacities
Fuel117.3 LReference
Dimensions
Wheelbase259 cmReference
Weight3175 kgReference
Front tire6.00-16Reference
Rear tire14.9-30Reference
Ag front6.00-16Reference
Ag rear14.9-30Reference
Length396 cmReference
Width223 cmReference
Height213 cmReference
Ground clearance38 cmReference
J.I. Case 730 attachments
front-end loaderReference
730 Serial Numbers
Location:Plate on instrument panelReference
19608160001Reference
19618168801Reference
19628190001Reference
19638208001Reference
19648229001Reference
19658253501Reference
19668279001Reference
19678306501Reference
19688332101Reference
19698356251Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Charging amps20Reference
Batteries2Reference
Battery CCA70Reference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
