Tractor · 1958Unverified

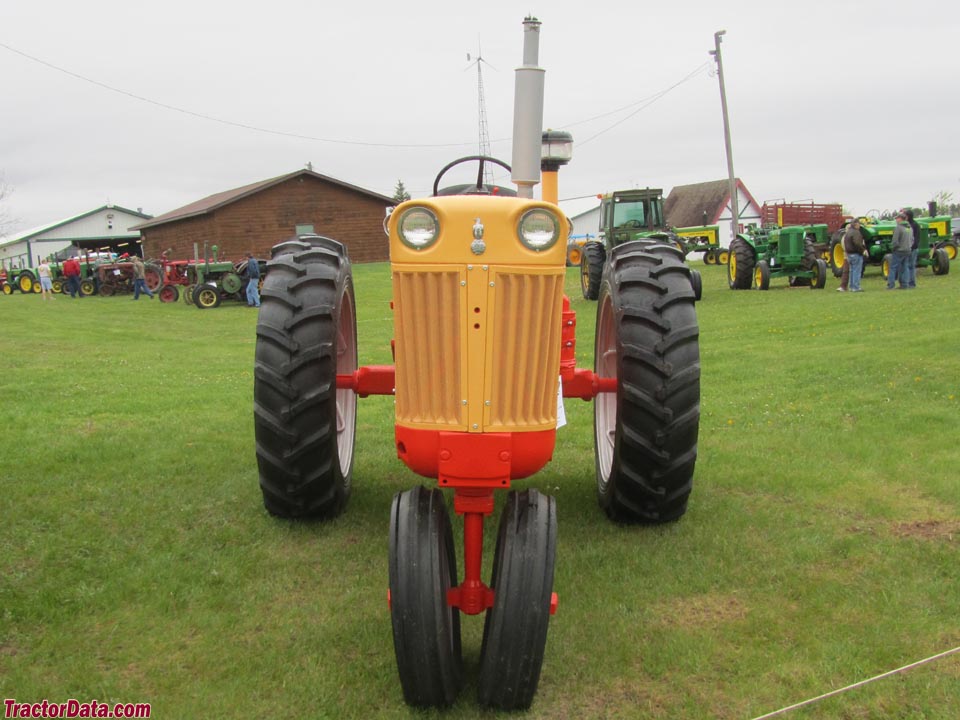

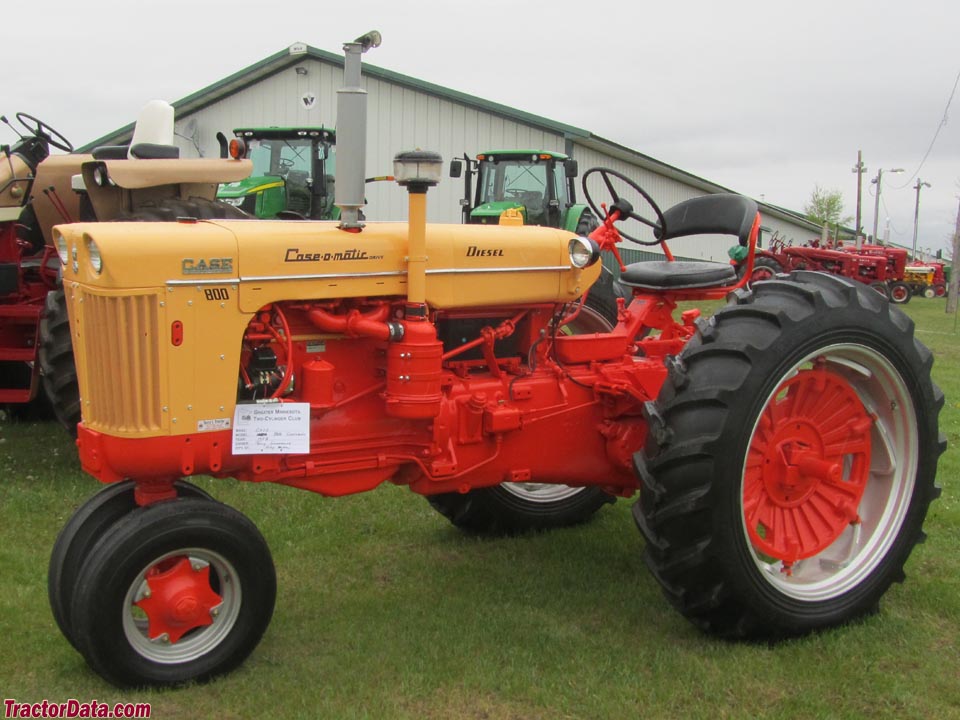

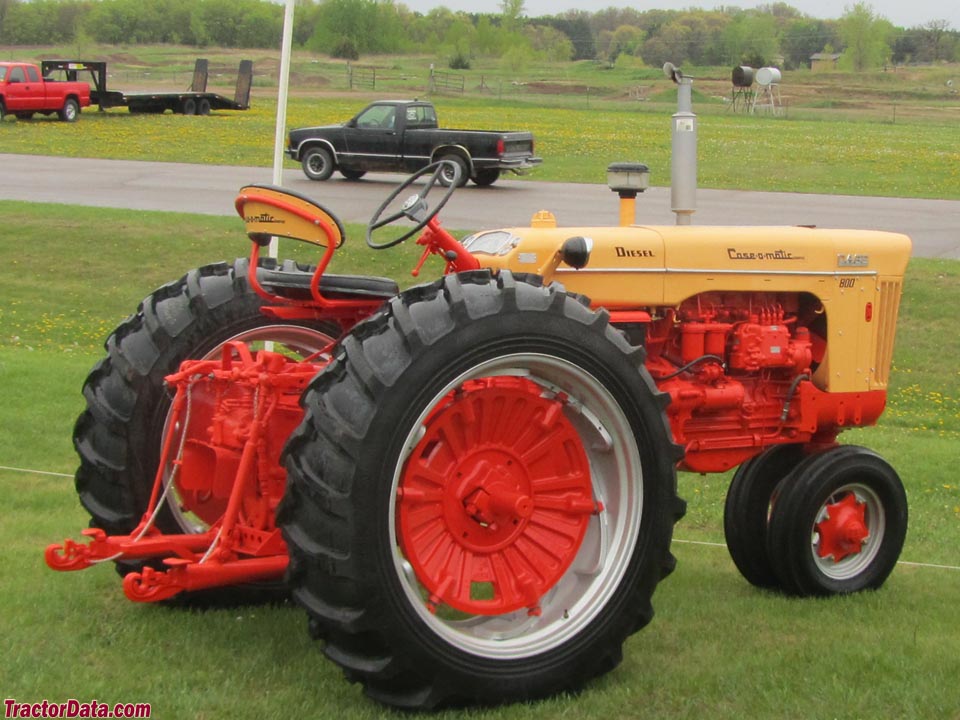

J.I. Case 801-B

Name: J.I. Case 801-B
Brand: J.I. Case

J.I. Case 801-B — 800 B Series · 54 hp. Reference specifications; pending source verification.

The J.I. Case 801-B is a tractor with a rating of 54 horsepower, classifying it as a compact option. Manufactured from 1958 to 1960, it features a 4-cylinder diesel liquid-cooled engine, transmitting power through a two-wheel drive system with an 8-speed gearbox. The listed weight of the tractor is 3084 kilograms, and it is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

54 hp

Max power

38.3 kW

Weight

3084 kg

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

54 hp

Recorded weight

3084 kg

Transmissions

8-speed torque converter

Production years

1958-1960

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerJ.I. CaseReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Original price was $5,600 in 1960Reference

Two-wheel driveReference

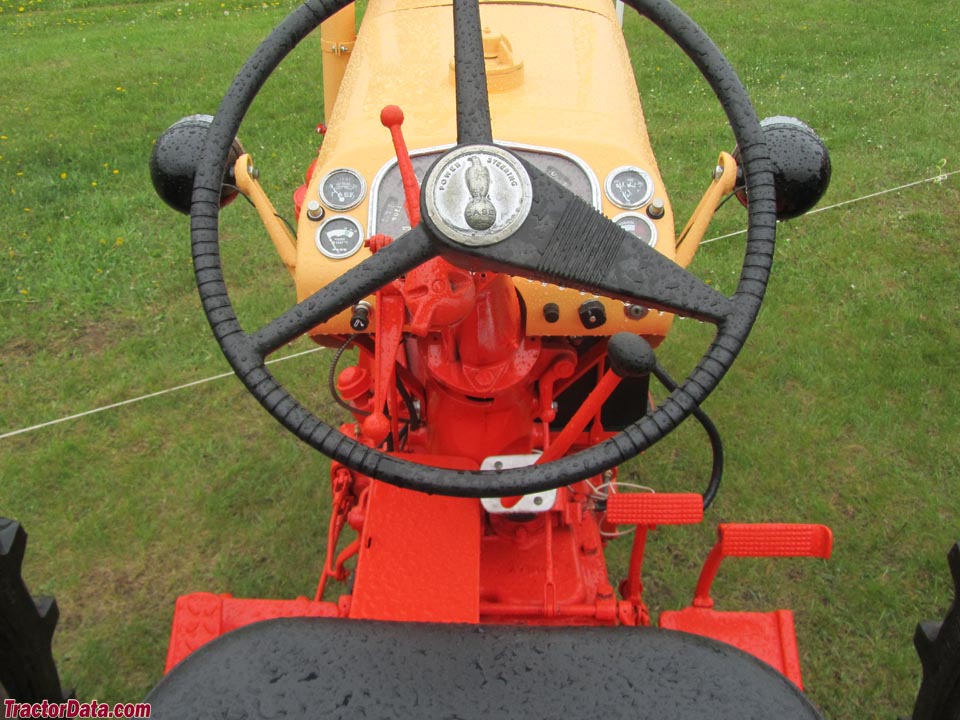

SteeringpowerReference

Differential mechanical disc brakesReference

Open operator station.Reference

Variants

800Bdiesel standardReference

801Bdiesel row-cropReference

802Bdiesel Western specialReference

803Bdiesel high-cropReference

810Bgas standardReference

811Bgas row-cropReference

812Bgas Western specialReference

813Bgas high-cropReference

Engine

J.I. Case 4.4L 4-cyl dieselReference

Fuel tank83.3 LReference

Belt (claimed)40.3 kWReference

Drawbar (tested)38.3 kWReference

Belt (tested)40.6 kWReference

J.I. CaseReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

Air cleaneroil bathReference

Compression15:1Reference

Rated RPM1800Reference

Starter volts12Reference

Belt power (max)40.6 kWReference

Max power38.3 kWReference

Transmission

8-speed torque converterReference

TransmissionCase-O-MaticReference

Typetorque converterReference

Gears8 forward and 2 reverseReference

Clutchhydraulic wet discReference

Four gears, plus reservse, in two ranges controlled with a single shift lever. Torque converter transmission with bypass to lock in direct drive.Reference

PTO & Hydraulics

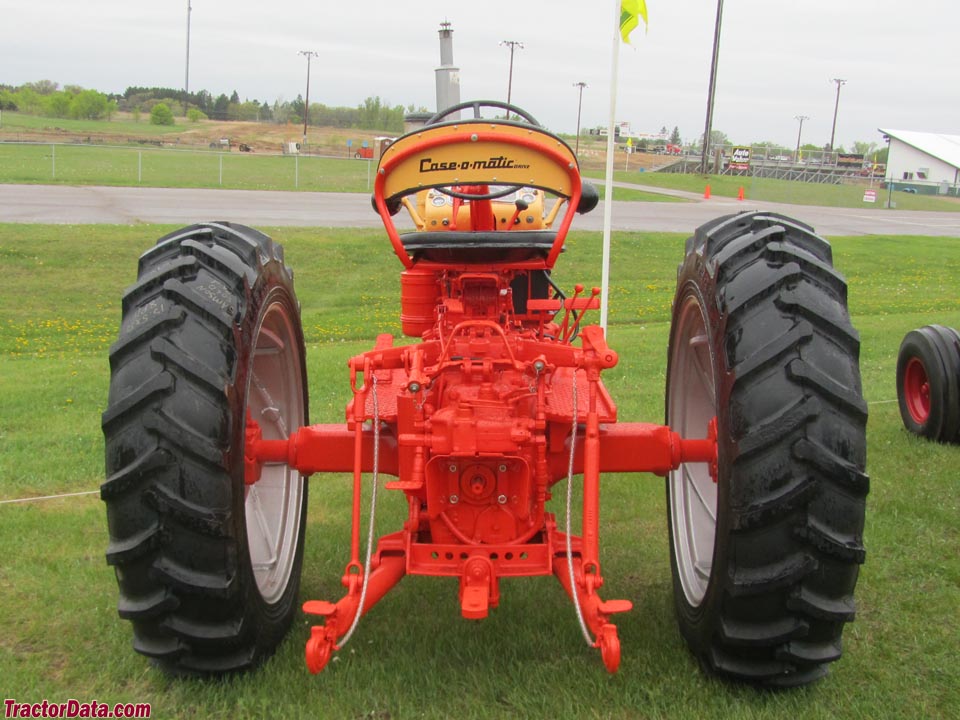

TypeCase Eagle HitchReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase258 cmReference

Wheelbase234 cmReference

Weight3084 kgReference

Front tire6.00-16Reference

Rear tire15.5-38Reference

Ag front6.00-16Reference

Ag rear15.5-38Reference

Length387 cmReference

Length364 cmReference

Width216 cmReference

Height (hood)167 cmReference

Operating weight3084 kgReference

Ballasted weight4326 kgReference

Front tread23 to 38 cmReference

Front tread134 to 208 cmReference

Rear tread132 to 223 cmReference

Rear tread132 to 243 cmReference

Rear tread132 to 274 cmReference

Rear tread132 to 294 cmReference

801-B Serial Number Location

Serial number plate on the right side of the instrument panel.Reference

Test results

Diesel 8-speed 2WDOctober 27 - November 14, 1958Link: Nebraska Tractor Test 680 fileReference

Belt fuel use (max)15.1 l/hourReference

Drawbar performanceReference

Fuel use15.5 l/hourReference

Gear 4 used for power test.Reference

Max pull3577 kgReference

Gear 2 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
