Tractor · 1960Unverified

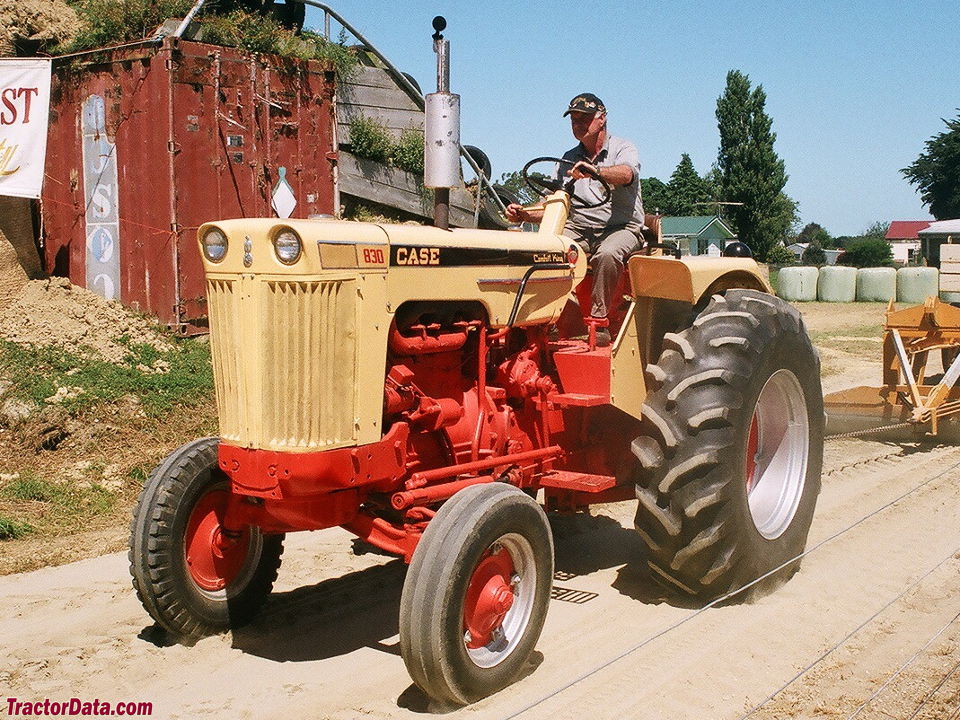

J.I. Case 830
J.I. Case 830 — 830 Series · 66 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
66 hp
Weight
5694 to 5837 pounds
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $6,000 in 1969Reference
Two-wheel driveReference
Steeringpower assistReference
Mechanical dry disc brakesReference
Open operator station.Reference
Variants
830diesel standard-frontReference
831diesel row-cropReference
832diesel Western SpecialReference
833diesel high-cropReference
840gas standard-frontReference
841gas row-cropReference
842gas Western SpecialReference
843gas high-cropReference
Engine
J.I. Case 4.9L 4-cyl dieselReference
Belt (claimed)49.2 kWReference
Plows5Reference
J.I. CaseReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke111 x 127 mmReference
Air cleaneroil bathReference
Compression15:1Reference
Rated RPM1700 (Dual-Range)Reference
Rated RPM1900 (Case-O-Matic)Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity28.0 LReference
Transmission
8-speed gearReference
8-speed torque converterReference
TransmissionDual RangeReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Oil capacity8.5 LReference
Oil capacity64.4 LReference
TransmissionCase-O-MaticReference
Typetorque converterReference
Clutchwet discReference
Capacities
Fuel83.3 LReference
Diameter26 cmReference
Width18 cmReference
RPM1322 (Dual Range)Reference
RPM1027 (Case-O-Matic 540)Reference
RPM1261 (Case-O-Matic 1000)Reference
PTO & Hydraulics
Hydraulic system64.3 LReference
Typeopen centerReference
Capacity64.3 LReference
Pressure106.9 barReference
Rear TypeIIReference
ControlDraft-o-matic load/depth controlReference
TypeCase Eagle HitchReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase210 cmReference
Weight5694 to 5837 poundsReference
Front tire6.00-16Reference
Rear tire13-30Reference
Ag front6.00-16Reference
Ag rear13-30Reference
Length339 cmReference
Width169 cmReference
Height (hood)155 cmReference
Weight2582 kgReference
Weight2647 kgReference
Front tread132/139/147 cmReference
Rear tread132 to 162 cmReference
J.I. Case 830 attachments
front-end loaderReference
830 Serial Numbers
Location:Plate on instrument panelReference
19608160001Reference
19618168801Reference
19628190001Reference
19638208001Reference
19648229001Reference
19658253501Reference
19668279001Reference
19678306501Reference
19688332101Reference
19698356251Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Batteries2Reference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
