Tractor · 1960Unverified
J.I. Case 841
J.I. Case 841 — 830 Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Max power
39.8 kW
Weight
6037 to 6479 pounds
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price$5,100 (1969)Reference
Two-wheel driveReference

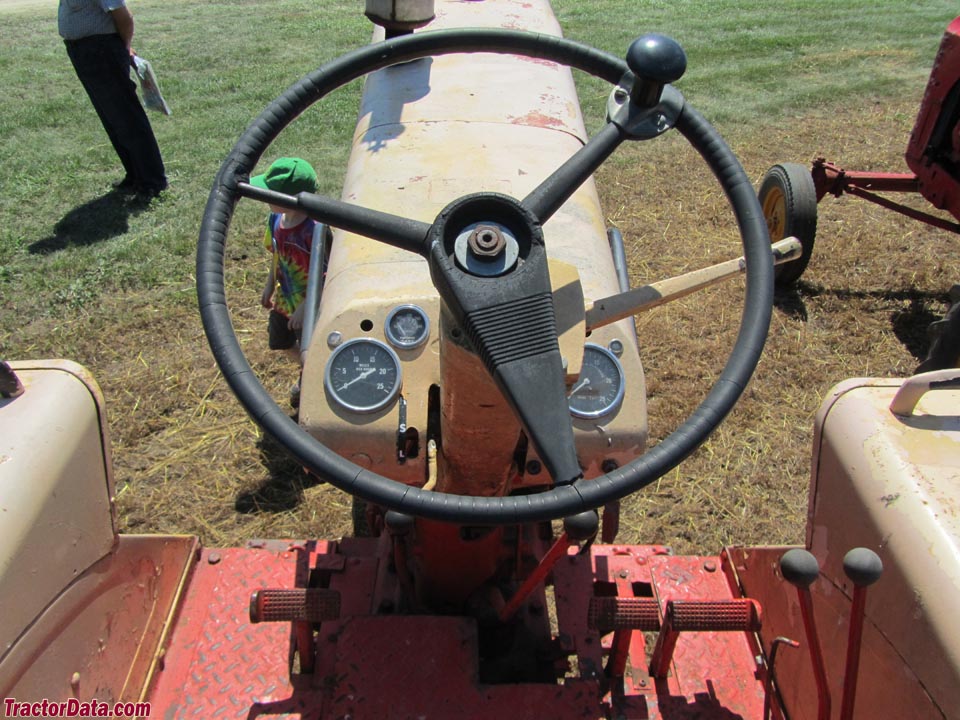

Steeringpower assistReference
Mechanical dry disc brakesReference
Open operator station.Reference
Variants
830diesel standard-frontReference
831diesel row-cropReference
832diesel Western SpecialReference
833diesel high-cropReference
840gas standard-frontReference
841gas row-cropReference
842gas Western SpecialReference
843gas high-cropReference
Engine
J.I. Case 4.7L 4-cyl gasolineReference
J.I. Case 4.7L 4-cyl LP gasReference
Fuel tank83.3 LReference
Fuel tank106.0 LReference
Belt (claimed)49.2 kWReference
Plows5Reference
Drawbar (tested)43.6 kWReference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke108 x 127 mmReference
Air cleaneroil bathReference
Compression7.5:1Reference
Rated RPM1700 (Dual-Range)Reference
Rated RPM1900 (Case-O-Matic)Reference
Starter volts12Reference
LP gasReference
Compression8.2:1Reference
Power at rated engine speed48.1 kWReference
Max power39.8 kWReference
Power at rated engine speed47.3 kWReference
Max power39.5 kWReference
Max power47.6 kWReference
Power at rated engine speed48.9 kWReference
Max power43.6 kWReference
Max power46.7 kWReference
Power at rated engine speed49.2 kWReference
Max power42.8 kWReference
Power at rated engine speed48.6 kWReference
Max power43.3 kWReference
Power at rated engine speed47.8 kWReference
Max power43.4 kWReference
Transmission
8-speed gearReference
8-speed torque converterReference
TransmissionDual RangeReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Oil capacity8.5 LReference
Oil capacity64.4 LReference
TransmissionCase-O-MaticReference
Typetorque converterReference
Clutchwet discReference
PTO & Hydraulics
PTO (tested)49.2 kWReference
Typeopen centerReference
Rear TypeIIReference
ControlDraft-o-matic load/depth controlReference

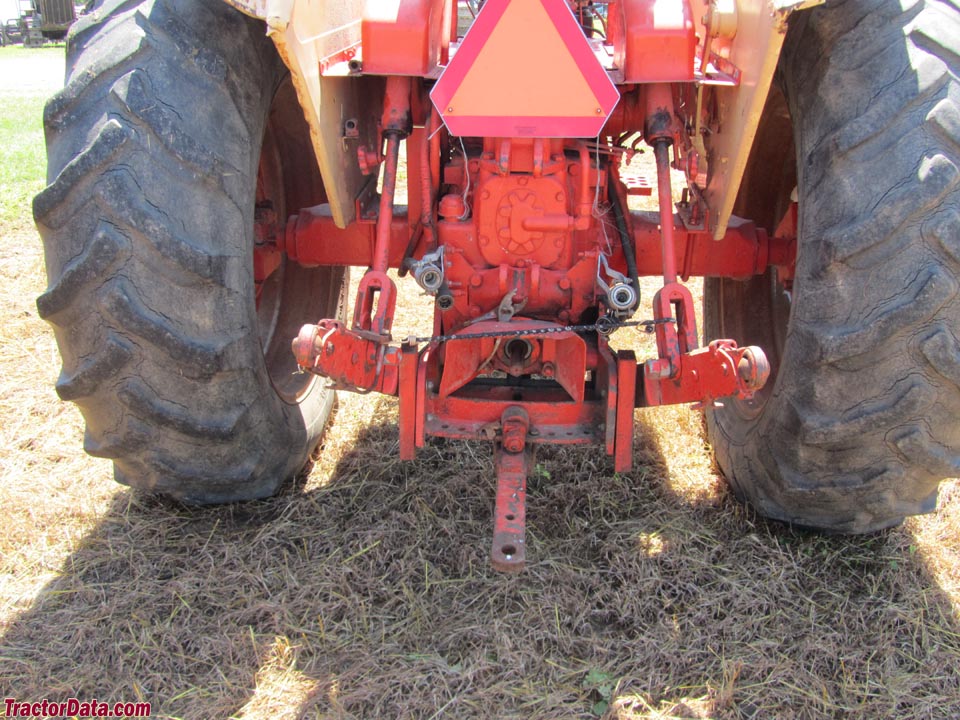

TypeCase Eagle HitchReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed402.7 kWReference
Power at rated PTO speed46.4 kWReference
Power at rated PTO speed45.7 kWReference
Dimensions
Wheelbase234 cmReference
Wheelbase258 cmReference
Weight6037 to 6479 poundsReference
Front tire6.00-16Reference
Rear tire13.6-38Reference
Ag front6.00-16Reference
Ag rear13.6-38Reference
Ag front9.00-10 (single wheel)Reference
Ag front7.50-16 (single wheel)Reference
Length364 cmReference
Length387 cmReference
Width216 cmReference
Height167 cmReference
Front tread23/30/38 cmReference
Front tread104 to 157 cmReference
Front tread121 to 185 cmReference
Front tread134 to 208 cmReference
Rear tread132 to 223 cmReference
Rear tread132 to 243 cmReference
Rear tread132 to 274 cmReference
2738 kgReference
2876 kgReference
2800 kgReference
2938 kgReference
J.I. Case 841 attachments
front-end loaderReference
841 Serial Number Location
Plate on right side of instrument panel. Case-O-Matics marked as 841C.Reference
841 Serial Numbers
19608160001Reference
19618168801Reference
19628190001Reference
19638208001Reference
19648229001Reference
19658253501Reference
19668279001Reference
19678306501Reference
19688332101Reference
19698356251Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter26 cmReference
Width18 cmReference
RPM1322 (Dual Range)Reference
RPM1027 (Case-O-Matic 540)Reference
RPM1261 (Case-O-Matic 1000)Reference
Test results
NTTL 738: gasoline 8-speed 2WDReference
NTTL 740: LP gas 8-speed 2WDReference
NTTL 777: gasoline Case-O-Matic 2WDReference
NTTL 780: LP gas Case-O-Matic 2WDReference
NTTL 919: gasoline 8-speed 2WD CKReference
NTTL 921: LP gas 8-speed 8-speedReference
Gasoline 8-speed 2WDApril 5 - 23, 1960Link: Nebraska Tractor Test 738 fileReference
PTO performanceReference
Fuel use19.3 l/hourReference
Drawbar performanceReference
Fuel use18.2 l/hourReference
Gear 4 used for power test.Reference
Max pull3709 kgReference
Gear 2 used for pull test.Reference
LP gas 8-speed 2WDApril 11 - 23, 1960Link: Nebraska Tractor Test 740 fileReference
Fuel use24.6 l/hourReference
Fuel use23.5 l/hourReference
Max pull3700 kgReference
Gear 4 used for pull test.Reference
Gasoline Case-O-Matic 2WDNovember 2 - 12, 1960Link: Nebraska Tractor Test 777 fileReference
Fuel use22.0 l/hourReference
Fuel use172.6 l/hourReference
Fuel use22.3 l/hourReference
Max pull3843 kgReference
LP gas Case-O-Matic 2WDNovember 4 - 19, 1960Link: Nebraska Tractor Test 780 fileReference
Fuel use26.9 l/hourReference
Fuel use1.9 kWh/lReference
Max pull3796 kgReference
Gear 3 used for pull test.Reference
Gasoline 8-speed 2WD CKOctober 8 - 16, 1965Link: Nebraska Tractor Test 919 fileReference
Fuel use21.2 l/hourReference
Max pull3685 kgReference
LP gas 8-speed 8-speedOctober 9 - 25, 1965Link: Nebraska Tractor Test 921 fileReference
Fuel use28.4 l/hourReference
Fuel use25.0 l/hourReference
Max pull3754 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
