J.I. Case 940
J.I. Case 940 — 30 Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Max power
52.2 kW
Weight
3971 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Original price$6,400 (1969)Reference

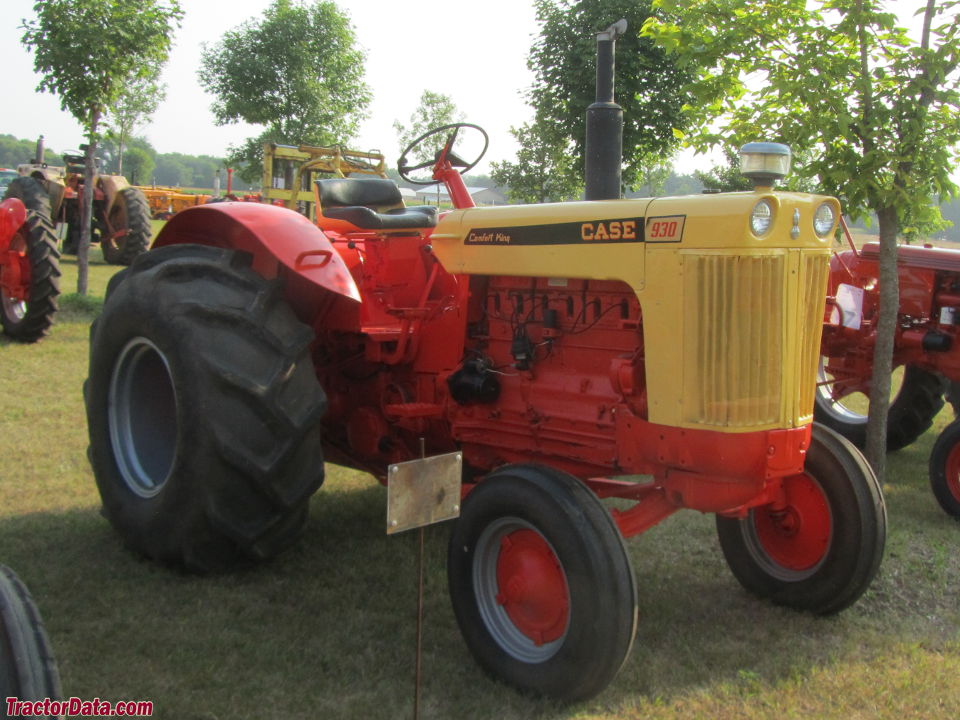

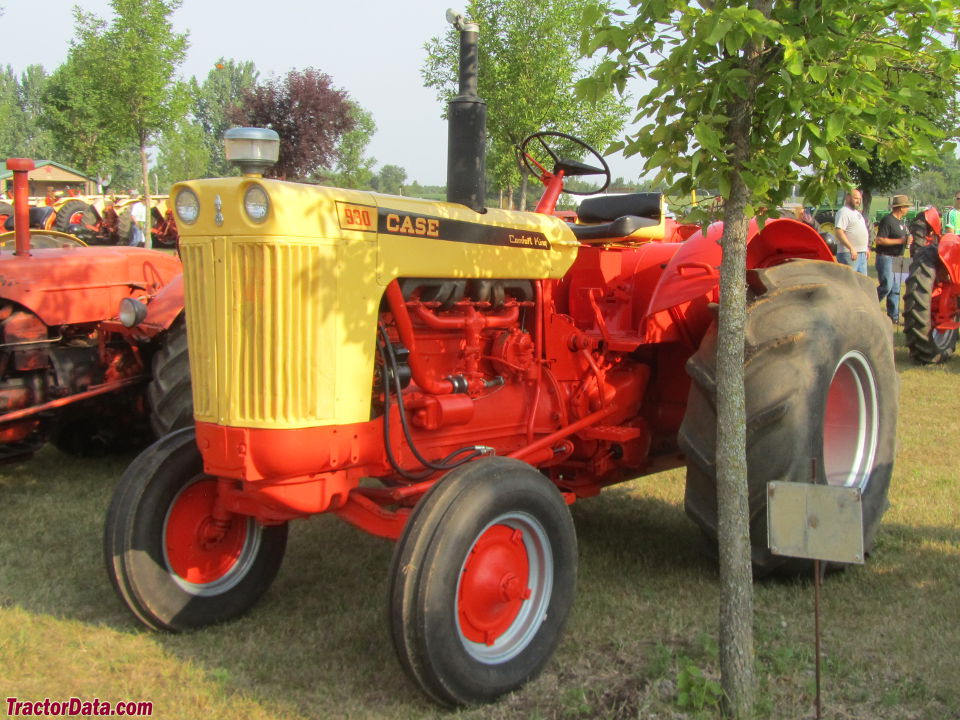

The 930 Comfort King (930 CK) was introduced in 1962. The entire series was referred to as the Case 930, although the spark-ignition versions used the 940 model number.Reference
Two-wheel driveReference
Steeringpower assistReference
Differential mechanical dry disc brakesReference
Open operator station.Reference
Variants
930diesel standardReference
931diesel row-cropReference
940gas standardReference
941gas row-cropReference
Engine
J.I. Case 6.2L 6-cyl gasolineReference
J.I. Case 6.2L 6-cyl LP gasReference
Fuel tank113.6 LReference
Fuel tank136.3 LReference
Fuel tank181.7 LReference
Belt (claimed)61.9 kWReference
Plows6Reference
Drawbar (tested)52.2 kWReference
J.I. CaseReference
gasolineReference
6-cylinderReference
liquid-cooledReference
Displacement6.2 LReference
Bore/Stroke102 x 127 mmReference
Air cleaneroil bathReference
Compression7.5:1Reference
Rated RPM1800Reference
Starter volts12Reference
LP gasReference
Compression8.0:1Reference
Rated RPM1600Reference
Power at rated engine speed59.4 kWReference
Max power52.2 kWReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
Clutchhand-operated discReference
PTO & Hydraulics
PTO (tested)59.4 kWReference
TypeDual-ControlReference
Valves1 or 2Reference
Pump flow56.8 lpmReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed55.6 kWReference
Dimensions
Wheelbase213 cmReference
Weight3971 kgReference
Front tire7.50-18Reference
Rear tire15x34Reference
Ag front7.50-18Reference
Ag rear15x34Reference
Length358 cmReference
Width213 cmReference
Height (hood)163 cmReference
Operating weight3971 kgReference
Ballasted weight6955 kgReference
Front tread144 cmReference
Rear tread171 cmReference
940 Serial Number Location
Plate on instrument panelReference
940 Serial Numbers
19608160001Reference
19618168801Reference
19628190001Reference
19638208001Reference
19648229001Reference
19658253501Reference
19668279001Reference
19678306501Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter29 cmReference
Width20 cmReference
RPM1007Reference
Test results
LP gas 6-speed 2WDApril 5 - 23, 1960Link: Nebraska Tractor Test 739 fileReference
PTO performanceReference
Fuel use32.9 l/hourReference
Fuel use30.3 l/hourReference
Drawbar performanceReference
Fuel use32.2 l/hourReference
Gear 3 used for power test.Reference
Max pull4996 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
