Tractor · 1964Unverified
J.I. Case 941 GP
J.I. Case 941 GP — 30 Series · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Max power
52.0 kW
Weight
4071 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference

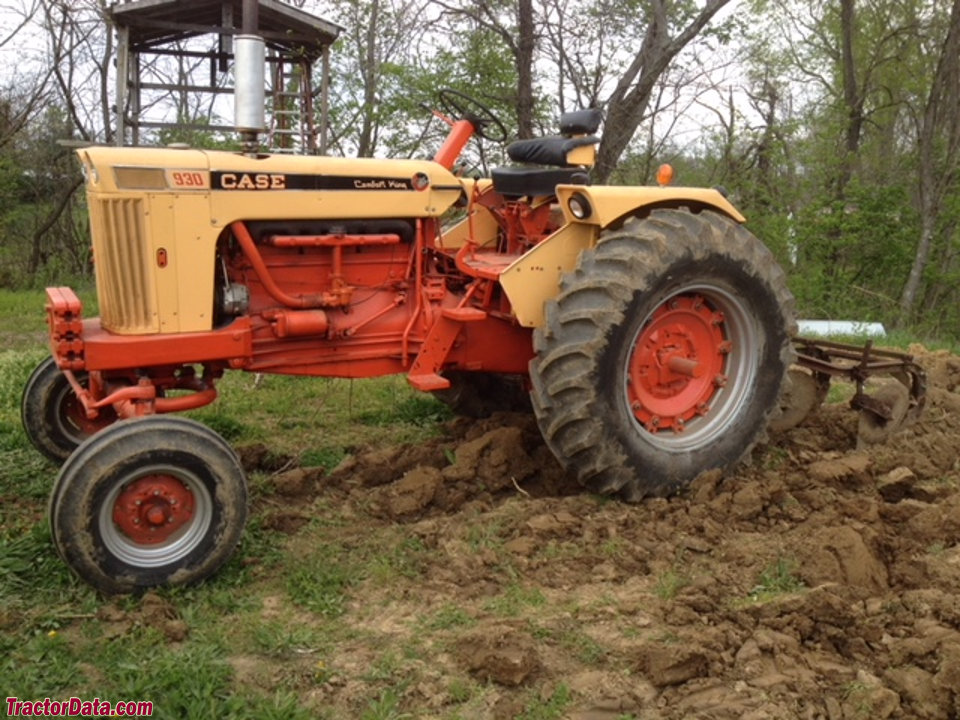

The Case 930 General Purpose tractor was introduced in 1964 by putting the engine from the 930 Comfort King into an 830 chassis, creating a row-crop version of the 930. In addition to the row-crop chassis, the 930 GP also uses an eight speed transmission instead of the six speed in the 930 standard.Reference
Two-wheel driveReference
Steeringpower assistReference
Differential mechanical dry disc brakesReference
Variants
930diesel standardReference
931diesel row-cropReference
940gas standardReference
941gas row-cropReference
Engine
J.I. Case 6.2L 6-cyl gasolineReference
J.I. Case 6.2L 6-cyl LP gasReference
Fuel tank113.6 LReference
Fuel tank136.3 LReference
Fuel tank181.7 LReference
Belt (claimed)61.9 kWReference
Plows6Reference
Drawbar (tested)54.2 kWReference
J.I. CaseReference
gasolineReference
6-cylinderReference
liquid-cooledReference
Displacement6.2 LReference
Bore/Stroke102 x 127 mmReference
Air cleaneroil bathReference
Compression7.5:1Reference
Rated RPM1800Reference
Starter volts12Reference
LP gasReference
Compression8.5:1Reference
Power at rated engine speed64.3 kWReference
Max power52.0 kWReference
Power at rated engine speed64.0 kWReference
Max power54.2 kWReference
Transmission
8-speedReference
TransmissionDual-RangeReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (tested)64.3 kWReference
TypeDual-ControlReference
Valves1 or 2Reference
Pump flow56.8 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed62.5 kWReference
Power at rated PTO speed61.9 kWReference
Dimensions
Wheelbase274 cmReference
Weight4071 kgReference
Front tire7.50-15Reference
Rear tire18.4-34Reference
Ag front7.50-15Reference
Ag rear18.4-34Reference
Operating weight4071 kgReference
Ballasted weight6064 kgReference
Front tread136 to 211 cmReference
Rear tread162 to 243 cmReference
941 Serial Numbers
Location:Plate on instrument panelReference
19648229001Reference
19658253501Reference
19668279001Reference
19678306501Reference
19688332101Reference
19698356251Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter29 cmReference
Width20 cmReference
RPM1007Reference
Test results
NTTL 920: gasoline 8-speed 2WDReference
NTTL 922: LP gas 8-speed 2WDReference
Gasoline 8-speed 2WDOctober 8 - 27, 1965Link: Nebraska Tractor Test 920 fileReference
PTO performanceReference
Fuel use28.8 l/hourReference
Fuel use27.3 l/hourReference
Drawbar performanceReference
Fuel use28.0 l/hourReference
Gear 4 used for power test.Reference
Max pull4591 kgReference
Gear 2 used for pull test.Reference
LP gas 8-speed 2WDOctober 9 - 25, 1965Link: Nebraska Tractor Test 922 fileReference
Fuel use36.7 l/hourReference
Fuel use34.4 l/hourReference
Fuel use36.3 l/hourReference
Max pull4668 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
