Tractor · 1962Unverified

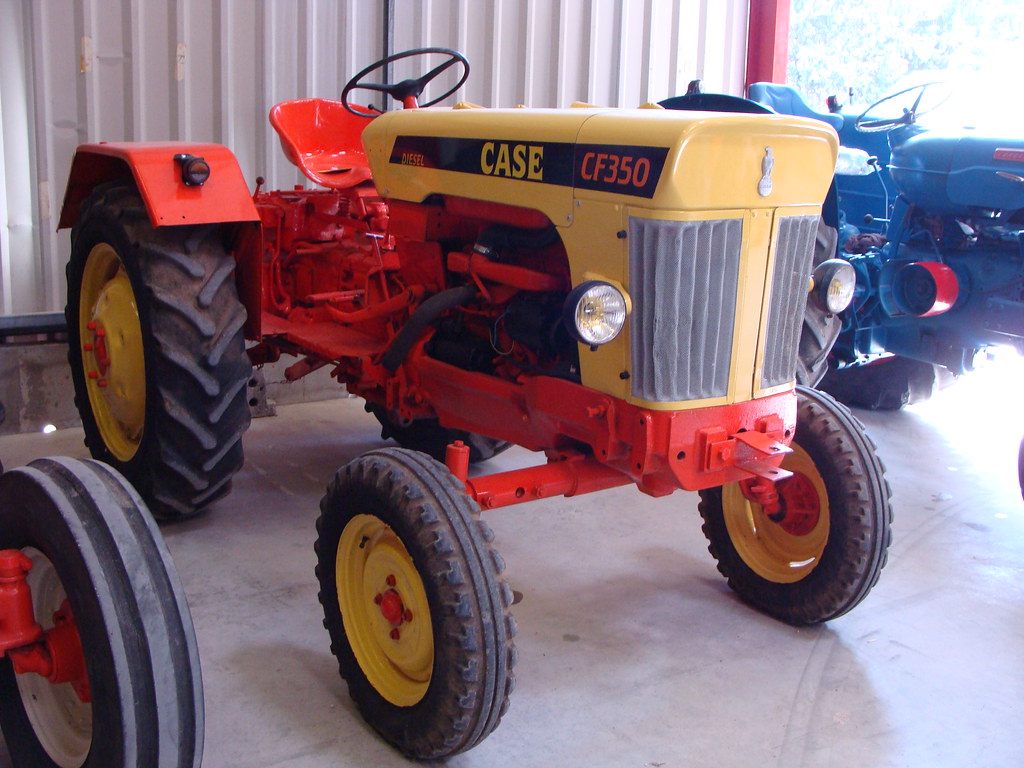

J.I. Case CF 350
J.I. Case CF 350 — Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1700 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Vierzon, FranceReference
Two-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
Indenor 1.8L 4-cyl dieselReference
Engine26.1 kWReference
Indenor XDP85Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke85 x 80 mmReference
Power26.1 kWReference
Fuel systemindirect injectionReference
Air cleaneroil bathReference
Compression21:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.0 LReference
Coolant capacity10.2 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 4 reverseReference
Four gears in two ranges, plus reverse range.Reference
Capacities
Fuel50.0 LReference
PTO & Hydraulics
Hydraulic system8.5 LReference
Typeopen centerReference
Capacity8.5 LReference
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Mid PTOindependentReference
Mid PTO Type1000Reference
Dimensions
Wheelbase184 cmReference
Weight1700 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Ag rear12-28Reference
Length307 cmReference
Width164 cmReference
Height162 cmReference
Ground clearance50 cmReference
Front tread112 to 169 cmReference
Rear tread102 to 171 cmReference
Speeds
With 11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
