Tractor · 1929Unverified
J.I. Case CO

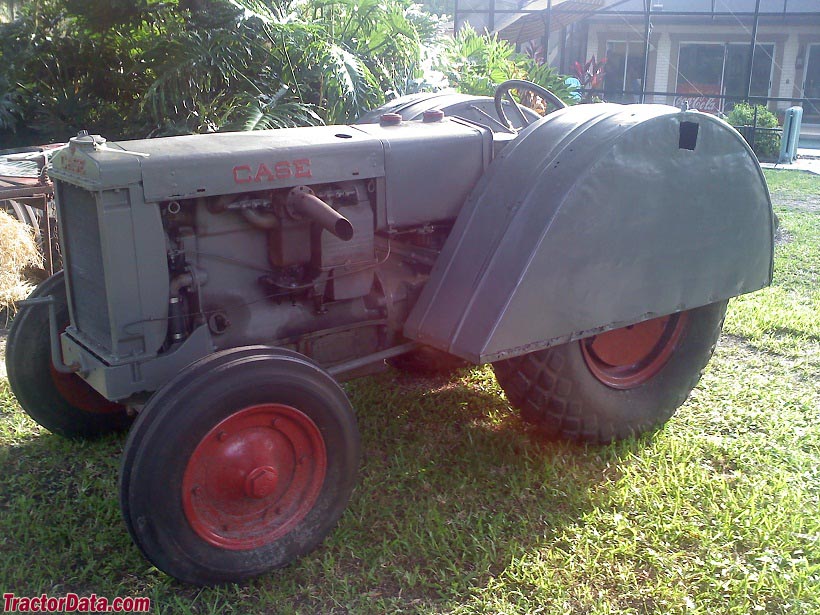

J.I. Case CO — Orchard/Vineyard tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Orchard/Vineyard tractorReference
Total built1,275Reference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Variants
Cstandard-treadReference
CCrow-cropReference
Engine
J.I. Case 4.3L 4-cyl keroseneReference
Fuel tank68.1 LReference
Aux. fuel7.6 LReference
Drawbar (claimed)12.7 kWReference
Plows2-3Reference
J.I. CaseReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke98 x 140 mmReference
Rated RPM1100Reference
Coolant capacity18.9 LReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)20.1 kWReference
Dimensions
Wheelbase167 cmReference
Front tire28x5Reference
Rear tire42x12Reference
Ag front28x5 (steel)Reference
Ag rear42x12 (steel)Reference
Height (hood)121 cmReference
CO Serial Numbers
Location:Instrument panelReference
1929300201Reference
1930300301Reference
1931300401Reference
1932300501Reference
1933300601Reference
1934300701Reference
1935300801Reference
1936300901Reference
1937400001Reference
19384200001Reference
19394300001Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
