Tractor · 1939Unverified

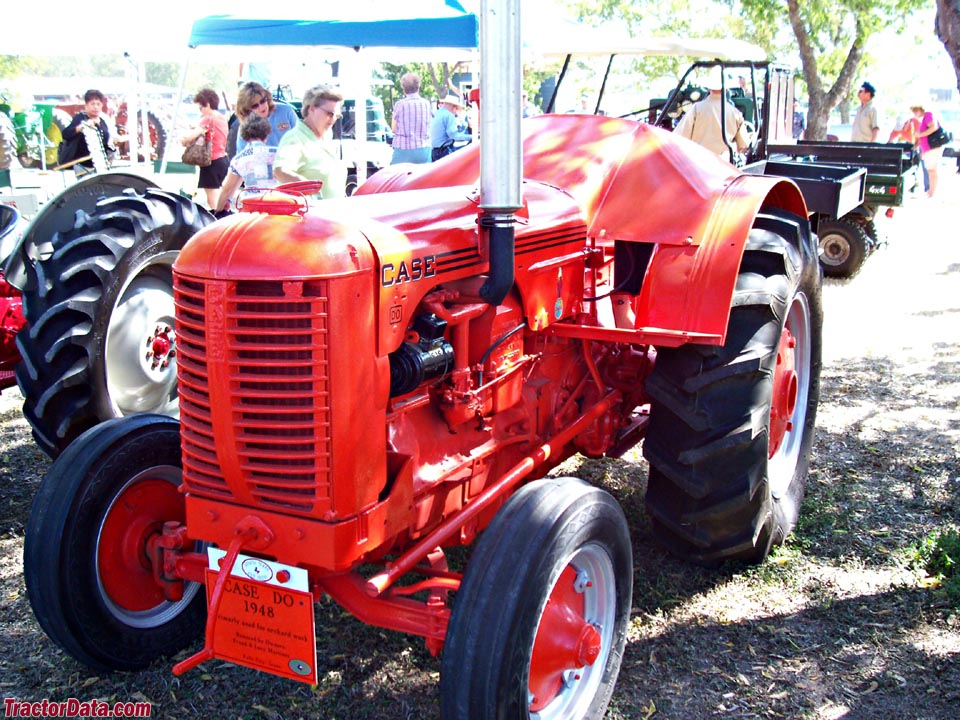

J.I. Case DO
J.I. Case DO — D Series. Reference specifications; pending source verification.
The J.I. Case DO is a four-wheeled tractor. Produced between 1939 and 1953, it features a 4-cylinder petrol liquid-cooled engine, coupled with two-wheel drive and a 4-speed gearbox. The specifications for this model vary depending on the region, with detailed information available for both UK and US markets.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Transmissions
4-speed gear
Production years
1939-1953
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Orchard/Vineyard tractorReference
Built in Racine, Wisconsin, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
J.I. Case 4.3L 4-cyl gasolineReference
Gas Fuel tank71.9 LReference
Gas Fuel tank64.3 LReference
Aux. fuel7.6 LReference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke98 x 140 mmReference
Compression4.88:1Reference
Rated RPM1200Reference
Coolant capacity24.6 LReference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutchmechanical wet discReference
PTO & Hydraulics
Rear PTOcontinuousReference
Rear PTOliveReference
Rear PTO Type540Reference
Dimensions
Wheelbase170 cmReference
Length299 cmReference
Width173 cmReference
Height (hood)136 cmReference
Clearance (front axle)35 cmReference
Clearance (rear axle)51 cmReference
Rear tread135 cmReference
Rear tread125 cmReference
Capacities
Diameter31 cmReference
Width18 cmReference
RPM818Reference
Speed798.58 meters/minReference
Speeds
With 13-26 rear tires.Reference
