Tractor · 1941Unverified

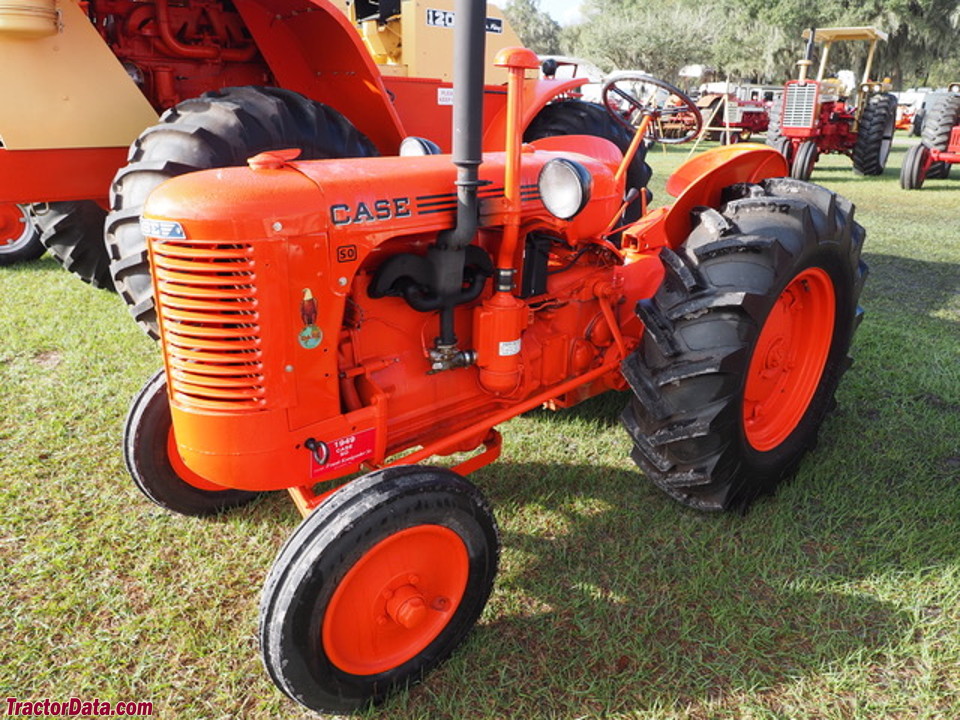

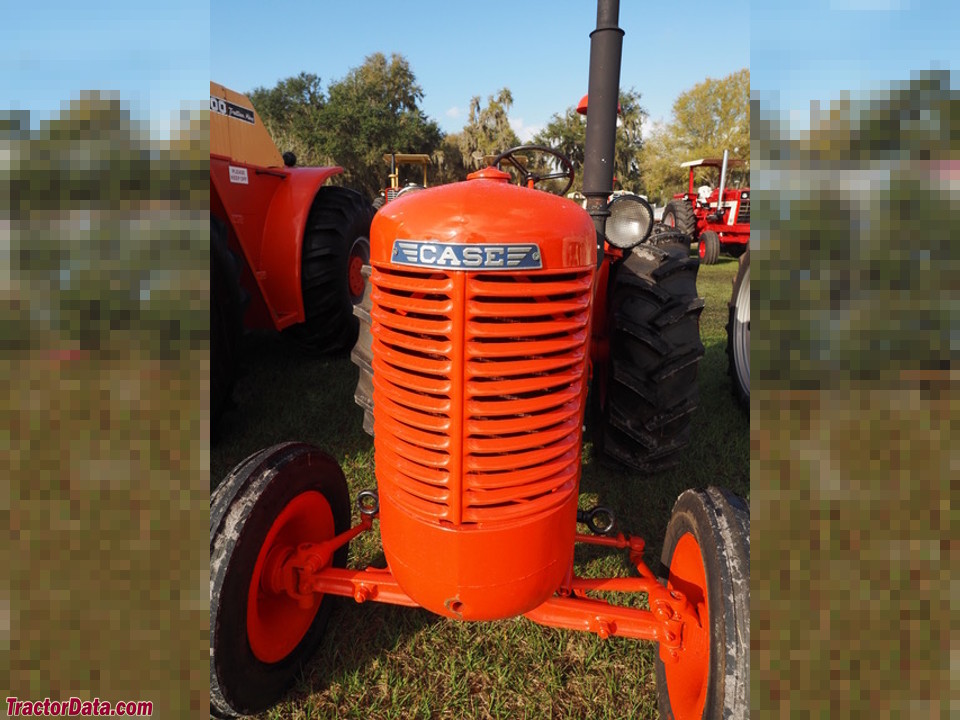

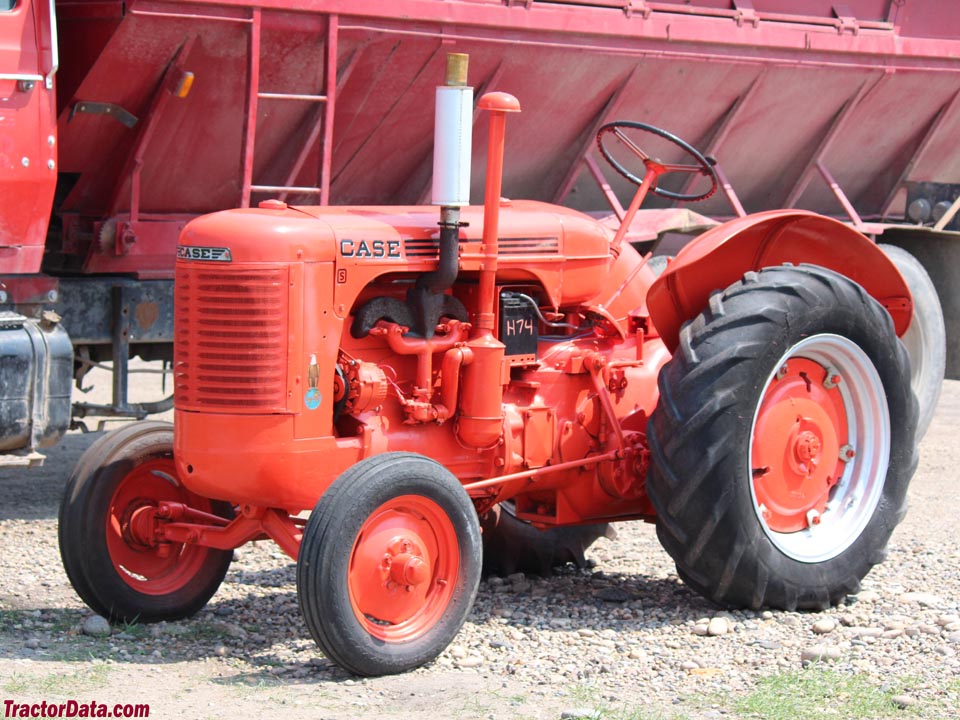

J.I. Case S
J.I. Case S — Standard-tread tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1984 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
The model S was the standard, fixed-wide-front version of the S series. The SC was the row-crop version.Reference
Two-wheel driveReference
Manual steeringReference
Disc brakesReference

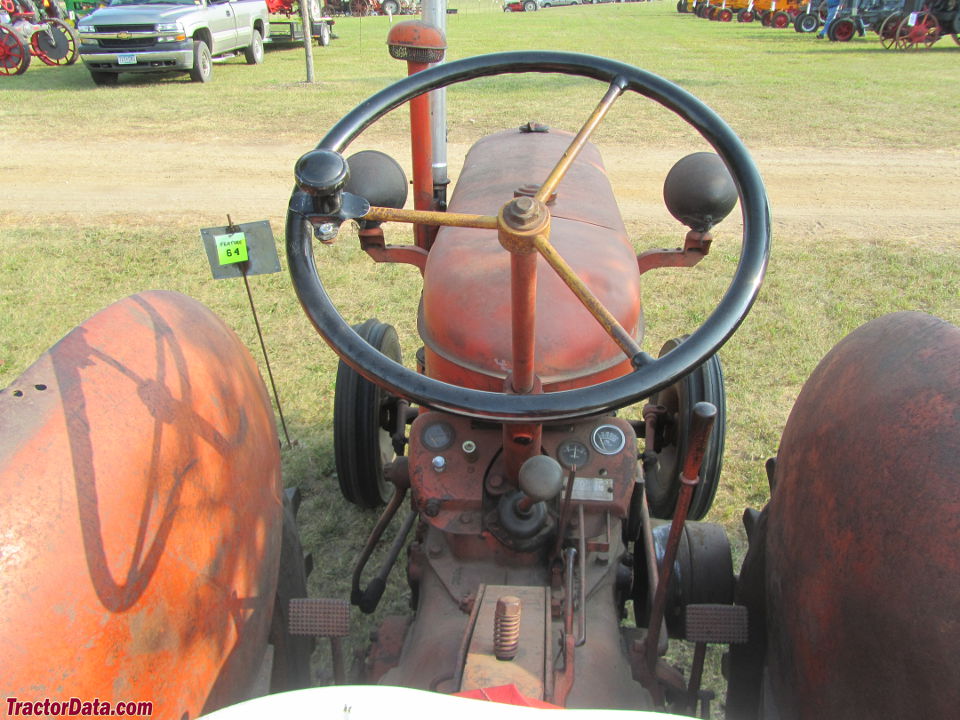

Open operator station. Steel pan seat with spring suspension.Reference
Variants
SstandardReference
SCrow-cropReference
SC-3tricycle row-cropReference
SC-4fixed-front row-cropReference
SIindustrialReference
SOorchardReference

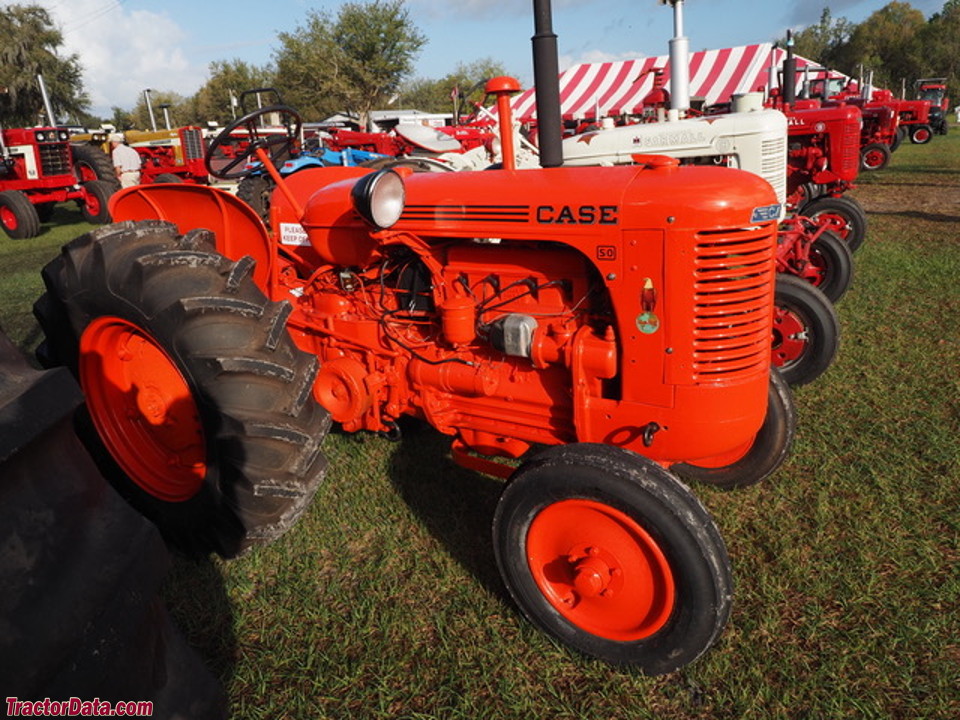

Engine
J.I. Case 2.5L 4-cyl gasolineReference
J.I. Case 2.7L 4-cyl gasolineReference
Fuel tank53.0 LReference
Aux. fuel4.7 LReference
Drawbar (claimed)11.9 kWReference
Belt (claimed)15.7 kWReference
Plows2 (14-inch)Reference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Original engine, used until 1953.Reference
Displacement2.5 LReference
Bore/Stroke89 x 102 mmReference
Air cleaneroil bathReference
Rated RPM1550Reference
Starter volts6Reference
Coolant capacity15.1 LReference
The larger, 2.7L, engine was introduced in 1953 on the J.I. Case S.Reference
Displacement2.7 LReference
Bore/Stroke92 x 102 mmReference
Transmission
4-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears4 forward and 1 reverseReference
Clutchmechanical wet discReference
PTO & Hydraulics
TypeCase Eagle HitchReference
Rear PTOcontinuousReference
Rear PTOliveReference
Rear PTO Type541Reference
Dimensions
Wheelbase167 cmReference
Weight1984 kgReference
Front tire5.00-15Reference
Rear tire11-26Reference
Ag front5.00-15Reference
Ag rear11-26Reference
Ag front25x4 (steel)Reference
Ag rear42x8 (steel)Reference
Length275 cmReference
Width142 cmReference
Height (hood)129 cmReference
Clearance (front axle)28 cmReference
Clearance (rear axle)47 cmReference
Rear tread120 cmReference
S Serial Number Location
Serial number plate on tractor's instrument panel.Reference
S Serial Numbers
19414500001Reference
19424600001Reference
19434700001Reference
19444800001Reference
19454900001Reference
19465000001Reference
19475100001Reference
19485200001Reference
19495300001Reference
19505400001Reference
19515500001Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter23 cmReference
Width16 cmReference
RPM1078Reference
Speed792.48 meters/minReference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Battery volts6Reference
Speeds
With 11-26 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
