Tractor · 1941Unverified

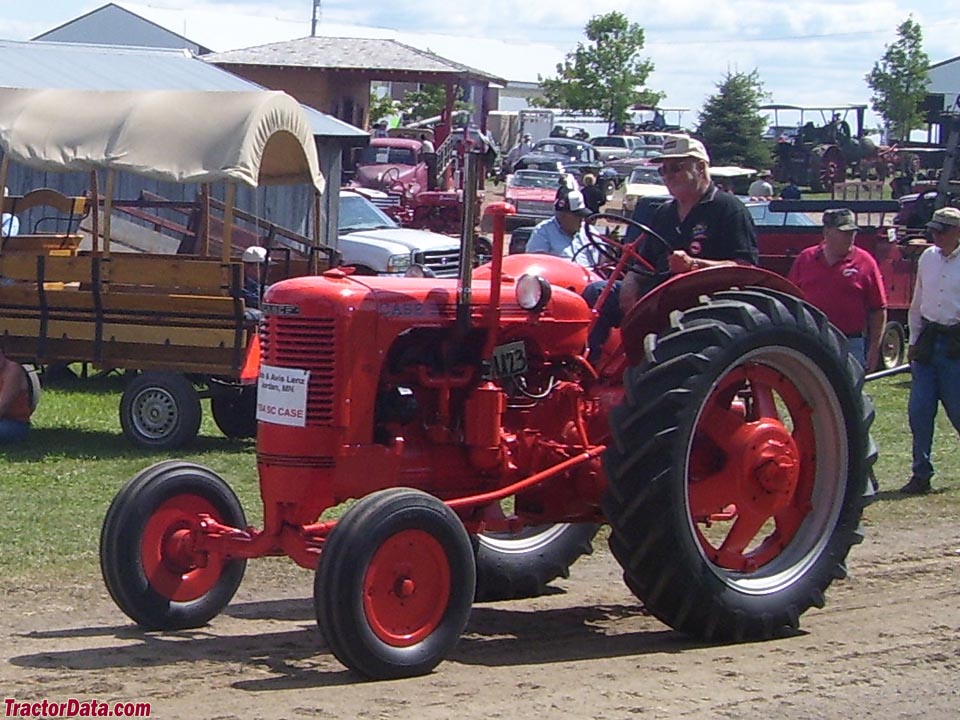

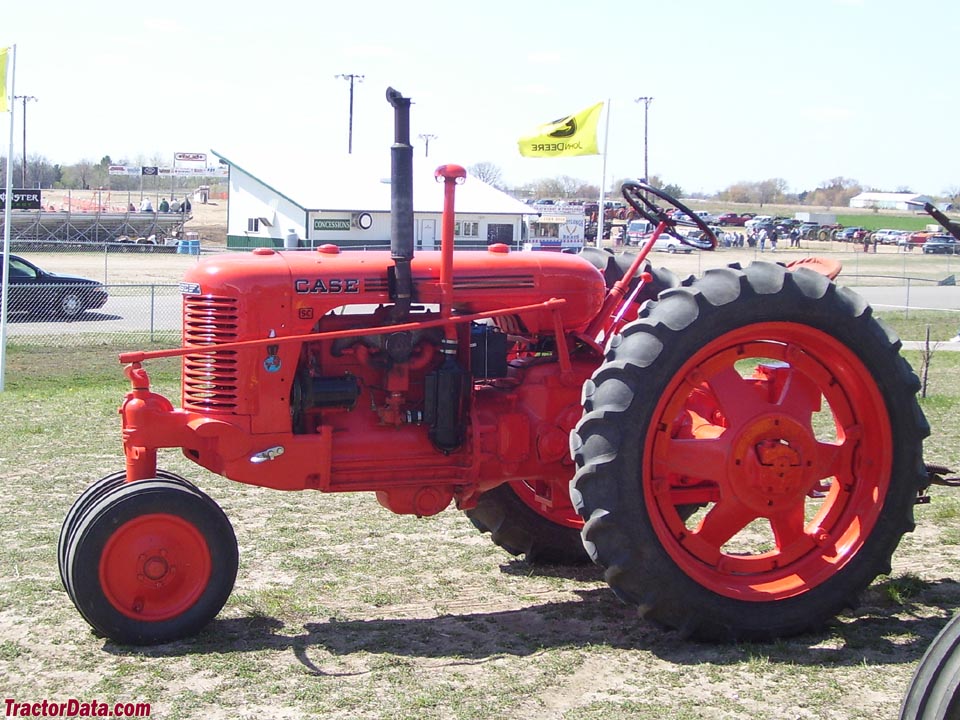

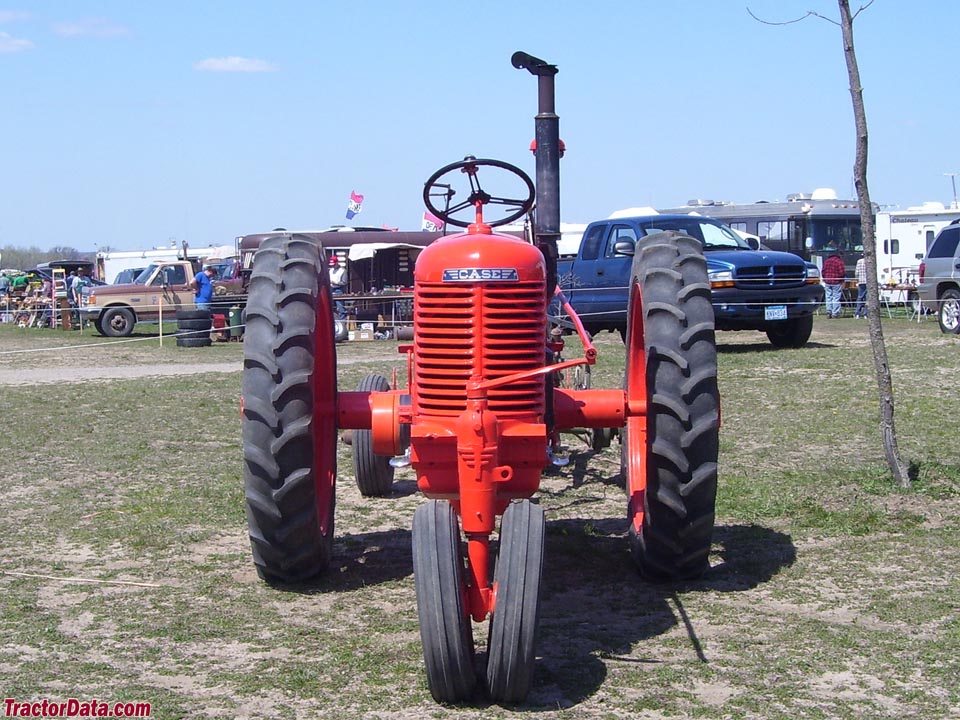

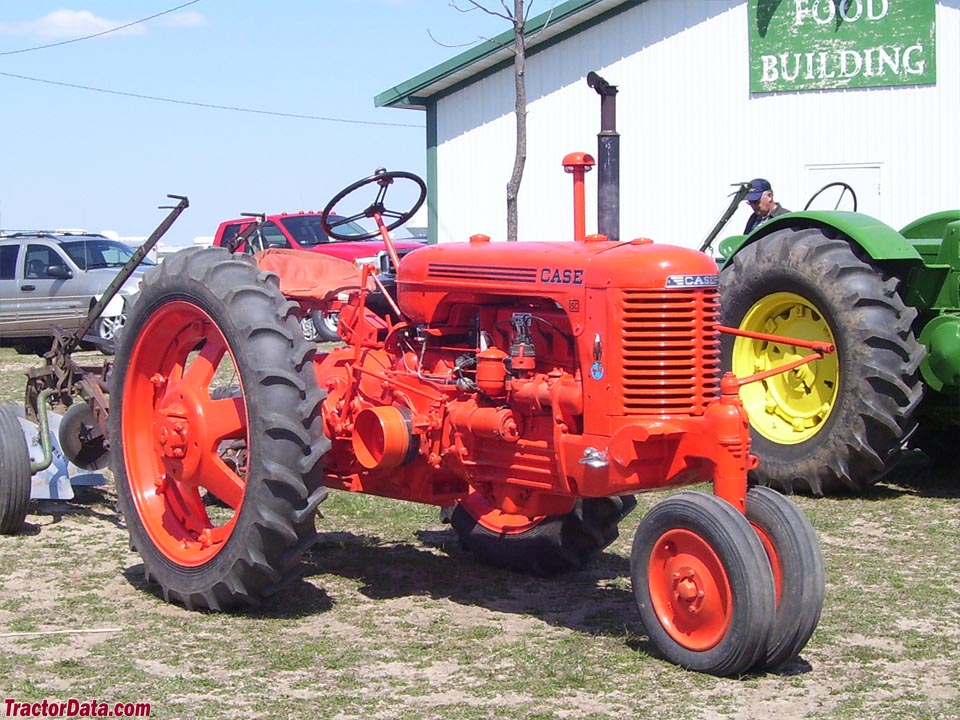

J.I. Case SC
J.I. Case SC — Row-Crop tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Max power
14.5 kW
Weight
1905 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Total built58,991Reference
Original price was $1,700 in 1955Reference
Two-wheel driveReference
Manual steeringReference
Disc brakesReference
Open operator station. Steel pan seat with spring suspension. Padded seat with torsional rubber suspension after 1952.Reference
Variants
SstandardReference
SCrow-cropReference
SC-3tricycle row-cropReference
SC-4fixed-front row-cropReference
SIindustrialReference
SOorchardReference
Engine
J.I. Case 2.5L 4-cyl distillateReference
J.I. Case 2.7L 4-cyl gasolineReference
J.I. Case 2.7L 4-cyl tractor fuelReference
Fuel tank53.0 LReference
Aux. fuel4.7 LReference
Drawbar (claimed)14.2 kWReference
Plows2Reference
Drawbar (tested)20.6 kWReference
Belt (tested)23.6 kWReference
J.I. CaseReference
distillateReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement2.5 LReference
Bore/Stroke89 x 102 mmReference
Rated RPM1550Reference
Starter volts6Reference
Coolant capacity15.1 LReference
gasolineReference
Larger engine, used in 1953 (S/N 8027115)Reference
Displacement2.7 LReference
Bore/Stroke98 x 102 mmReference
Air cleaneroil bathReference
Compression6.25:1Reference
Rated RPM1600Reference
tractor fuelReference
Bore/Stroke92 x 102 mmReference
Compression4.8:1Reference
Belt power (max)16.6 kWReference
Max power14.5 kWReference
Belt power (max)23.6 kWReference
Max power20.6 kWReference
Belt power (max)18.6 kWReference
Max power17.3 kWReference
Transmission
4-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears4 forward and 1 reverseReference
Clutchmechanical wet discReference
PTO & Hydraulics
PTO (claimed)16.4 kWReference
TypeCase Eagle HitchReference
Rear PTOcontinuousReference
Rear PTOliveReference
Rear PTO Type540Reference
Dimensions
Wheelbase212 cmReference
Weight1905 kgReference
Front tire5.00x15Reference
Rear tire10x38Reference
Ag front5.00x15Reference
Ag front5.50x16 (late)Reference
Ag rear10x38Reference
Ag front7.50x10Reference
Length346 cmReference
Width194 cmReference
Height (hood)143 cmReference
Clearance (rear axle)60 cmReference
Front tread142 to 203 cmReference
Rear tread111 to 203 cmReference
Rear tread111 to 238 cmReference
SC Serial Number Location
Serial number plate below the instrument panel.Reference
SC Serial Numbers
19414500001Reference
19424600001Reference
19434700001Reference
19444800001Reference
19454900001Reference
19465000001Reference
19475100001Reference
19485200001Reference
19495300001Reference
19505400001Reference
19515500001Reference
19525600001Reference
19535700001Reference
19548035001Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter23 cmReference
Width16 cmReference
RPM1078Reference
Speed792.48 meters/minReference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Battery volts6Reference
Test results
NTTL 367: 2.5L distillate 4-speed 2WDReference
NTTL 496: 2.7L gasoline 4-speed 2WDReference
NTTL 497: 2.7L tractor fuel 4-speed 2WDReference
2.5L distillate 4-speed 2WDApril 29 - May 16, 1941Link: Nebraska Tractor Test 367 fileReference
Belt fuel use (max)8.7 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull1436 kgReference
Gear 1 used for pull test.Reference
2.7L gasoline 4-speed 2WDJune 15 - 20, 1953Link: Nebraska Tractor Test 496 fileReference
Belt fuel use (max)11.4 l/hourReference
Max pull1847 kgReference
2.7L tractor fuel 4-speed 2WDJune 16 - 26, 1953Link: Nebraska Tractor Test 497 fileReference
Belt fuel use (max)11.0 l/hourReference
Max pull1463 kgReference
Speeds
With 10-38 year tires.Reference
