Tractor · 1941Unverified
J.I. Case SO

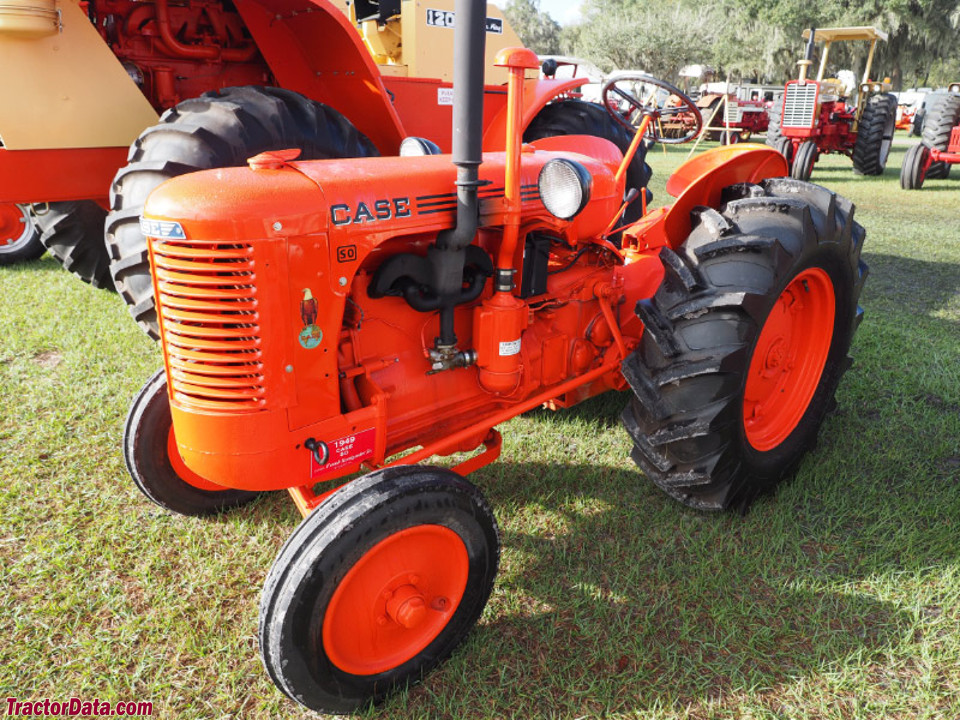

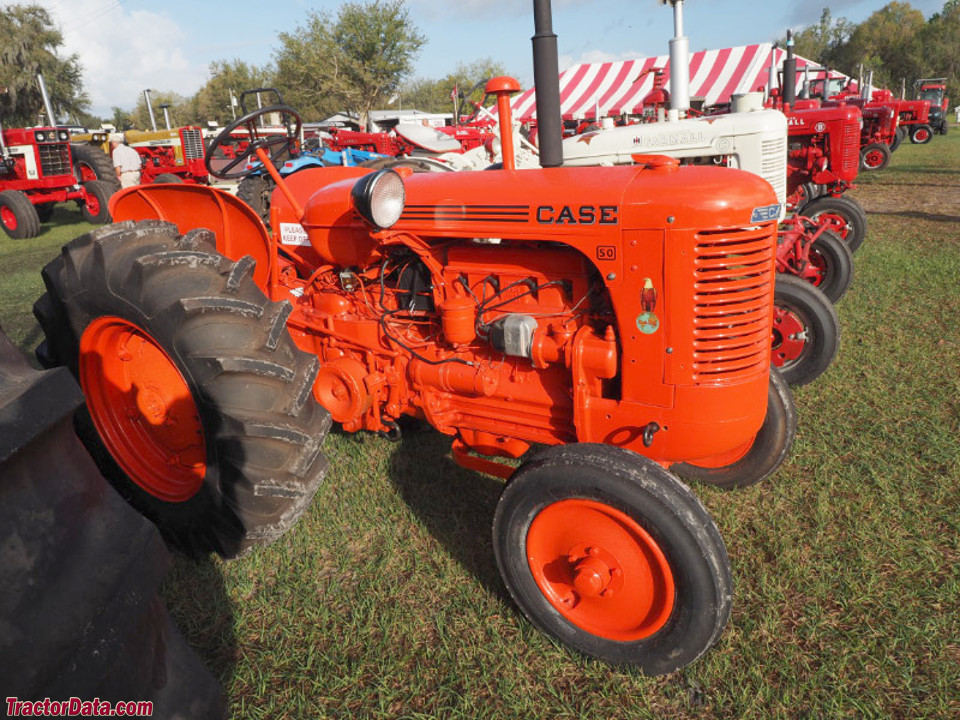

J.I. Case SO — Orchard/Vineyard tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Orchard/Vineyard tractorReference
Built in Racine, Wisconsin, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
SstandardReference
SCrow-cropReference
SC-3tricycle row-cropReference
SC-4fixed-front row-cropReference
SIindustrialReference
SOorchardReference
Engine
J.I. Case 2.5L 4-cyl gasolineReference
J.I. Case 2.7L 4-cyl gasolineReference
Fuel tank53.0 LReference
Aux. fuel4.7 LReference
Drawbar (claimed)11.9 kWReference
Belt (claimed)15.7 kWReference
Plows2 (14-inch)Reference
J.I. CaseReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke89 x 102 mmReference
Rated RPM1550Reference
liquid-cooled vertical I-headReference
Larger engine, used in 1953 (S/N 8027115)Reference
Displacement2.7 LReference
Bore/Stroke98 x 102 mmReference
Air cleaneroil bathReference
Compression6.25:1Reference
Rated RPM1600Reference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutchmechanical wet discReference
PTO & Hydraulics
Typeopen centerReference
Rear PTOcontinuousReference
Rear PTOliveReference
Clutchwet discReference
Rear PTO Type540Reference
Dimensions
Wheelbase167 cmReference
Length296 cmReference
Width154 cmReference
Height (hood)132 cmReference
Clearance (front axle)32 cmReference
Clearance (rear axle)49 cmReference
Rear tread120 cmReference
Capacities
Diameter23 cmReference
Width16 cmReference
RPM1078Reference
Speed792.48 meters/minReference
Speeds
With 12-26 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
