Tractor · 1940Unverified

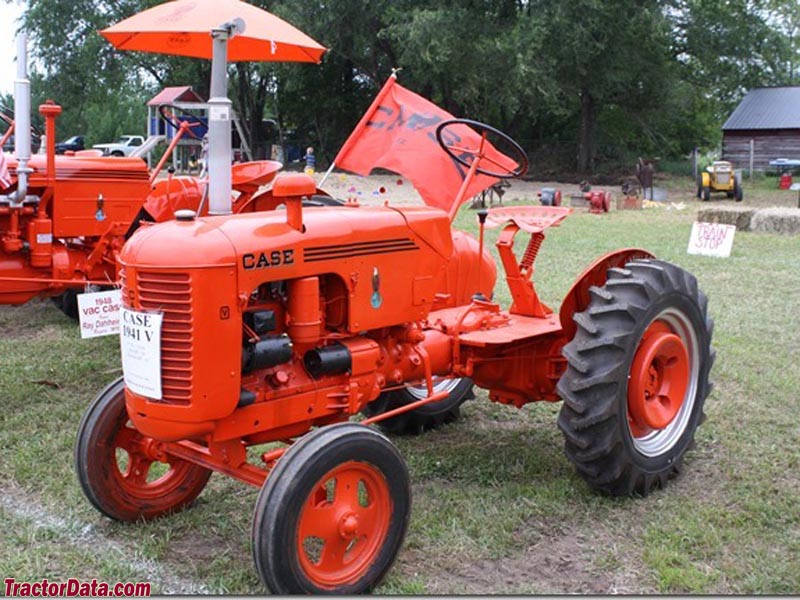

J.I. Case V

Name: J.I. Case V
Brand: J.I. Case

J.I. Case V — V Series · 24 hp. Reference specifications; pending source verification.

The J.I. Case V is a compact tractor with a rated output of 24 hp, produced between 1940 and 1942. It features a 4-cylinder petrol liquid-cooled engine and a 4-speed gearbox, driving through two-wheel drive. The listed weight is 1950 kg, with the tractor suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Weight

1950 kg

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

24 hp

Recorded weight

1950 kg

Transmissions

4-speed gear

Production years

1940-1942

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerJ.I. CaseReference

Standard-tread tractorReference

Built in Rock Island, Illinois, USAReference

Total built16028 (total)Reference

Total built2321 (V)Reference

Total built511 (VO)Reference

Total built734 (VI)Reference

Total built12462 (VC)Reference

Two-wheel driveReference

SteeringmanualReference

Open operator station.Reference

Variants

VstandardReference

VCrow-cropReference

VOorchardReference

VIindustrialReference

Engine

Continental 2.0L 4-cyl gasolineReference

Fuel tank37.9 LReference

Plows2Reference

ContinentalReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement2.0 LReference

Bore/Stroke76 x 111 mmReference

Air cleaneroil bathReference

Rated RPM1425Reference

Starterhand-crankReference

Starterelectric (optional)Reference

Starter volts6Reference

SparkplugAC 75Reference

Transmission

4-speed gearReference

TypegearReference

Gears4 forward and 1 reverseReference

PTO & Hydraulics

PTO (claimed)17.9 kWReference

Rear PTO Type540 (1.125)Reference

Dimensions

Weight1950 kgReference

V Serial Numbers

1940V4400001Reference

1941V4500001Reference

1942V4600001Reference

FAQ: How to read a serial number table.Reference

Capacities

Diameter26 cmReference

Width16 cmReference

RPM969Reference

Speed792.48 meters/minReference

Electrical

GroundpositiveReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
