Industrial Tractor · 1972Unverified

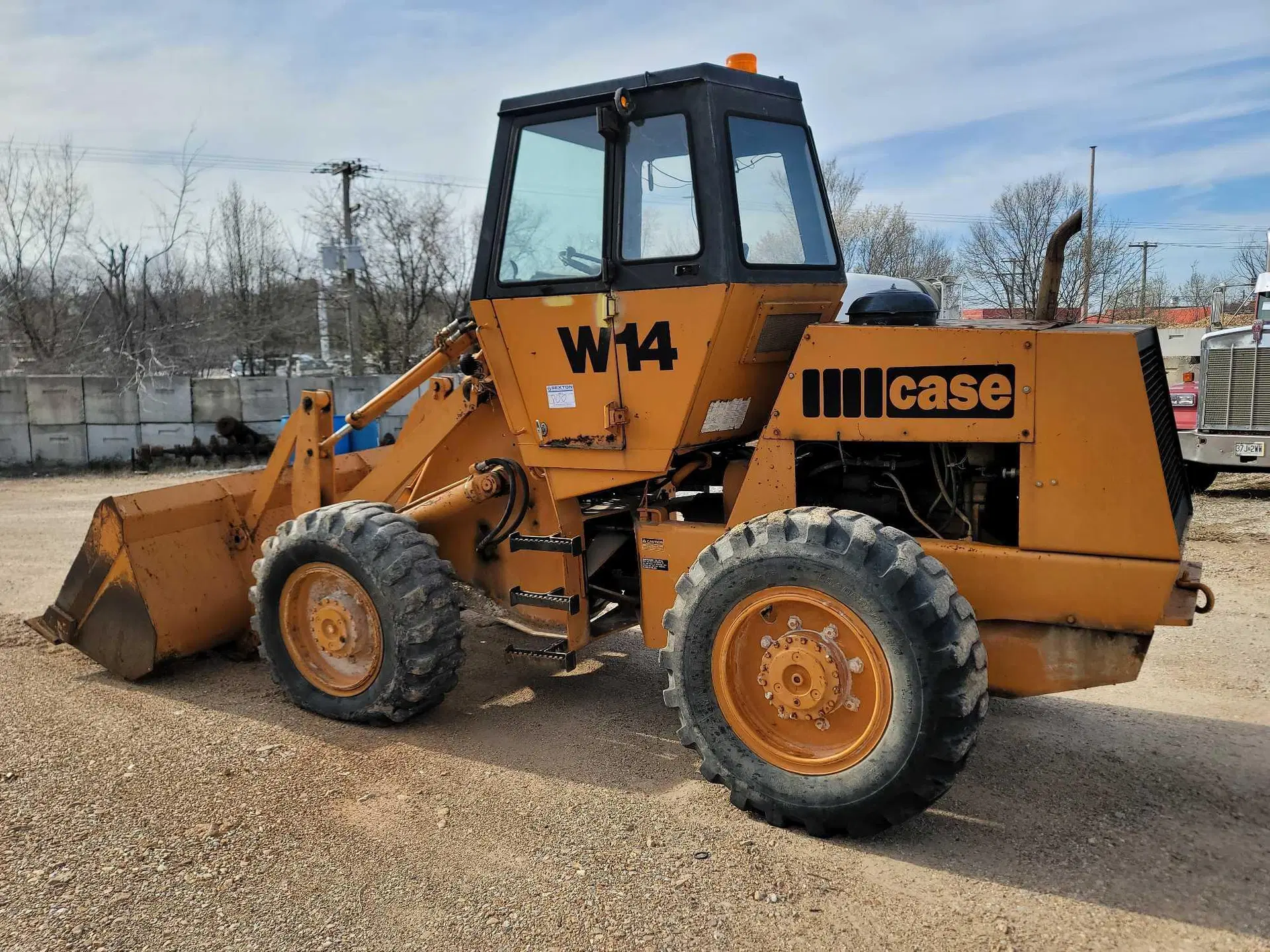

J.I. Case W-14
J.I. Case W-14 — Wheel Loader · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
6595 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Wheel LoaderReference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic drum brakesReference
Engine
J.I. Case 5.5L 4-cyl dieselReference
Engine (gross)69.4 kWReference
Engine (net)61.9 kWReference
J.I. Case A336BDReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement5.5 LReference
Bore/Stroke117 x 127 mmReference
Power (net)61.9 kWReference
Power (gross)69.4 kWReference
Air cleanerdryReference
Rated RPM2200Reference
Torque320.0 NmReference
Torque RPM1550Reference
StarterelectricReference
Starter volts24Reference
Oil capacity11.4 LReference
Coolant capacity26.5 LReference
Transmission
4-speed power shiftReference
Typepower shiftReference
Gears4 forward and 2 reverseReference
Capacities
Fuel143.8 LReference
PTO & Hydraulics
Hydraulic system79.5 LReference
Typeopen centerReference
Capacity79.5 LReference
Total flow128.7 lpmReference
Dimensions
Wheelbase254 cmReference
Weight6595 kgReference
Front tire15.5x25Reference
Rear tire15.5x25Reference
Industrial front15.5x25Reference
Industrial rear15.5x25Reference
Industrial front13.00x24Reference
Industrial front16.9x24Reference
Industrial rear13.00x24Reference
Industrial rear16.9x24Reference
Length558 cmReference
Height (steering wheel)238 cmReference
Height (cab)311 cmReference
Operating weight6595 kgReference
Front tread172 cmReference
Rear tread172 cmReference
J.I. Case W-14 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
