Tractor · Unverified

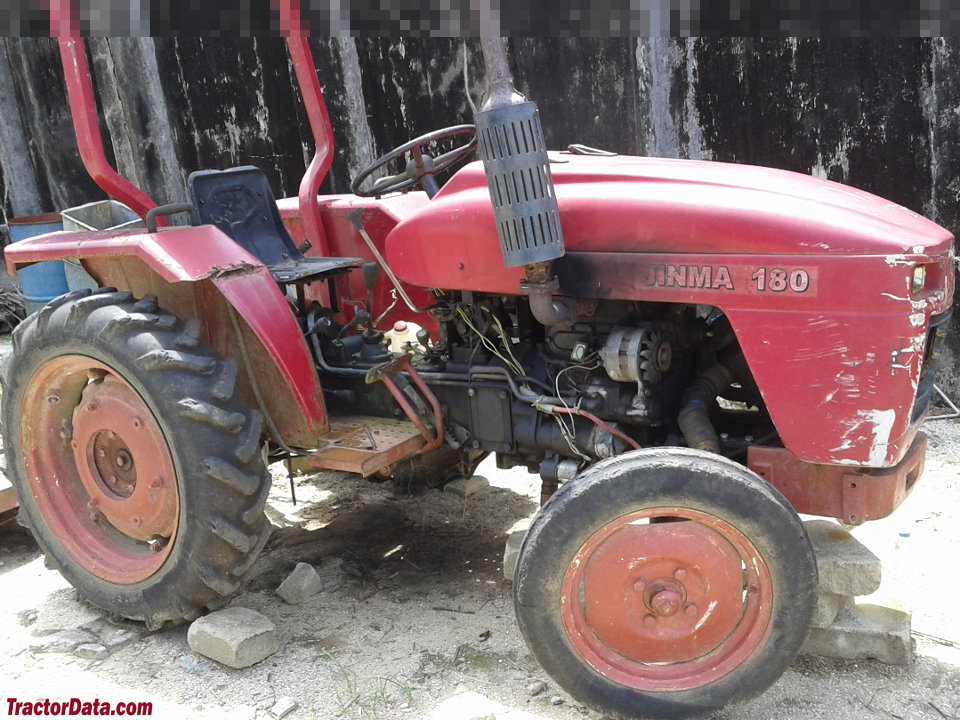

Jinma JM-180
Jinma JM-180 · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
970 kg
Hover a source tag to verify
Overview
ManufacturerJinmaReference
Built in Yancheng City, ChinaReference
Engine
Jinma 2-cyl dieselReference
Engine13.4 kWReference
JinmaReference
dieselReference
2-cylinderReference
Power13.4 kWReference
Rated RPM2200Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear lift336 kgReference
Rear PTOliveReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase149 cmReference
Weight970 kgReference
Front tire4.00-16Reference
Rear tire8.3-24Reference
Ag front4.00-16Reference
Ag rear8.3-24Reference
Length254 cmReference
Width123 cmReference
Height128 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
